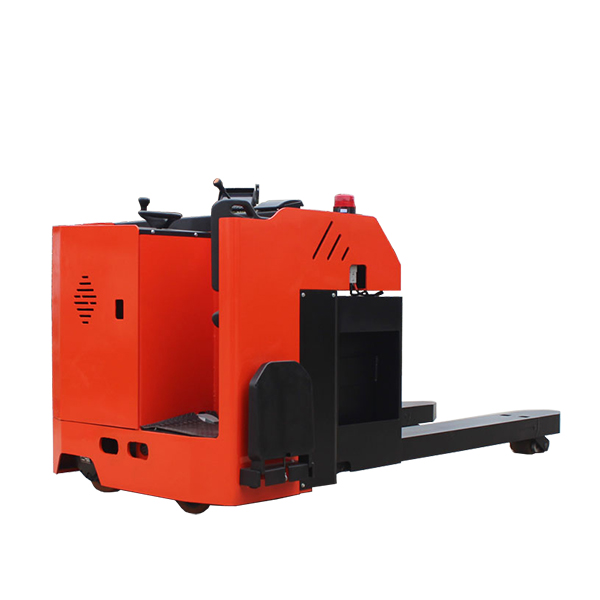

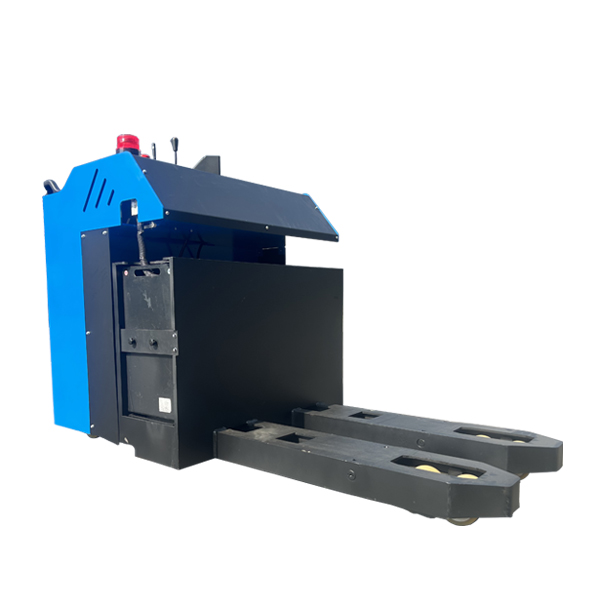

5.0-12.0 Ton Electric Pallet Truck ETN Series

Side-Standing Electric Pallet Truck is a professional logistics equipment specially designed for heavy-duty handling tasks. The operator stands sideways. Its frame is made of high-strength steel and has undergone special welding and strengthening processes, endowing it with super-strong load-bearing stability. It is widely used in the iron and steel metallurgy industry, machinery manufacturing factories, port and dock operations, and building materials logistics.

  • Model No :

    ETN50/60/70/80/100/120
  • Load Capacity :

    5000-12000kg
  • Lift Height :

    200-300mm
  • Drive Type :

    AC
  • Battery :

    Lead-acid/Lithium
  • MOQ :

    1
  • Lead Time :

    15-20 Days

5.0-12.0 Ton Electric Pallet Truck
Large Capacity Warehouse Pallet Truck is usually equipped with large-capacity lead-acid storage batteries or high-performance lithium battery packs. It plays a pivotal role in scenarios where high demands are placed on handling strength, stability and operational flexibility. Its maximum load-bearing capacity can reach up to 15 tons. Euro Electric Powered Pallet Truck uses electricity as its driving energy source. The operator stands sideways in the exclusive operating area on one side of the vehicle and controls the vehicle's operation and cargo loading and unloading actions through carefully arranged control devices. With its powerful load-bearing capacity and unique design, it efficiently accomplishes the short-distance transfer of various heavy objects. Lithium Battery Pallet Lifter Truck features convenient operation, super-strong load-bearing stability, flexible maneuverability and excellent safety. Through special modifications of Electric Heavy Pallet Truck, for example, with custom high-temperature protection, it can operate in high-temperature working environments like steel and casting industries; with explosion-proof modification, it can be applied to flammable and explosive places such as those in the petroleum, chemical and natural gas industries; with special cargo-adapted attachments, it can handle special cargoes such such as extra-long and overweight pipes and irregularly shaped castings.


Details & Advantages

Side-Standing Heavy Duty Pallet Truck

10 Ton Li-ion Powered Pallet Jack

Operational Comfort

1) Side-standing Design: It conforms to ergonomic principles. Standing sideways enables the operator to observe the handling path and the surrounding environment more easily, with a broader field of vision, which facilitates accurate vehicle control and timely response to various situations.

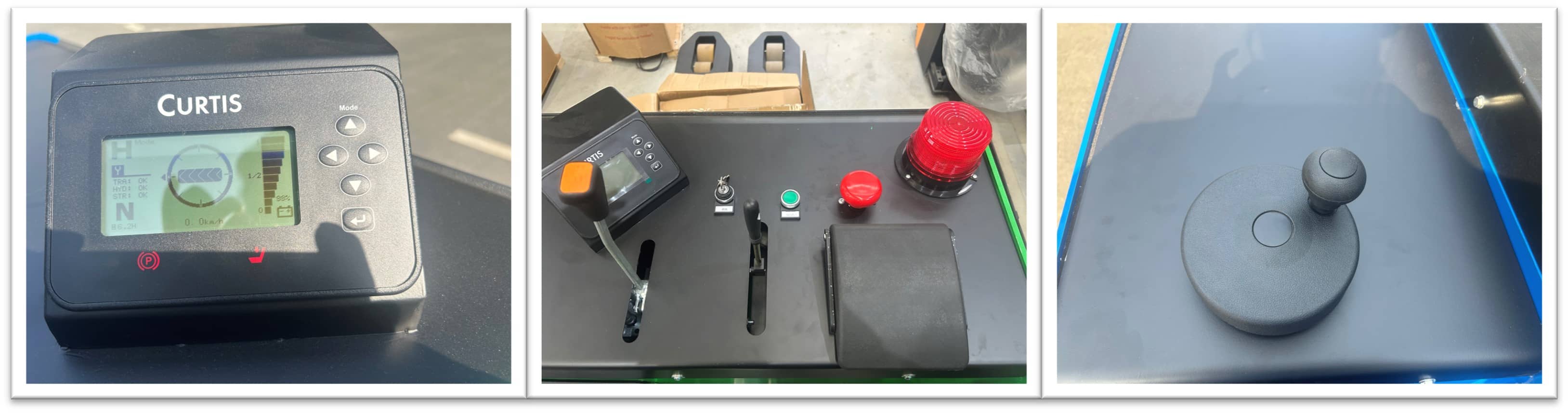

2) Humanized Control Handle: The control handle is designed according to ergonomic principles, with a reasonable layout of various function buttons. Function keys such as forward, backward, acceleration, deceleration, and cargo lifting and lowering are all within easy reach of the operator's fingers. The operation is easy and convenient, further enhancing the operational comfort and convenience.

Power and Performance

3) Efficient Electric Drive: Advanced electric drive technology is adopted, with stable power output and smooth acceleration and deceleration processes. The electric drive system responds quickly and can start, stop, and adjust the speed rapidly according to the operator's instructions.

4) High-quality Battery Configuration: It is equipped with a large-capacity lead-acid battery or a lithium battery, providing a long endurance capacity and meeting the requirements of continuous operation for a long time.

5) AC Drive Technology: The AC drive system has higher efficiency and reliability, which can effectively reduce energy consumption. In addition, the AC drive system can provide more precise speed control and torque output, making the vehicle more stable and accurate during the handling process.

Safety Performance

6) Multiple Safety Protections: A variety of safety protection devices are designed, such as emergency stop buttons and overload protection systems.

7) Broad Vision: The side-standing design gives the operator a good view, enabling them to detect surrounding obstacles, people, or other potential hazards in time and take preemptive measures to avoid them, reducing the risks of collisions and misoperations.


FAQ

1) What is terms of payment?

T/T, 30% deposit, 70% balance paid before shipment.

2) What is the inspection method?

Product photos, packaging, videos, and any other inspection methods required by customers.

3) How is the product packaged?

Naked, packaging film, wooden box, iron frame, and other required packaging methods.

4) How long is the warranty period?

18 months. Spare parts are provided free of charge during the warranty period.

Operation Video


Technical Parameter

Model   ETN50 ETN60 ETN70 ETN80 ETN100 ETN120
Power Type   Electric Electric Electric Electric Electric Electric
Operation Type   Stand-on Stand-on Stand-on Stand-on Stand-on Stand-on
Rated Capacity kg 5000 6000 7000 8000 10000 12000
Load Center  mm 600 600 600 600 600 600
Wheelbase mm 1785 1940 1990 1990 1850 1850
Wieght kg 2100 2150 2380 2430 2700 2800
Size Of Fork LxWxT mm 1200x215x70 1200x215x70 1200x270x120 1200x270x120 1200x280x150 1200x340x150
Fork Outter Width mm 720 720 720 720 840 840
Tire Type   PU PU PU PU PU PU
Size Of Tire Driving Tire 1 φ254x102 φ382x142 φ382x142 φ382x142 φ382x142 φ382x142
Bearing Tire 4 φ80x110 φ80x110 φ100x120 φ140x120 φ140x120 φ170x110
Balance Tire 2 φ150x50 φ180x76 φ180x76 φ180x76 φ210x85 φ210x85
Overal Length mm 2215 2370 2450 2450 2300 2300
Overal Width mm 1090 1090 1260 1260 1260 1260
Lifting Height mm 225 240 270 270 270 300
Lowered Height mm 105 120 150 150 150 180
Turning Radius mm 2020 2190 2250 2250 2120 2120
Aisle Width:1000x1200 Across Fork mm 2765 2990 3050 3050 2900 2900
Aisle Width:800x1200 Across Fork mm 2950 3150 3250 3250 3080 3080
Speed Travel Load Km/h 4 4 4 4 3 3
Without load Km/h 5 5 5 5 4 4
Lift Load mm/s 40 45 45 45 30 30
Without load mm/s 45 50 50 50 35 35
Fall Load mm/s 45 50 50 50 45 45
Without load mm/s 35 35 40 40 35 35
Max.gradeability Load/Without Load % 5/8 5/8 4/6 4/6 2/3 2/3
Service Brake   Electromagnetic Electromagnetic Electromagnetic Electromagnetic Electromagnetic Electromagnetic
Motor Drive Motor, 60 Minute Rating kw 3 4.5 6.5 6.5 8 8
Lift Motor, Rating At S315% kw 3 6.3 6.3 6.3 7.5 8.6
Battery Type   Lead-acid Lead-acid Lead-acid Lead-acid Lead-acid Lead-acid
Battery Capacity v/ah 24/300 48/300 48/300 48/400 48/400 48/400
Drive Control Type   AC AC AC AC AC AC
Steering Type   Electric(EPS) Electric(EPS) Electric(EPS) Electric(EPS) Electric(EPS) Electric(EPS)
