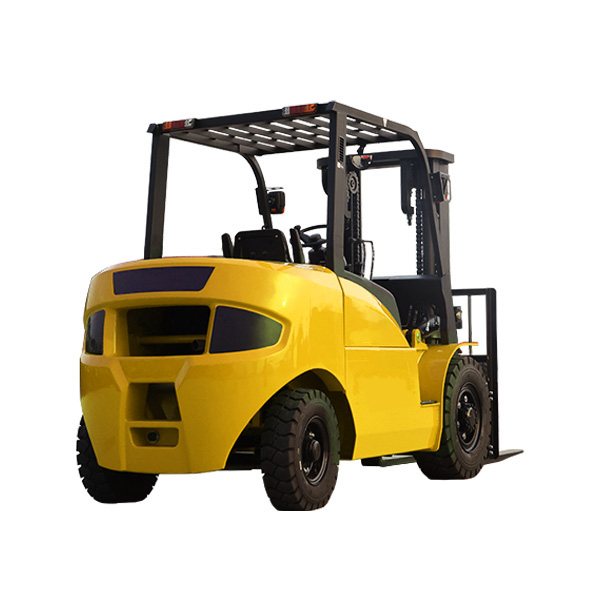

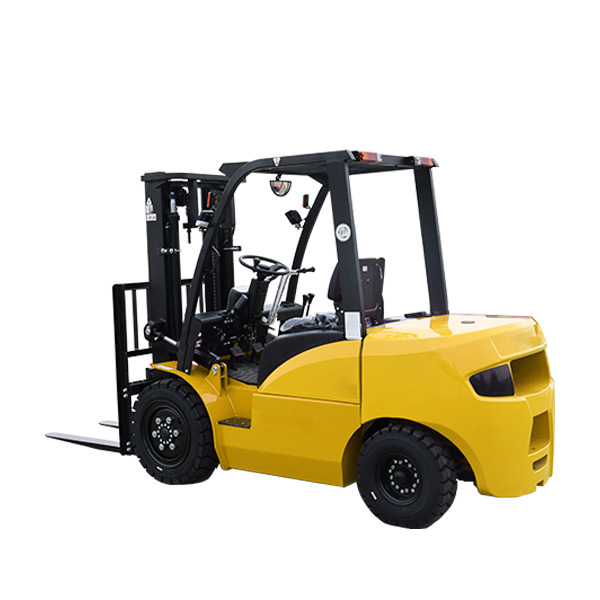

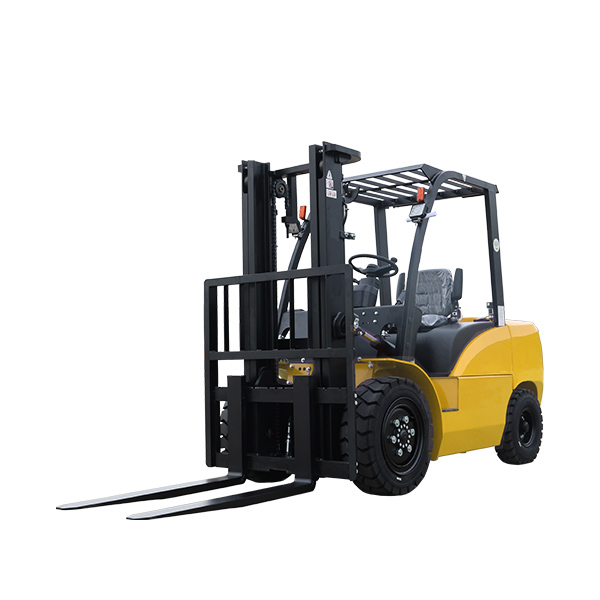

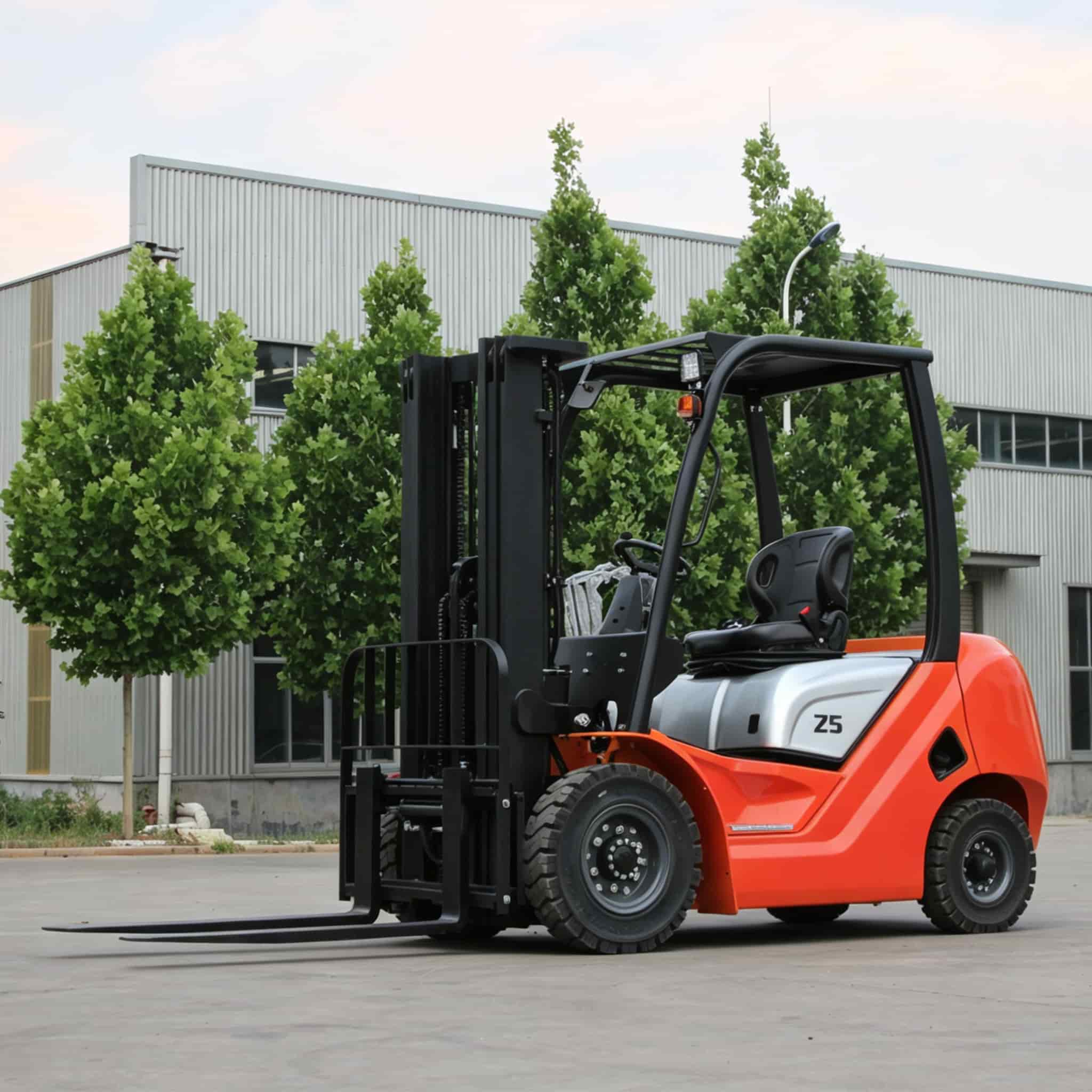

Small Diesel Forklift Trucks (Internal Combustion Forklift) not only have certain heavy-duty handling capabilities, enabling them to handle the loading, unloading and stacking requirements of most conventional materials, but also are relatively flexible. They are suitable for industrial sites and logistics warehouses of various scales, as well as some outdoor work sites that require forklift maneuverability.
Model No :
FD20/25/30/35Load Capacity :
2000-3500kgLift Height :
3000-8000mmTransmission :
Mechanical/Hydraulic(automatic)Engine :
Xinchai/Isuzu/MitsubishiOptional :
Customized AttachmentsMOQ :
1Lead Time :

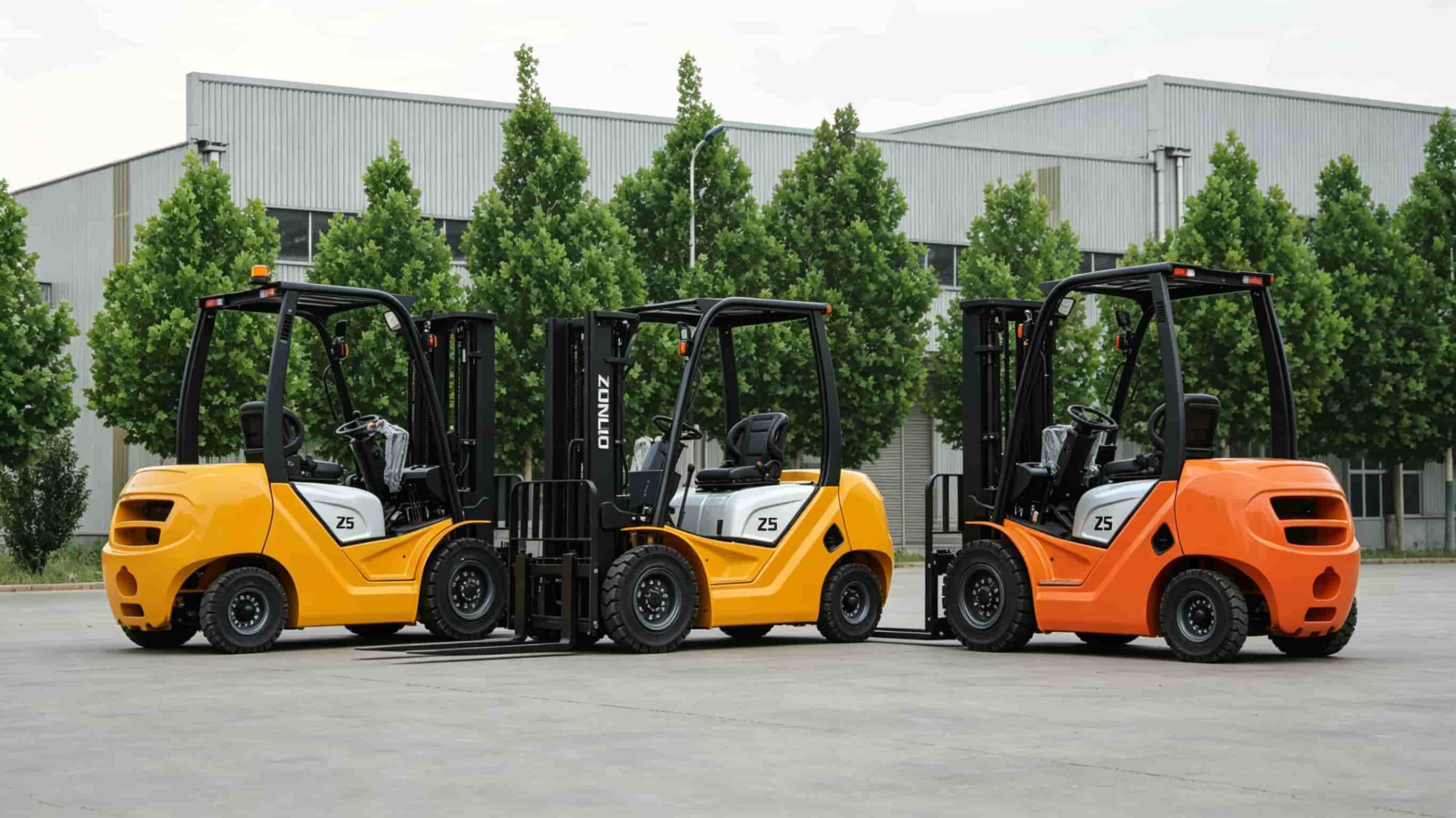

7-15 Days2.0-3.5 Ton Diesel Forklift Truck
Compact Diesel Forklift has the characteristics of strong power, a sturdy structure, and flexible operation. Its lifting height generally can reach 3 to 6 meters, and the lifting speed can be adjusted in multiple levels. It lifts steadily when fully loaded, taking into account both efficiency and safety. Diesel Forklift Truck is equipped with an advanced diesel engine and an electronically controlled fuel injection system, which can precisely control the fuel supply. Combined with the optimized power transmission route, the forklift has a relatively low fuel consumption under comprehensive working conditions. Diesel Powered Forklift adopts a dual braking system including service braking and parking braking. It has a rapid response and a large braking torque, ensuring that the forklift can brake quickly and smoothly in situations such as going downhill when fully loaded and making emergency stops, thus guaranteeing the safety of the operation. Diesel Counterbalance Forklift is widely used in various fields such as manufacturing factories, logistics warehouses, construction sites, and port terminals. At the same time, various customization services can be provided according to customers' special needs, such as customization of explosion-proof models and models for ultra-low temperature environments. Exclusive attachments can also be customized, such as paper roll clamps for handling paper rolls, drum clamps for handling liquid-filled drums, rotating forks, etc., to expand the operational functions of the forklift.

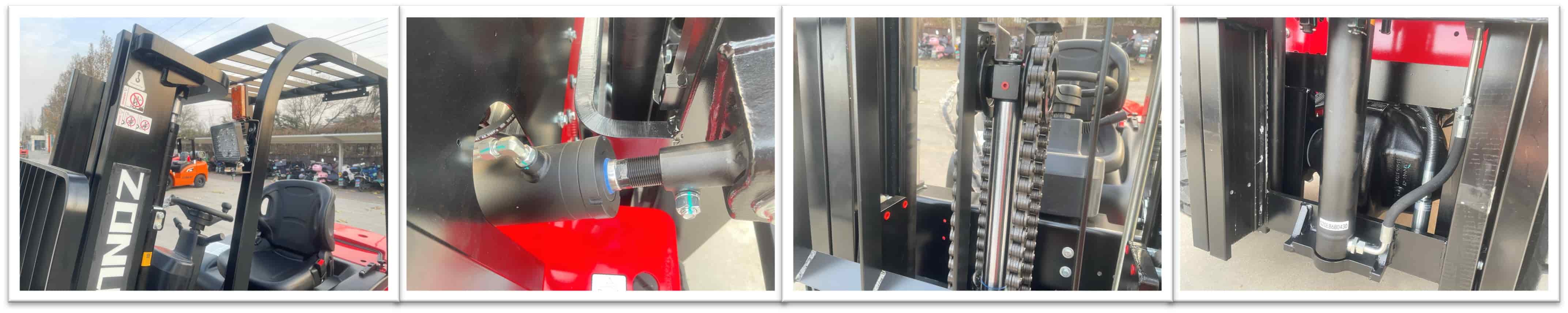

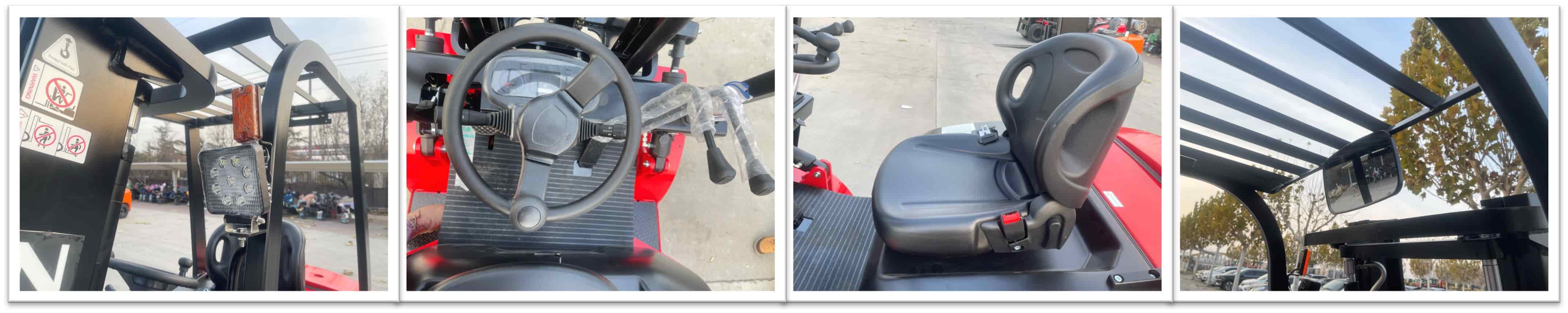

Deatails & Advantages
1) Strong power performance: Equipped with a high-performance diesel engine, it has a large output power and sufficient torque, and the power response is rapid. It can provide strong traction and lifting power, and can maintain good operating performance even when fully loaded, with smooth climbing and acceleration.

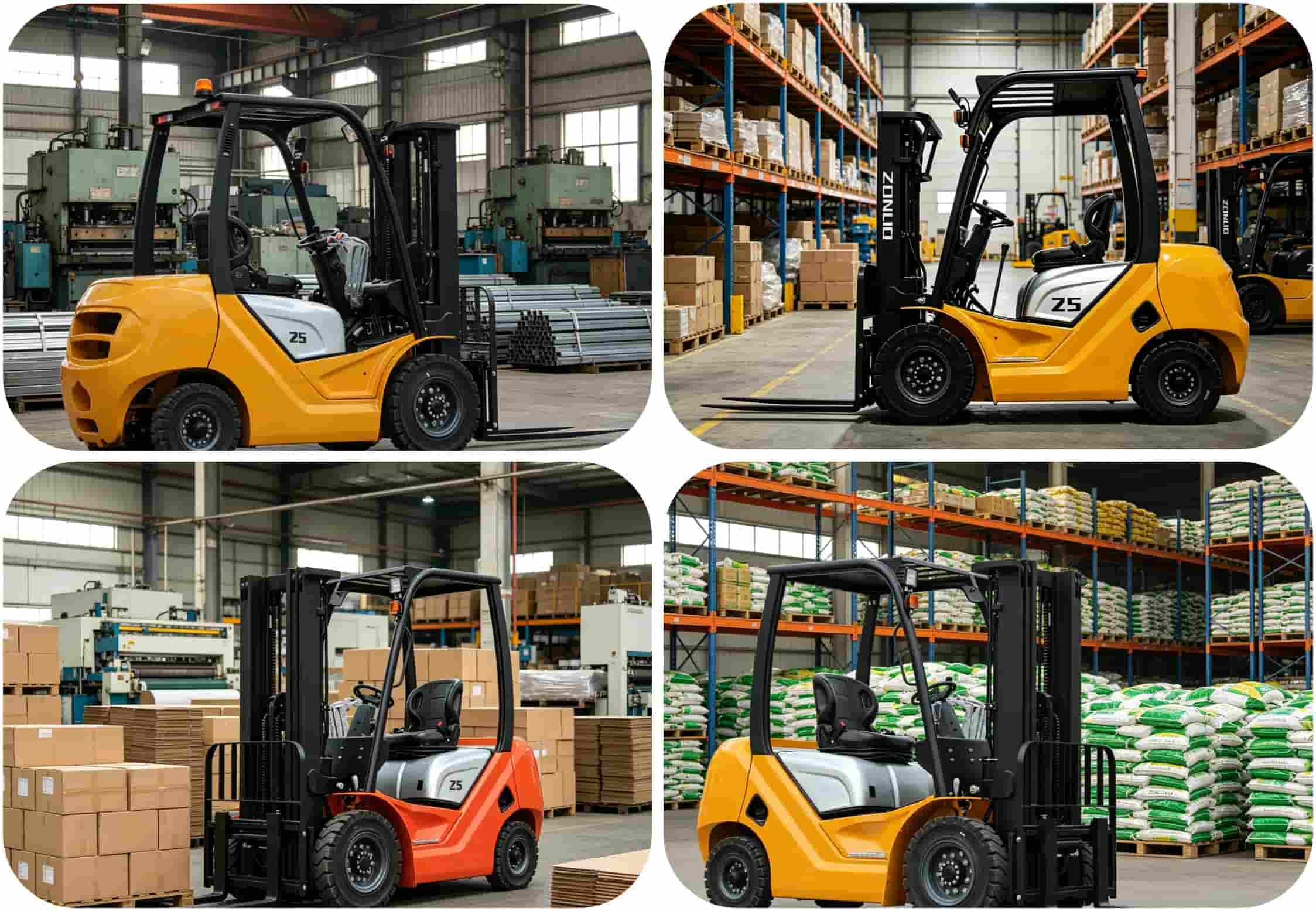

2) Wide range of applications: It is suitable for different working environments such as indoor warehouses and workshops, as well as outdoor construction sites and port terminals, and has a stronger adaptability to the working site. At the same time, it can adapt to the handling of different types of goods, such as palletized goods, drummed goods, and blocky goods.
3) High operating efficiency: The lifting speed can be adjusted in multiple levels, and an appropriate lifting speed can be selected according to the weight of the goods and operating requirements. When the vehicle is empty or lightly loaded, it can move quickly within the working site, reducing non-operating time and improving overall work efficiency.
4) Sturdy and durable structure: High-strength steel is used to manufacture key structural components such as the frame and the gantry, which can withstand large loads and impact forces. Components such as the drive axle and steering axle of the forklift are carefully designed and manufactured, and have good rigidity and durability.
5) Safe and reliable braking: It adopts a dual braking system of service braking and parking braking. The service braking is generally hydraulic braking, with a large braking torque and rapid response. The parking braking uses a mechanical or hydraulic handbrake, which can reliably fix the vehicle when the forklift is parked to prevent it from sliding or rolling.
6) Convenient maintenance: The daily maintenance work mainly includes checking the levels of engine oil, coolant, and hydraulic oil, and cleaning the air filter and fuel filter. The maintenance items are relatively simple to operate.
FAQ
1) What is terms of payment?
T/T, 30% deposit, 70% balance paid before shipment.
2) What is the inspection method?
Product photos, packaging, videos, and any other inspection methods required by customers.
3) How is the product packaged?
Naked, packaging film, wooden box, iron frame, and other required packaging methods.
4) How long is the warranty period?
18 months. Spare parts are provided free of charge during the warranty period.
Operation Video
Technical Parameter
Model | FD20 | FD25 | FD30 | FD35 | |||
Power Type | Diesel | Diesel | Diesel | Diesel | |||
Operation Type | Seated | Seated | Seated | Seated | |||
Rated Capacity | kg | 2000 | 2500 | 3000 | 3500 | ||
Load Center | mm | 500 | 500 | 500 | 500 | ||
Lifting Height | mm | 3000 | 3000 | 3000 | 3000 | ||
Free Lift Height | mm | 130 | 130 | 145 | 150 | ||
Size Of Fork | LxWxT | mm | 1070x122x40 | 1070x122x40 | 1070x122x45 | 1070x125x50 | |
Tire Type | Pneumatic | Pneumatic | Pneumatic | Pneumatic | |||
Size Of Tire | Front | 7.00-12-12PR | 7.00-12-12PR | 28x9-15-14PR | 28x9-15-14PR | ||
Rear | 6.00-9-10PR | 6.00-9-10PR | 6.50-10-10PR | 6.50-10-10PR | |||
Mast Tilt | Front/Rear | ° | 6/12 | 6/12 | 6/12 | 6/12 | |
Overal Length (Without Fork) | mm | 2500 | 2540 | 2750 | 2755 | ||
Overal Width | mm | 1165 | 1165 | 1225 | 1225 | ||
Mast Closed Height | mm | 2000 | 2000 | 2070 | 2180 | ||
Mast Extended Height | mm | 4000 | 4000 | 4100 | 4100 | ||
Overhead Guard Height | mm | 2070 | 2070 | 2150 | 2150 | ||
Turning Radius | mm | 2190 | 2240 | 2515 | 2515 | ||
Front/Rear Overhang | mm | 455/408 | 455/408 | 480/570 | 485/570 | ||
Minimum Right Angle Channel Width | mm | 2230 | 2280 | 2545 | 2545 | ||
Wheelbase | mm | 1600 | 1600 | 1760 | 1760 | ||
Wheel Distance | Front | mm | 970 | 970 | 1000 | 1000 | |
Rear | mm | 970 | 970 | 970 | 970 | ||
Min.Ground Clearance | mm | 115 | 115 | 130 | 130 | ||
Speed | Travel | Load | Km/h | 17 | 17 | 18 | 18 |
Without load | Km/h | 19.5 | 19.5 | 19.5 | 19.5 | ||
Lift | Load | mm/s | 570 | 570 | 450 | 380 | |
Without load | mm/s | 600 | 600 | 500 | 450 | ||
Fall | Load | mm/s | 550 | 550 | 500 | 460 | |
Without load | mm/s | 450 | 450 | 450 | 420 | ||
Max.traction | KN | 16 | 16.5 | 20 | 20 | ||
Max.gradeability | Load/Without Load | % | 15/20 | 15/20 | 15/20 | 15/20 | |
Weight | kg | 3320 | 3680 | 4230 | 4650 | ||
Battery | Voltage/Capacity | V/AH | 12/100 | 12/100 | 12/100 | 12/100 | |
Engine | Model | Xinchai4D27G31 | Xinchai4D27G31 | Xinchai4D27G31 | Xinchai4D27G31 | ||
Rated Power/Speed | kW/rpm | 36.8/2500 | 36.8/2500 | 36.8/2500 | 36.8/2500 | ||
Max.torque/Speed | N.m/rp | 157/1800 | 157/1800 | 157/1800 | 157/1800 | ||
Number Of Cylinders | 4 | 4 | 4 | 4 | |||
Displacement | 2.85 | 2.85 | 2.85 | 2.85 |
