Mini Electric Lithium Pallet Truck, equipped with a high-performance lithium battery and permanent magnet drive motor. It has a fast lifting speed and runs quietly and smoothly. It features the functions of creeping speed driving and upright driving. The design of the forks is optimized for double-faced pallets, making it convenient for access. It is widely used in supermarket warehouses, logistics centers, the back-office areas of shopping malls, and other places.
Model No :
ETA15/20Load Capacity :
1500-2000kgLift Height :
200mmDrive Type :
DCBattery :
Lead-acid/LithiumMOQ :
6Lead Time :
7-15 Days1.5-2.0 Ton Mini Li-ion Battery Electric Pallet Truck
Mini Electric Lithium Pallet Truck operates its hydraulic system through the electric system. When the operating handle sends out instructions, the controller controls the operation of the motor. The motor is connected to the drive wheel via a speed reducer. The controller regulates the speed and direction of the motor according to the instructions from the operating handle, thus enabling the vehicle to move forward, backward, turn, and perform other maneuvers. Li-ion Electric Walkie Pallet Jack features a compact body design with a small turning radius, allowing it to maneuver flexibly even in narrow shelf aisles. It is equipped with an intelligent speed control handle and an integrated intelligent management system, which can monitor the battery level in real-time, provide fault warnings, and switch the power mode with just one click. Meanwhile, Narrow Electric Powered Pallet Truck can be customized and upgraded. For example, pedals and armrests can be added, the brand of the controller can be upgraded, and the forks can be lengthened and thickened. It is truly an excellent assistant in the warehousing industry.

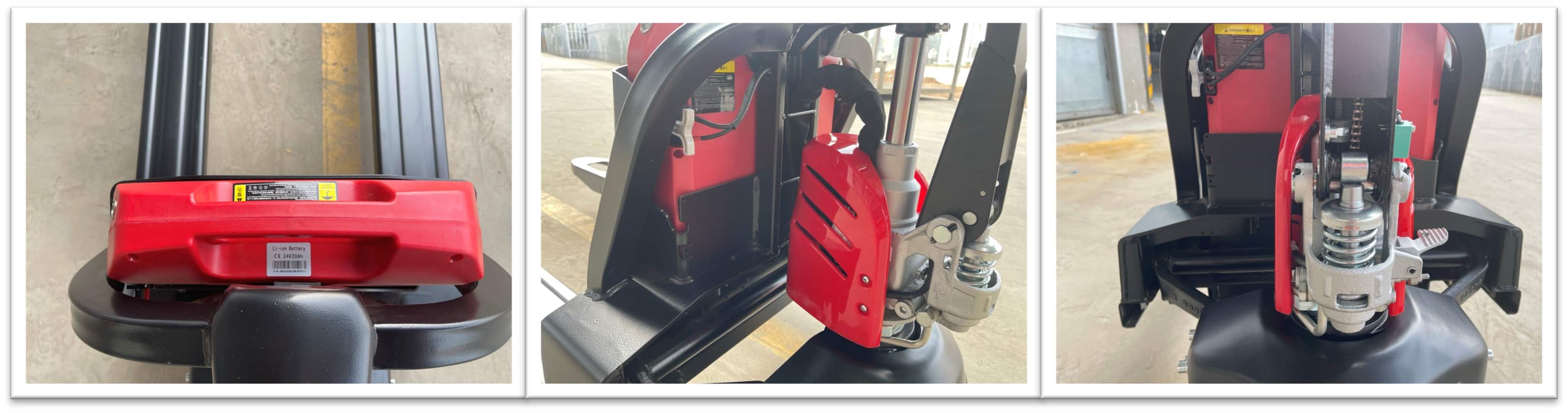

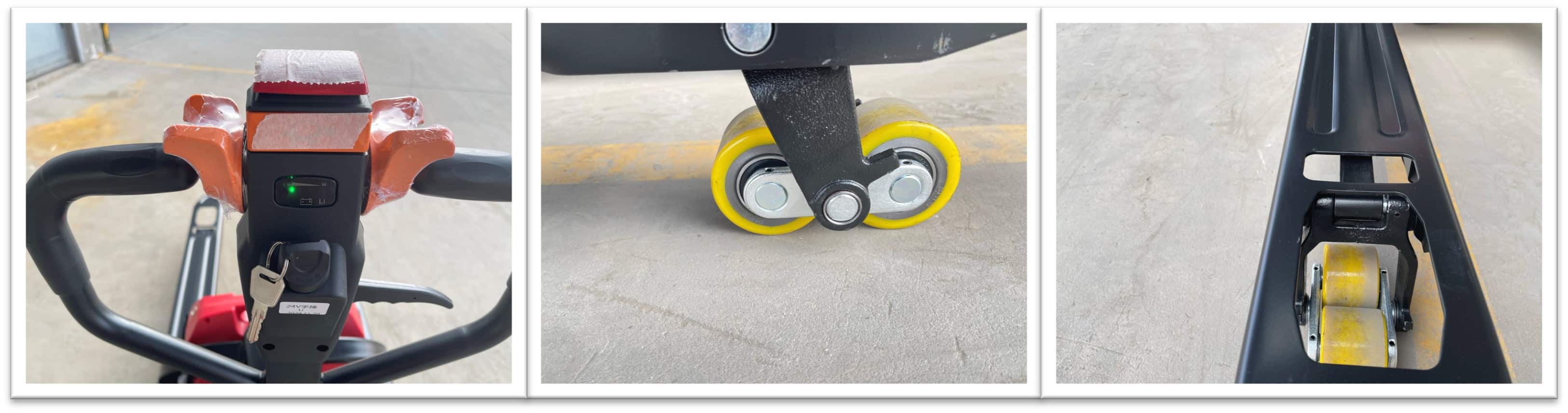

Details & Advantages
▶ Power and Battery Life
1) High-performance Lithium Battery: It adopts a high-energy-density lithium battery, which has a fast charging speed and a long battery life, and can be cycled more than 1,200 times.
2) Long Battery Life: It has an excellent battery life and supports a long continuous operation of 10 hours, which can meet the needs of high-intensity work.
▶ Operational Performance
3) Lightweight and Flexible: With a compact body design and a small turning radius, it can move flexibly even in a narrow space.
4) Low-noise Operation: It operates with a relatively low noise level, running quietly at a low decibel level, which reduces noise pollution.
5) Humanized Design: It is equipped with an intelligent speed control handle, etc., which greatly reduces operating fatigue. The integrated intelligent management system can monitor the battery level in real time and provide fault warnings.
▶ Safety Performance
6) Multiple Braking Protections: It has functions such as release braking, reverse braking, and emergency braking to ensure driving safety.
7) Anti-slip Function on Slopes: It can prevent the vehicle from accidentally sliding down on slopes, ensuring operational safety.
▶ Maintenance
8) Maintenance-free Battery: The lithium battery has a lifetime maintenance-free design, eliminating the need for maintenance work such as regularly adding electrolyte, which is required for lead-acid batteries.
FAQ
1) What is terms of payment?
T/T, 30% deposit, 70% balance paid before shipment.
2) What is the inspection method?
Product photos, packaging, videos, and any other inspection methods required by customers.
3) How is the product packaged?
Naked, packaging film, wooden box, iron frame, and other required packaging methods.
4) How long is the warranty period?
18 months. Spare parts are provided free of charge during the warranty period.
Operation Video
Technical Parameter
Model | ETA15 | ETA20 | |||
Power Type | Electric | Electric | |||
Operation Type | Walkie | Walkie | |||
Rated Capacity | kg | 1500 | 2000 | ||
Load Center | mm | 600 | 600 | ||
Front Overhang | mm | 945 | 945 | ||
Wheelbase | mm | 1192 | 1192 | ||
Wieght | kg | 120 | 130 | ||
Size Of Fork | LxWxT | mm | 1150x150x55 | 1150x150x55 | |
Fork Outter Width | mm | 550/685 | 550/685 | ||
Tire Type | PU | PU | |||
Size Of Tire | Driving Tire | 1 | φ210x70 | φ210x70 | |
Bearing Tire | 4 | φ80x70 | φ80x70 | ||
Balance Tire | 2 | φ50x30 | φ50x30 | ||
Tire Distance | Bearing Tire | mm | 400/535 | 400/535 | |
Overal Length | mm | 1550 | 1550 | ||
Overal Width | mm | 550/685 | 550/685 | ||
Max./Min.Handle Height | mm | 735/1155 | 735/1155 | ||
Lifting Height | mm | 200 | 200 | ||
Lowered Height | mm | 85 | 85 | ||
Turning Radius | mm | 1355 | 1355 | ||
Aisle Width:1000x1200 Across Fork | mm | 1760 | 1760 | ||
Aisle Width:800x1200 Across Fork | mm | 1810 | 1810 | ||
Min.Ground Clearance | mm | 30 | 30 | ||
Speed | Travel | Load | Km/h | 4 | 4 |
Without load | Km/h | 4.5 | 4.5 | ||
Max.gradeability | Load/Without Load | % | 6/15 | 6/15 | |
Service Brake | Electromagnetic | Electromagnetic | |||
Motor | Drive Motor, 60 Minute Rating | kw | 0.75 | 1.0 | |
Lift Motor, Rating At S315% | kw | 0.5 | 0.8 | ||
Battery Type | Lead-acid/Li-ion | Lead-acid/li-ion | |||
Battery Capacity | v/ah | 48/15 | 48/15 | ||
Drive Control Type | DC | DC | |||
Steering Type | Mechanical | Mechanical |
