1.0-2.0 Ton 3 Wheel Electric Forklift FEN Series

Three Wheel Electric Forklift (dual rear wheels), with its excellent maneuverability, stability, and environmental performance, has become an indispensable material handling equipment. Electric 3 Wheel Forklift is widely used in warehouse logistics, supermarket retail, production workshops, and indoor places. Various customization services can be provided according to different work requirements.

  • Model No :

    FEN10/12/15/16/20
  • Load Capacity :

    1000-2000kg
  • Lift Height :

    2000-8000mm
  • Drive Type :

    AC
  • Battery :

    Lead-acid/Lithium
  • Optional :

    Customized Attachments
  • MOQ :

    1
  • Lead Time :

    7-15 Days

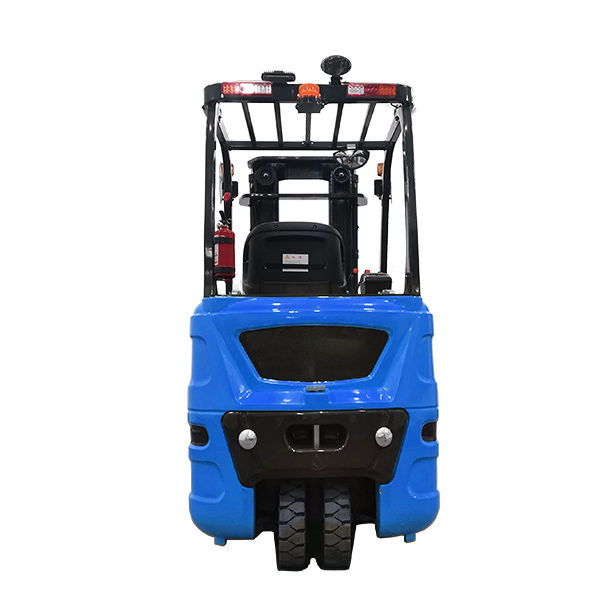

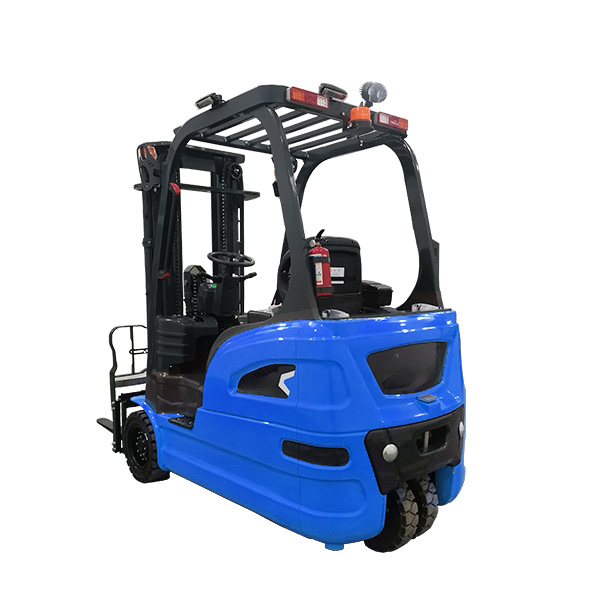

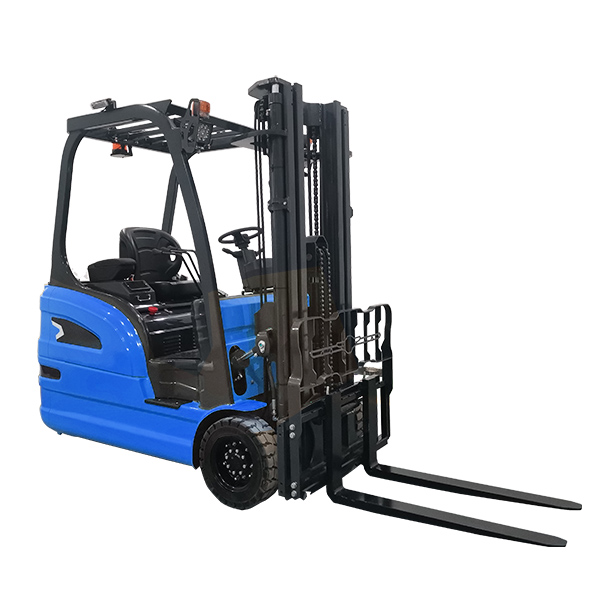

1.0-2.0 Ton 3 Wheel Electric Forklift Truck
Three Wheel Electric Forklift is a small-sized forklift that uses lead-acid batteries or lithium batteries as the power source and adopts a three-point support structure design. Operation of the vehicle are achieved through the AC electric drive system and lifting system. Due to its special structural design, 3 Wheel Electric Counterbalance Forklift has the characteristics of flexibility and mobility, energy conservation and environmental protection, simple operation, wide field of vision, and convenient maintenance. Electric 3 Wheel Forklift can be specially modified for cold storage environments with cold-resistant hydraulic fluids, electrical components and seals, as well as heating batteries and non-slip tires. For chemical warehouses, oil depots and other places with flammable and explosive gas or dust, explosion-proof motors, electrical components and special protective enclosures can be used. Three Wheel Electric Warehouse Forklift can be customized with special attachments, such as paper roll clamps, rotary clamps, side shifters, fork positioners and other special attachments, so as to improve the handling efficiency and adaptability of the forklift to specific goods.

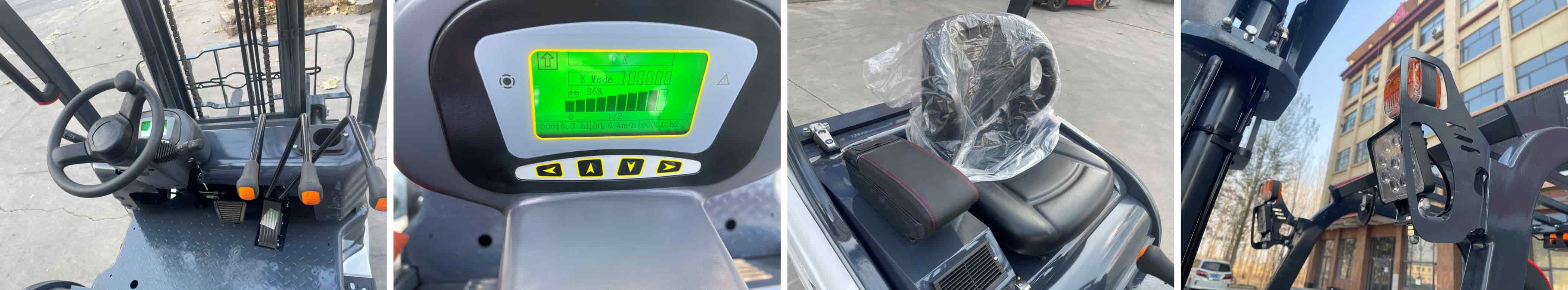

Details & Advantages

3 Wheel Electric Forklift With AC

Lithium Battery Electric Three Wheel Forklift

1) Compact and flexible: Adopting a three-point support structure, the vehicle body is compact, and the turning radius is small, usually only about 1.5 to 2 meters. It can flexibly turn and operate in narrow passages and limited spaces. It can even move freely in a small warehouse with a passage width of only 3 to 4 meters, which greatly improves the space utilization rate and operation efficiency.

2) Energy conservation and environmental protection: Driven by electricity, it will not produce exhaust emissions, causing no pollution to the environment. At the same time, the electric forklift has a relatively high energy conversion efficiency, which can effectively reduce energy consumption and result in relatively low operating costs.

3) Good stability: The three-point support structure forms a stable triangular support. While ensuring the flexibility of the forklift, it also ensures good stability during operation and when lifting goods. Even when the full-load lifting height reaches 3 to 5 meters, it can still maintain balance, effectively preventing rollover accidents.

4) Wide field of vision: The gantry is designed to be relatively compact and is positioned relatively forward, so the driver's field of vision is not overly blocked. The driver can clearly observe the forks, goods, and the surrounding environment of the operation area. During stacking operations, the driver can accurately place the goods in the designated position, reducing the risk of goods damage and misoperation.

5) Efficient drive system: It adopts an AC electric drive system, with a reasonable layout of the motor and high power transmission efficiency. This system can provide strong power output to meet the forklift's operation requirements under different working conditions. For example, the speed can reach 10 to 12 kilometers per hour when driving under full load, and it also has good acceleration and deceleration performance with a rapid response.

6) Convenient maintenance: With a modular structure design, each component is relatively independent, making it easy to disassemble and replace. During daily maintenance, technicians can quickly access each key component for inspection, repair, and maintenance, reducing maintenance costs and downtime.


FAQ

1) What is terms of payment?

T/T, 30% deposit, 70% balance paid before shipment.

2) What is the inspection method?

Product photos, packaging, videos, and any other inspection methods required by customers.

3) How is the product packaged?

Naked, packaging film, wooden box, iron frame, and other required packaging methods.

4) How long is the warranty period?

18 months. Spare parts are provided free of charge during the warranty period.

Operation Video


Technical Parameter

Model   FEN10/12 FEN15/16 FEN20
Power Type   Electric Electric Electric
Operation Type   Seated Seated Seated
Rated Capacity kg 1000/1200 1500/1600 2000
Load Center  mm 500 500 500
Lifting Height mm 3000 3000 3000
Free Lift Height mm 135 135 135
Size Of Fork LxWxT mm 1070x80x40 1070x100x40 1070x122x40
Fork Carriage Width mm 1040 1040 1040
Tire Type   Solid Tire Solid Tire Solid Tire
Size Of Tire Front 2(x=driven) 500-8 18X7-10 18X7-10
Rear 2 15X4.5-8 15X4.5-8 15X4.5-8
Mast Tilt Front/Rear ° 5/9 5/9 5/9
Overal Length (Without Fork) mm 1850 1950 2050
Overal Width mm 1100 1100 1100
Mast Closed Height mm 2120 2120 2120
Mast Extended Height mm 4100 4100 4100
Overhead Guard Height mm 2120 2050 2050
Turning Radius mm 1580 1680 1780
Front Overhang mm 355 355 355
Aisle Width:1000x1200 Across Fork mm 3070 3180 3280
Aisle Width:800x1200 Across Fork mm 3270 3380 3480
Wheelbase mm 1380 1480 1580
Wheel Distance Front mm 950 950 950
Rear mm 0 0 0
Min.Ground Clearance mm 100 100 80
Speed Travel Load Km/h 10 10 10
Without load Km/h 12 12 12
Lift  Load mm/s 240 240 240
Without load mm/s 300 300 300
Fall Load mm/s 400 400 400
Without load mm/s 360 360 360
Max.gradeability Load/Without Load % 14/15 14/15 14/15
Weight kg 1900 2500 3180
Service Brake   Hydraulic+Mechanical Hydraulic+Mechanical Hydraulic+Mechanical
Parking Brake   Mechanical Mechanical Mechanical
Motor Drive Motor,S2 60 Minutes kw 4 5 5.5
Lift Motor,S3 15% kw 4 5 5.5
Battery Type   Lead-acid Lead-acid Lead-acid
Battery Capacity v/ah 60/140 60/140 72/140
Drive Control Type   AC AC AC
Steering Type   Electric(EPS) Electric(EPS) Electric(EPS)
