4 Wheel Electric Forklift Truck caters to customers who require both flexibility in indoor and outdoor operations, and those with material handling needs in scenarios of refined and zoned operations. Suitable for various fields such as logistics and warehousing, manufacturing factories, and the commercial trade industry. It features flexibility, high efficiency, environmental friendliness, and intelligence.
Model No :
FE10/12/15/16/20/25Load Capacity :
1000-2500kgLift Height :
2000-8000mmDrive Type :
ACBattery :
Lead-acid/LithiumOptional :
Customized AttachmentsMOQ :
1Lead Time :
7-15 Days1.0-2.5 Ton Electric Forklift Truck
4 Wheel Electric Forklift adopts an advanced electronic control system to optimize the power output in real-time and intelligently distribute the current according to the load size. The steering system is sensitive and precise, adopting either full hydraulic steering or electric power-assisted steering. The steering wheel is easy to operate, and the steering angle can reach between 80° and 100°. The braking system of Electric Counterbalance Forklift is reliable. For service braking, disc brakes are mostly used, which have a large braking torque and a rapid response. For parking braking, electromagnetic braking is adopted to ensure the safety of the forklift when parked on a slope. The dual braking system provides all-round protection for the operation safety. 4 Wheel Electric Warehouse Forklift is equipped with multiple safety devices as standard, such as an overload protection system, an emergency power-off switch, an automatic speed-limiting device, and a vehicle body stability monitoring system. Electric Battery Powered Forklift is widely used in logistics warehouses for rapid sorting and shelving, in manufacturing workshops for the handling of instruments, and in the commercial retail industry for the handling and storage of goods and building materials. According to customers' needs, various customized solutions can be provided, such as customization of explosion-proof models, models for cold storage, and models for narrow aisles, etc.

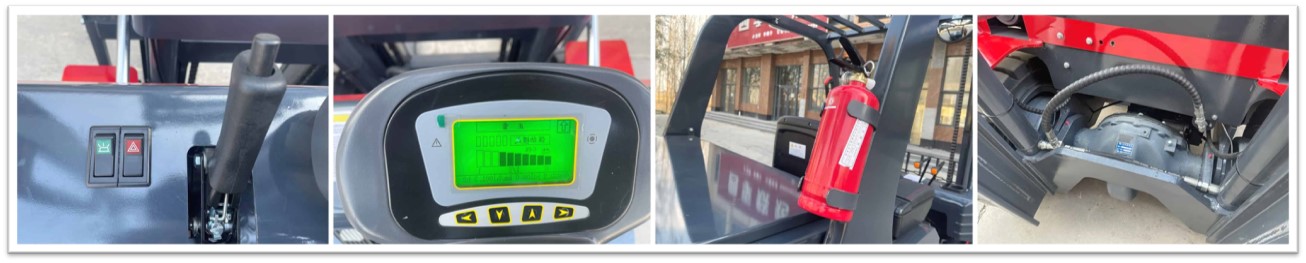

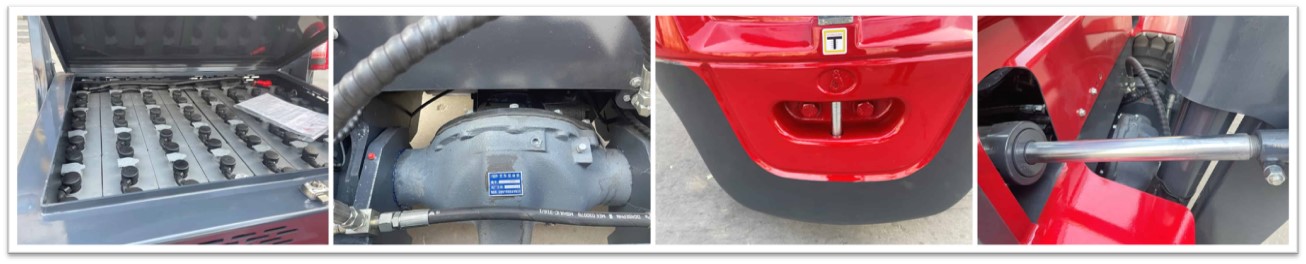

Details & Advantages
1) Environmental protection and energy conservation: It uses electricity as the power source, with a relatively high energy conversion efficiency. It almost produces no exhaust emissions, which can effectively reduce environmental pollution.
2) Convenient operation: Equipped with an advanced electronic control system, it can optimize the power output in real time and intelligently distribute the current according to the load size. It adopts full hydraulic steering or electric power-assisted steering, and the steering wheel is easy to operate.
3) Safety and reliability: The braking system is reliable. For service braking, disc brakes are mostly used, which have a large braking torque and a rapid response. For parking braking, electromagnetic braking is adopted to ensure the safety of the forklift when parked on a slope. Multiple safety devices are provided as standard, such as an overload protection system, an emergency power-off switch, an automatic speed-limiting device, a vehicle body stability monitoring system, etc.
4) Low maintenance cost: With a relatively simple structure, a small number of components, a low probability of failure, and less maintenance work required.
5) Wide application range: It can meet the handling needs of common goods in most industries such as logistics and warehousing, manufacturing, and commercial retail. Various customized solutions can also be provided according to customers' needs, such as customization of explosion-proof models, models for cold storage, models for narrow aisles, etc., further expanding its application scope.
FAQ
1) What is terms of payment?
T/T, 30% deposit, 70% balance paid before shipment.
2) What is the inspection method?
Product photos, packaging, videos, and any other inspection methods required by customers.
3) How is the product packaged?
Naked, packaging film, wooden box, iron frame, and other required packaging methods.
4) How long is the warranty period?
18 months. Spare parts are provided free of charge during the warranty period.
Operation Video
Technical Parameter
Model | FE10/12 | FE15/16 | FE20 | FE25 | |||
Power Type | Electric | Electric | Electric | Electric | |||
Operation Type | Seated | Seated | Seated | Seated | |||
Rated Capacity | kg | 1000/1200 | 1500/1600 | 2000 | 2500 | ||
Load Center | mm | 500 | 500 | 500 | 500 | ||
Lifting Height | mm | 3000 | 3000 | 3000 | 3000 | ||
Free Lift Height | mm | 145 | 145 | 145 | 145 | ||
Size Of Fork | LxWxT | mm | 1070x80x40 | 1070x100x40 | 1070x122x40 | 1070x122x40 | |
Fork Carriage Width | mm | 1040 | 1040 | 1040 | 1040 | ||
Tire Type | Solid Tire | Solid Tire | Solid Tire | Solid Tire | |||
Size Of Tire | Front | 2(x=driven) | 500-8 | 18x7-10 | 18x7-10 | 650-10 | |
Rear | 2 | 500-8 | 500-8 | 500-8 | 18x7-8 | ||
Mast Tilt | Front/Rear | ° | 5/9 | 5/9 | 5/9 | 5/9 | |
Overal Length (Without Fork) | mm | 2060 | 2150 | 2300 | 2485 | ||
Overal Width | mm | 1100 | 1100 | 1100 | 1120 | ||
Mast Closed Height | mm | 2130 | 2130 | 2130 | 2160 | ||
Mast Extended Height | mm | 4000 | 4000 | 4000 | 4100 | ||
Overhead Guard Height | mm | 2050 | 2050 | 2050 | 2100 | ||
Turning Radius | mm | 1780 | 1860 | 2230 | 2320 | ||
Front Overhang | mm | 290 | 300 | 300 | 350 | ||
Aisle Width:1000x1200 Across Fork | mm | 3280 | 3360 | 3800 | 3900 | ||
Aisle Width:800x1200 Across Fork | mm | 3480 | 3560 | 4000 | 4100 | ||
Wheelbase | mm | 1400 | 1500 | 1600 | 1680 | ||
Wheel Distance | Front | mm | 950 | 950 | 950 | 960 | |
Rear | mm | 920 | 920 | 950 | 960 | ||
Min.Ground Clearance | mm | 100 | 100 | 80 | 120 | ||
Speed | Travel | Load | Km/h | 10 | 10 | 10 | 10 |
Without load | Km/h | 12 | 12 | 12 | 12 | ||
Lift | Load | mm/s | 240 | 240 | 240 | 240 | |
Without load | mm/s | 300 | 300 | 300 | 300 | ||
Fall | Load | mm/s | 400 | 400 | 400 | 400 | |
Without load | mm/s | 360 | 360 | 360 | 360 | ||
Max.gradeability | Load/Without Load | % | 14/15 | 14/15 | 14/15 | 14/15 | |
Weight | kg | 1700 | 2200 | 2850 | 2850 | ||
Service Brake | Hydraulic+Mechanical | Hydraulic+Mechanical | Hydraulic+Mechanical | Hydraulic+Mechanical | |||
Parking Brake | Mechanical | Mechanical | Mechanical | Mechanical | |||
Motor | Drive Motor,S2 60 Minutes | kw | 4 | 5 | 5.5 | 7.5 | |
Lift Motor,S3 15% | kw | 4 | 5 | 5.5 | 8 | ||
Battery Type | Lead-acid | Lead-acid | Lead-acid | Lead-acid | |||
Battery Capacity | v/ah | 60/140 | 60/140 | 72/140 | 60/260 | ||
Drive Control Type | AC | AC | AC | AC | |||
Steering Type | Electric(EPS) | Electric(EPS) | Electric(EPS) | Electric(EPS) |
