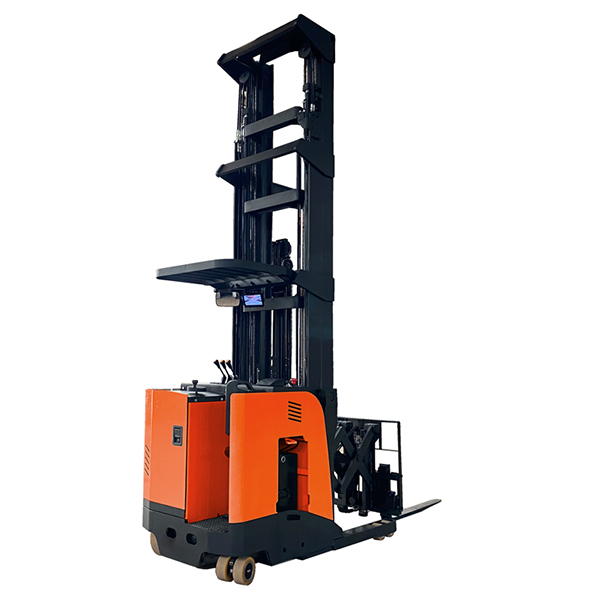

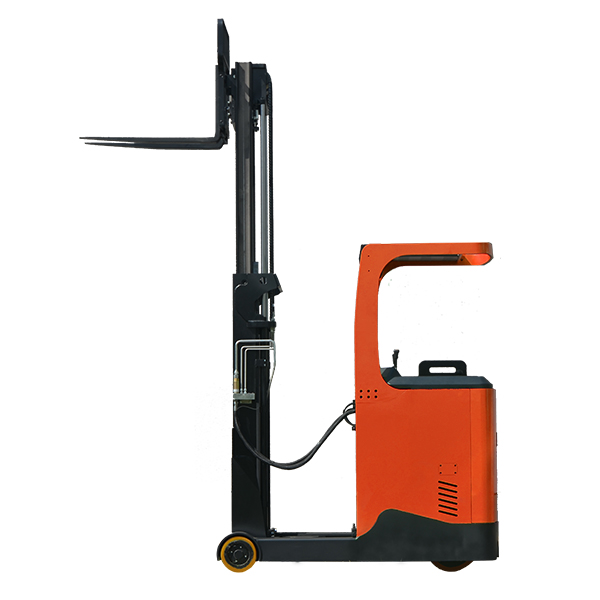

1.5-2.0 Ton Double Scissor Electric Reach Truck ERS Series

Double Deep Electric Reach Truck moves goods forward and backward through a scissor fork - type telescopic mechanism, integrating the advantages of counterbalance stackers and straddle stackers. It is equipped with an AC drive system, an advanced Curtis controller, a high - stiffness mast, and a high - strength scissor fork structure, boasting excellent performance. As a result, it is widely used in various storage workshops.

  • Model No :

    ERS15/20
  • Load Capacity :

    1500-2000kg
  • Lift Height :

    3000-11000mm
  • Drive Type :

    AC
  • Battery :

    Lead-acid/Lithium
  • MOQ :

    1
  • Lead Time :

    20-25 Days

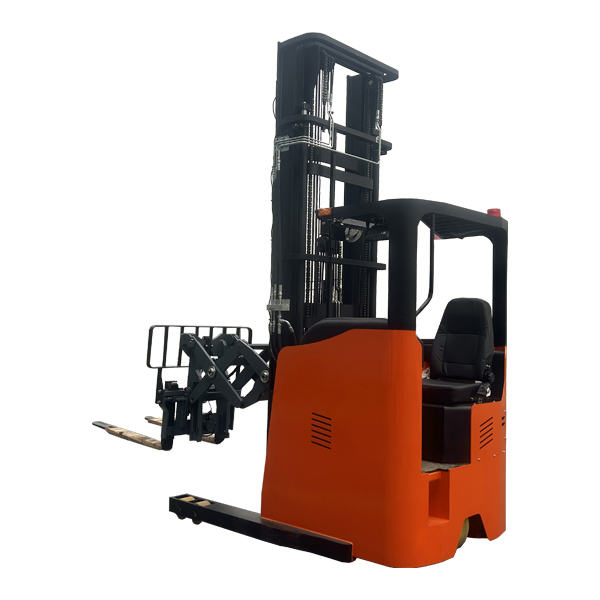

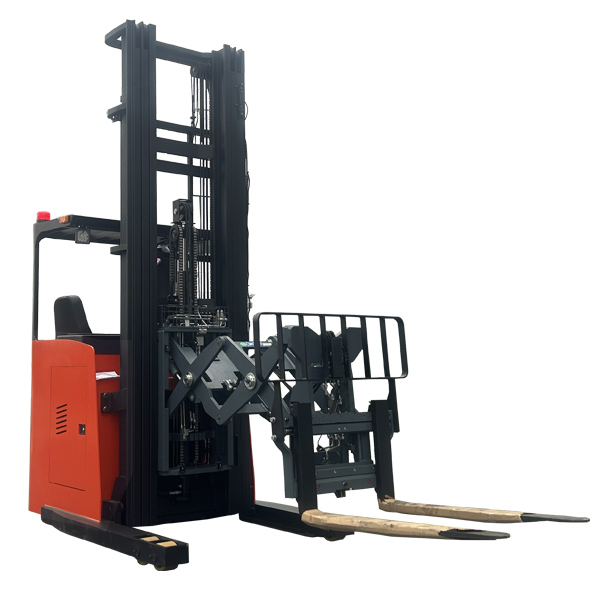

1.5-2.0 Ton Double Scissor Electric Reach Truck
Single Deep Lithium Battery Reach Truck is a kind of storage forklift, which is divided into two types: single scissor fork and double scissor fork. When the forks of Reach Stacker Truck Double Deep are retracted, the vehicle body is compact and can operate flexibly in narrow passages; when the forks are extended, it can handle non-standard pallets, enclosed pallets and enclosed shelves just like a counterbalance stacker. The standard operating console of Warehouse Power Reach Truck Forklift is designed ergonomically, providing a comfortable operation experience. With the design of shock-absorbing pedals, it can relieve driving fatigue. High Reach Scissor Lift Truck is equipped with a variety of safety devices, such as the automatic reduction of the vehicle speed when the forks are lifted to 500mm, the automatic reduction of the vehicle speed as the steering angle increases, intelligent buffering during descent, and anti-slip protection on ramps. It plays an irreplaceable role in warehouse storage, logistics distribution centers and production workshops.According to the actual needs of customers, different rated load capacities and maximum lifting heights can be customized. To adapt to goods of different shapes, sizes and weights, various special attachments can be customized, such as clamp grippers, rotating forks, side-shifting forks, etc. According to customers' requirements for the vehicle's driving speed and operation time, battery packs of different capacities and performances can be customized, and the electrical control system can be optimized.

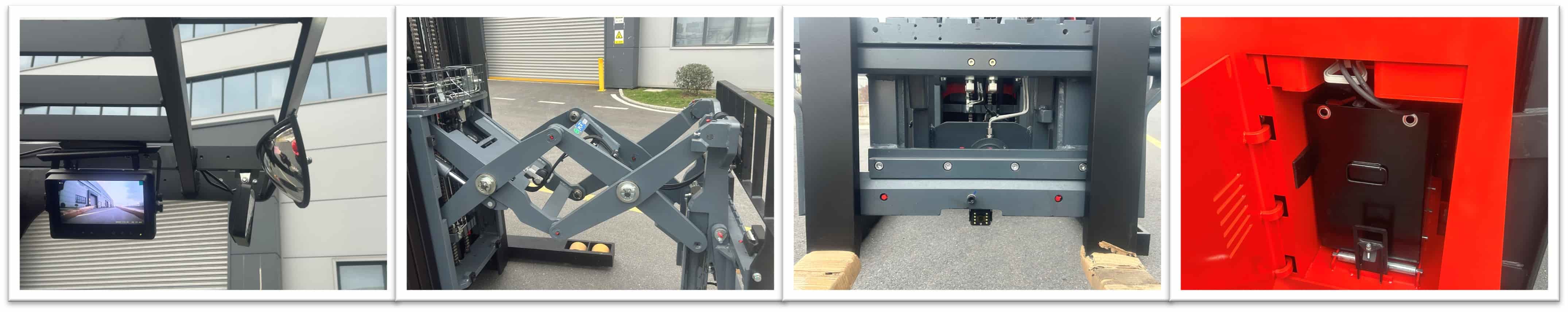

Details & Advantages

Single Deep Reach Truck 2 Ton

Very Narrow Electric Power Reach Truck

1) Body Layout and Operation Design: Adopting a compact body design, the scissor fork mechanism enables the body to have a relatively small overall size when the forks are retracted. This allows the vehicle to move and steer freely in narrow passages. The operation handle and pedals are reasonably arranged, making the operation convenient and reducing the driver's labor intensity.

2) Working Device Design: With a unique scissor fork-type telescopic mechanism design, it can achieve fast and smooth forward and backward movement of the forks, and the telescopic stroke is relatively large, which can reach up to 1200mm at most. The combination of a high-stiffness mast and a high-strength scissor fork structure provides stable support for the goods.

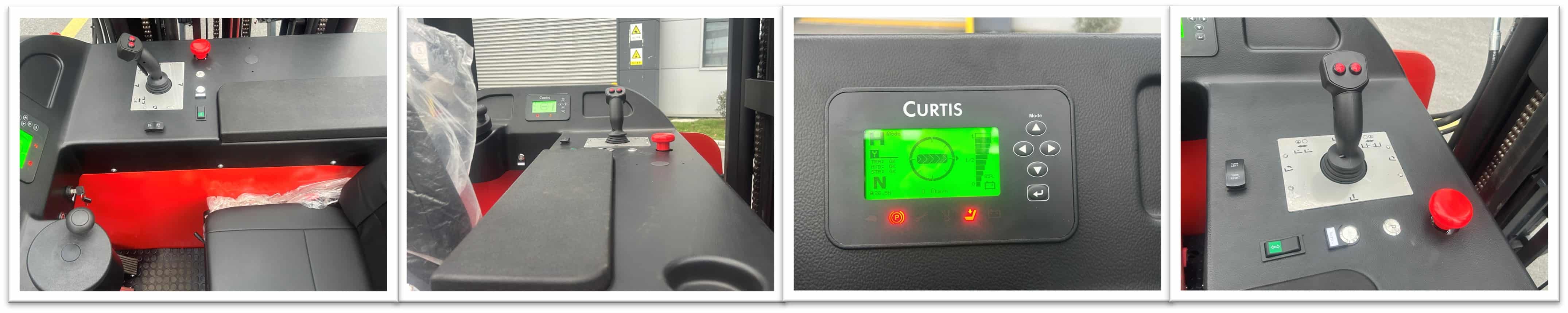

3) Power and Control System Design: Equipped with a high-performance AC drive motor, it has good power output characteristics, with a large starting torque and smooth acceleration. Advanced electronic control systems such as the Curtis controller are adopted to achieve precise control of the vehicle. The driver can accurately control the lifting and telescoping of the forks, as well as the driving speed and direction of the vehicle through the operation handle.

4) Safety Design: A variety of safety protection devices are designed, such as the automatic vehicle speed control system and intelligent buffering during descent. The design of large-sized mast glass and narrow columns provides the driver with a wide front and side view, enabling the driver to clearly observe the picking and placing positions of the goods, as well as the surrounding working environment.


FAQ

1) What is terms of payment?

T/T, 30% deposit, 70% balance paid before shipment.

2) What is the inspection method?

Product photos, packaging, videos, and any other inspection methods required by customers.

3) How is the product packaged?

Naked, packaging film, wooden box, iron frame, and other required packaging methods.

4) How long is the warranty period?

18 months. Spare parts are provided free of charge during the warranty period.

Operation Video


Technical Parameter

Model   ERS16 ERS20
Power Type   Electric Electric
Operation Type   Stand-on Stand-on
Rated Capacity kg 1600 2000
Load Center  mm 500 500
Front Overhang mm 180 280
Wheelbase mm 1560 1710
Wieght kg 3650 4000
Size Of Fork LxWxT mm 1070x100x35 1070x122x40
Fork Outter Width mm 210-680 260-720
Tire Type   PU PU
Size Of Tire Driving Tire 2 φ382x142 φ382x142
Bearing Tire 4 φ145x100 φ145x100
Balance Tire 2 φ180x76 φ180x76
Tire Distance Bearing Tire mm 1560 1610
Overal Length mm 2410 2610
Overal Width mm 1390 1520
Guard Height mm 2280 2325
Lifting Height mm 4500 6000
Free Lifting Height mm 1350 2050
Reach Distance mm 1200 800
Mast Closed Height mm 3050 2980
Mast Extended Height mm 5585 7065
Turning Radius mm 1850 1975
Aisle Width:1000x1200 Across Fork mm 2835 3030
Aisle Width:800x1200 Across Fork mm 2950 3080
Min.Ground Clearance mm 65 50
Speed Travel Load Km/h 6.5 7.5
Without load Km/h 7 8
  Lift Load mm/s 250 150
  Without load mm/s 350 250
  Fall Load mm/s 400 300
  Without load mm/s 350 150
Max.gradeability Load/Without Load % 4/8 4/8
Service Brake   Electromagnetic Electromagnetic
Motor Drive Motor, 60 Minute Rating kw 4.5 6.5
Lift Motor, Rating At S315% kw 7.5 8.6
Battery Type   Lead-acid Lead-acid
Battery Capacity v/ah 48/400 48/400
Drive Control Type   AC AC
Steering Type   Electric(EPS) Electric(EPS)
