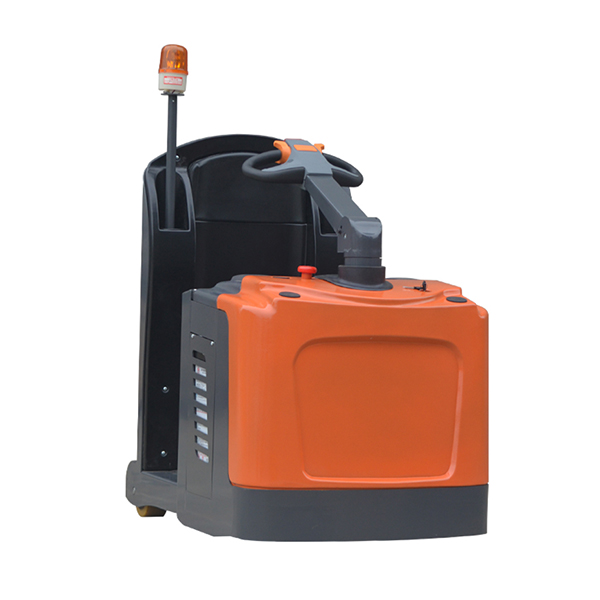

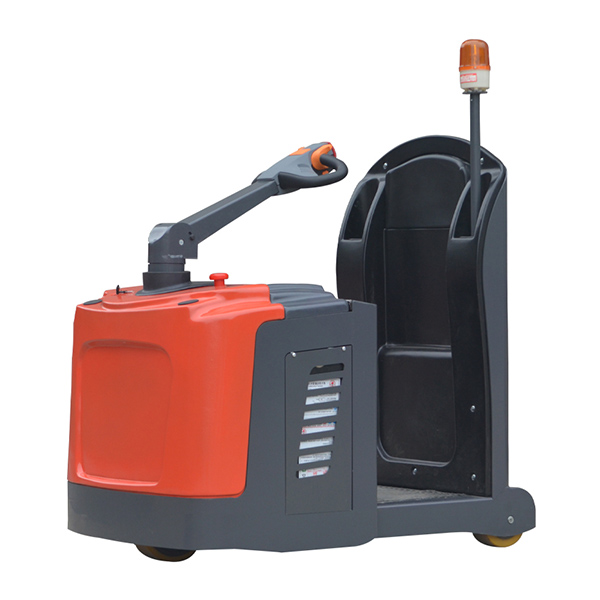

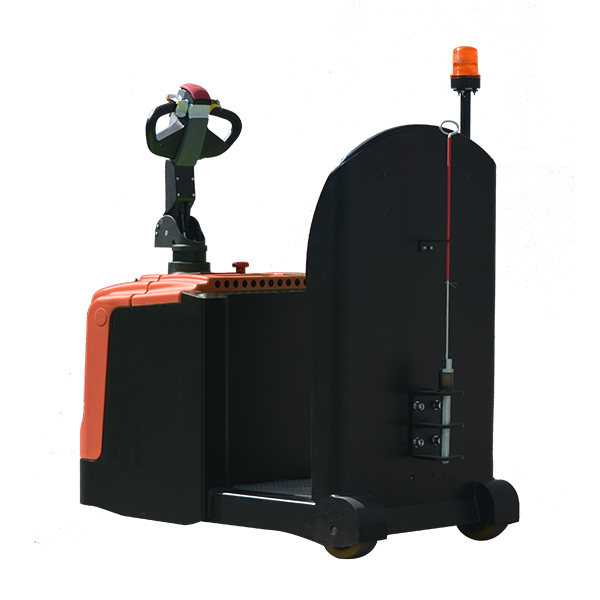

Standing On Electric Tractor Truck is an industrial vehicle operated by the driver standing up and suitable for short-distance material handling and transportation tasks. Its body is compact and it has flexible steering, enabling it to operate in narrow spaces. It features stand-up driving, simple operation, a small turning radius, and is applicable for operations in narrow aisles.
Model No :
EPA20/30Load Capacity :
2000-3000kgMaximum Traction :
1000-2200NDrive Type :
ACBattery :
Lead-acid/LithiumMOQ :
1Lead Time :
15-20 Days2.0-3.0 Ton Standing On Electric Tow Tractor
Electric Warehouse Tow Tractor is a type of vehicle that uses a storage battery as the power source and is used for towing goods or trailers. Li-ion Battery Tow Tractor Truck has a powerful traction force. Equipped with a high-performance electric drive system, it can provide sufficient traction. Moreover, it has a certain climbing ability and can drive normally on sloped roads, such as the loading and unloading platforms in warehouses and the ramp passages in workshops. Standing Tow Truck With Trailer is equipped with a large-capacity battery pack, which can provide a long cruising range. It adopts advanced braking technologies, such as electromagnetic braking and hydraulic braking. With a short braking distance, it can stop quickly in case of an emergency, effectively avoiding collision accidents. Due to its excellent traction ability, Electric Industrial Towing Tractor is widely used in warehousing and logistics, production workshops, airports, docks, etc. According to the actual needs of users, the load capacity and external dimensions of the vehicle can be customized. At the same time, special towing devices can be customized, such as adjustable-height towing hooks and rotating towing frames, which are convenient for connecting and towing various goods and trailers.

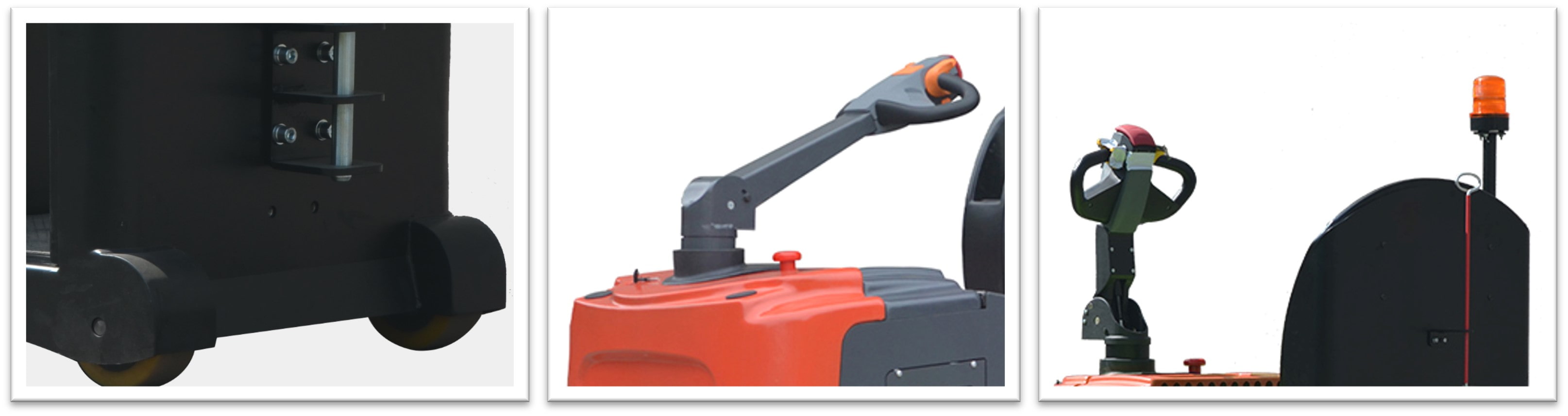

Details & Advantages
Ergonomic Standing Driving Area
1) The carefully designed standing platform conforms to the natural standing posture of the human feet and legs. Paired with a cushion that fits the curve of the human back, it reduces the fatigue of the driver caused by standing for a long time.
2) The operating components such as the control handle and the dashboard are reasonably arranged. They can be easily reached by simply raising or extending the hand, without the need for excessive stretching or twisting of the body, which facilitates the driver to adjust the vehicle's status in real time.
Compact and Sturdy Body Structure
3) The main body frame of the vehicle is constructed with high-strength steel. While ensuring the structural strength, through optimized design, the occupation of unnecessary space is minimized to the greatest extent, achieving a small and compact body.
4) The connections between various components have undergone precise design and technological treatment, ensuring that the vehicle still maintains good integrity under frequent operations such as starting, steering, and braking, and is not prone to looseness or deformation.
Efficient and Flexible Steering System
5) Electric power-assisted steering technology is mostly adopted, which adjusts the assist force in real time according to the vehicle speed and steering force. The steering is light at low speeds, making it convenient for precise control in narrow spaces; and the steering is stable at high speeds, ensuring driving stability.
6) The specially designed steering structure, such as the Ackerman steering geometry design, makes the steering trajectories of the front and rear wheels of the vehicle more precise and coordinated, effectively reducing the turning radius and enabling flexible U-turns and turns in extremely small spaces.
FAQ
1) What is terms of payment?
T/T, 30% deposit, 70% balance paid before shipment.
2) What is the inspection method?
Product photos, packaging, videos, and any other inspection methods required by customers.
3) How is the product packaged?
Naked, packaging film, wooden box, iron frame, and other required packaging methods.
4) How long is the warranty period?
18 months. Spare parts are provided free of charge during the warranty period.
Operation Video
Technical Parameter
Model | EPA20 | EPA30 | |||
Power Type | Electric | Electric | |||
Operation Type | Stand-on | Stand-on | |||
Rated Capacity | kg | 2000 | 3000 | ||
Rated Traction | N | 500 | 600 | ||
Wheelbase | mm | 955 | 955 | ||
Wieght | kg | 630 | 700 | ||
Tire Type | PU | PU | |||
Size Of Tire | Driving Tire | 1(x=Driven) | φ230x75 | φ230x75 | |
Bearing Tire | 2 | φ150x50 | φ150x50 | ||
Tire Distance | Bearing Tire | mm | 665 | 665 | |
Overal Length | mm | 1330 | 1330 | ||
Overal Width | mm | 780 | 780 | ||
Coupler Height | mm | 200-340 | 200-340 | ||
Turning Radius | mm | 1185 | 1185 | ||
Min.Ground Clearance | mm | 50 | 50 | ||
Speed | Travel | Load | Km/h | 6 | 6 |
Without load | Km/h | 8 | 8 | ||
Max.gradeability | Load/Without Load | % | 3/15 | 3/15 | |
Service Brake | Electromagnetic | Electromagnetic | |||
Motor | Drive Motor, 60 Minute Rating | kw | 1.6 | 1.6 | |
Battery Type | Lead-acid | Lead-acid | |||
Battery Capacity | v/ah | 24/210 | 24/210 | ||
Drive Control Type | AC | AC | |||
Steering Type | Electric(EPS) | Electric(EPS) |
