Electric Driver Seated Tow Tractor adopts a three-point support structure design, equipped with a high-power traction motor and a high-performance battery, providing strong power for the vehicle. Its compact body and small turning radius enable it to operate flexibly in narrow spaces. It is widely used in fields such as logistics and warehousing, industrial production lines, food and beverage processing, etc.
Model No :
EPB20/30/40/60Load Capacity :
2000-6000kgMaximum Traction :
1000-3200NDrive Type :
ACBattery :
Lead-acid/LithiumMOQ :
1Lead Time :
15-20 Days2.0-6.0 Ton Seated Electric Tow Tractor
Indoor Electric Lithium Tow Tractor is an efficient, environmentally friendly and flexible material handling equipment. Warehouse Tractor Tow Truck is equipped with a wide and comfortable seat with a buffering function, which can be adjusted back and forth, adjusted in angle, and is equipped with a seat belt. At the same time, the steering column can be adjusted at a large angle according to the driver's needs. The emergency brake switch is reasonably positioned, allowing the driver to cut off the power supply in the shortest possible time. Large Tractor Tow Truck With Trailer adopts a maintenance-free AC drive motor, which features high torque, strong climbing ability and large traction force. It is equipped with a triple guarantee of electromagnetic braking, motor braking and hydraulic braking, which improves the braking safety and reduces the wear and tear. Sit Down Industrial Tow Tractor Outdoor plays an important role in logistics centers and warehouses, in industrial manufacturing fields such as automobile manufacturing and mechanical processing, as well as in the food and beverage processing industry. According to the customers' working time and intensity requirements, different capacities and types of batteries are provided. Different forms of traction pins, towing hooks and other traction devices can be customized according to the type of the goods or trailers being towed to ensure the firmness and stability of the connection.
Details & Advantages
1) Three-point support structure: The adoption of a three-point support design enables the vehicle to have a uniform center of gravity distribution and good stability. Even when driving at full load or turning, the vehicle can maintain balance, reducing the risk of rollover.
2) High-power traction motor: Equipped with a high-power traction motor, it has a large output torque and can provide strong traction force to meet the material traction requirements under different load conditions.
3) High-performance battery: High-performance batteries are used, which have a high energy density and a long endurance. At the same time, the charging time of the battery is relatively short, allowing for rapid energy replenishment. In addition, the electric drive system has the advantages of zero emissions, low noise, and low vibration, meeting environmental protection requirements.
4) Humanized cab: The cab is designed according to the principles of ergonomics. It is equipped with a comfortable seat that can be adjusted in multiple directions, such as forward and backward, and in angle, and is also equipped with a seat belt. The control components such as the steering wheel, pedals, and operating handles are reasonably arranged, conforming to human operating habits.
5) Good visibility: With large-area glass windows and a reasonable vehicle body layout, the driver can clearly observe the environment around the vehicle, including the loading and unloading of goods and obstacles on the driving route, reducing the operational risk and improving the safety of the operation.
6) Multiple braking systems: It is equipped with a triple braking system consisting of electromagnetic braking, motor braking, and hydraulic braking.

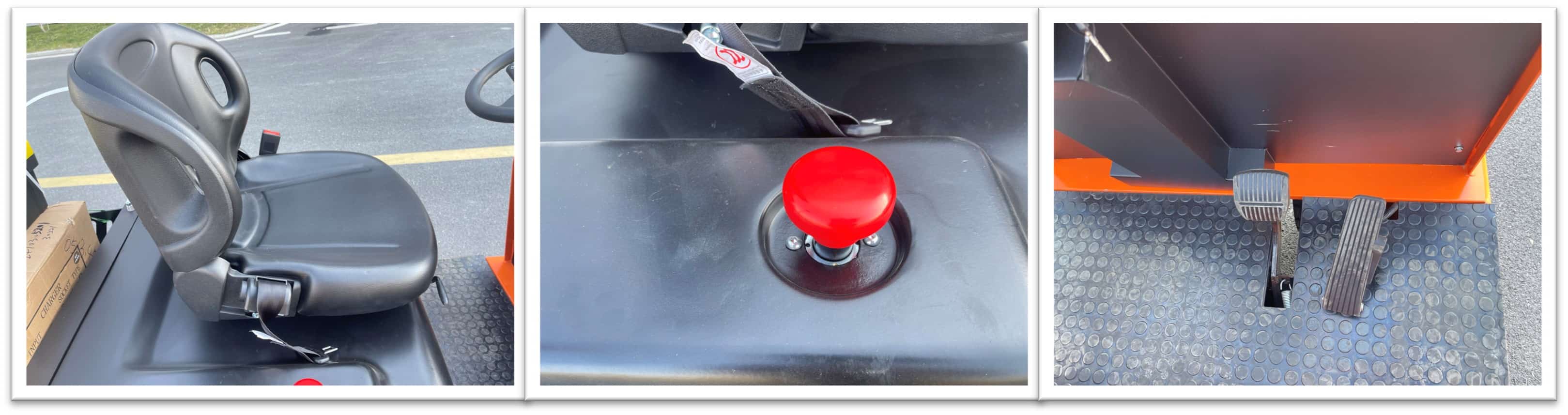

7) Safety devices: An emergency braking switch is installed, which is convenient for the driver to quickly cut off the power supply in case of an emergency. At the same time, the vehicle may also be equipped with overload protection devices, audible and visual alarm devices, etc. When the vehicle is overloaded or an abnormal situation occurs, it can promptly send out an alarm.
FAQ
1) What is terms of payment?
T/T, 30% deposit, 70% balance paid before shipment.
2) What is the inspection method?
Product photos, packaging, videos, and any other inspection methods required by customers.
3) How is the product packaged?
Naked, packaging film, wooden box, iron frame, and other required packaging methods.
4) How long is the warranty period?
18 months. Spare parts are provided free of charge during the warranty period.
Operation Video
Techinical Parameter
Model | EPB20 | EPB30 | EPB40 | EPB60 | |||
Power Type | Electric | Electric | Electric | Electric | |||
Operation Type | Seated | Seated | Seated | Seated | |||
Rated Capacity | kg | 2000 | 3000 | 4000 | 6000 | ||
Rated Traction | N | 500 | 750 | 1000 | 1500 | ||
Wheelbase | mm | 1040 | 1040 | 1360 | 1360 | ||
Wieght | kg | 750 | 800 | 1000 | 1200 | ||
Tire Type | Solid Tire | Solid Tire | Solid Tire | Solid Tire | |||
Size Of Tire | Driving Tire | 2(x=Driven) | 4.00-8 | 4.00-8 | 4.00-8 | 4.00-8 | |
Steering Tire | 2 | 3.50-5 | 3.50-5 | 3.50-5 | 3.50-5 | ||
Tire Distance | Steering Tire | mm | 775 | 775 | 825 | 825 | |
Overal Length | mm | 1710 | 1710 | 2030 | 2030 | ||
Overal Width | mm | 845 | 845 | 985 | 985 | ||
Overal Height | mm | 1338 | 1338 | 1435 | 1435 | ||
Seat Height | mm | 880 | 880 | 900 | 900 | ||
Coupler Height | mm | 300-380 | 300-380 | 300-410 | 300-410 | ||
Turning Radius | mm | 1460 | 1460 | 1700 | 1700 | ||
Min.Ground Clearance | mm | 100 | 100 | 100 | 100 | ||
Speed | Travel | Load | Km/h | 5 | 5 | 5 | 5 |
Without load | Km/h | 8 | 8 | 8 | 8 | ||
Max.traction | N | 1000 | 2200 | 3000 | 3200 | ||
Max.gradeability | Load/Without Load | % | 8/10 | 6/8 | 4/8 | 5/10 | |
Service Brake | Mechanical+Hydraulic | Mechanical+Hydraulic | Mechanical+Hydraulic | Mechanical+Hydraulic | |||
Motor | Drive Motor, 60 Minute Rating | kw | 2.5 | 2.5 | 3 | 4.5 | |
Battery Type | Lead-acid | Lead-acid | Lead-acid | Lead-acid | |||
Battery Capacity | v/ah | 24/210 | 24/240 | 24/350 | 48/280 | ||
Drive Control Type | AC | AC | AC | AC | |||
Steering Type | Electric(EPS) | Electric(EPS) | Electric(EPS) | Electric(EPS) |
