Products

8.0-15.0 Ton Seated Electric Tow Tractor EPB Series

Heavy Electric Towing Tractor adopts four-points structure and advanced steering technology, with good maneuverability. It has a certain climbing ability, and the general climbing Angle is about 10°-20°, which can meet the traction needs of various cargo weights. All kinds of customized services are available.

  • Model No :

    EPB80/100/120/150
  • Load Capacity :

    8000-15000kg
  • Maximum Traction :

    8500-12500N
  • Drive Type :

    AC
  • Battery :

    Lead-acid/Lithium
  • MOQ :

    1
  • Lead Time :

    15-20 Days

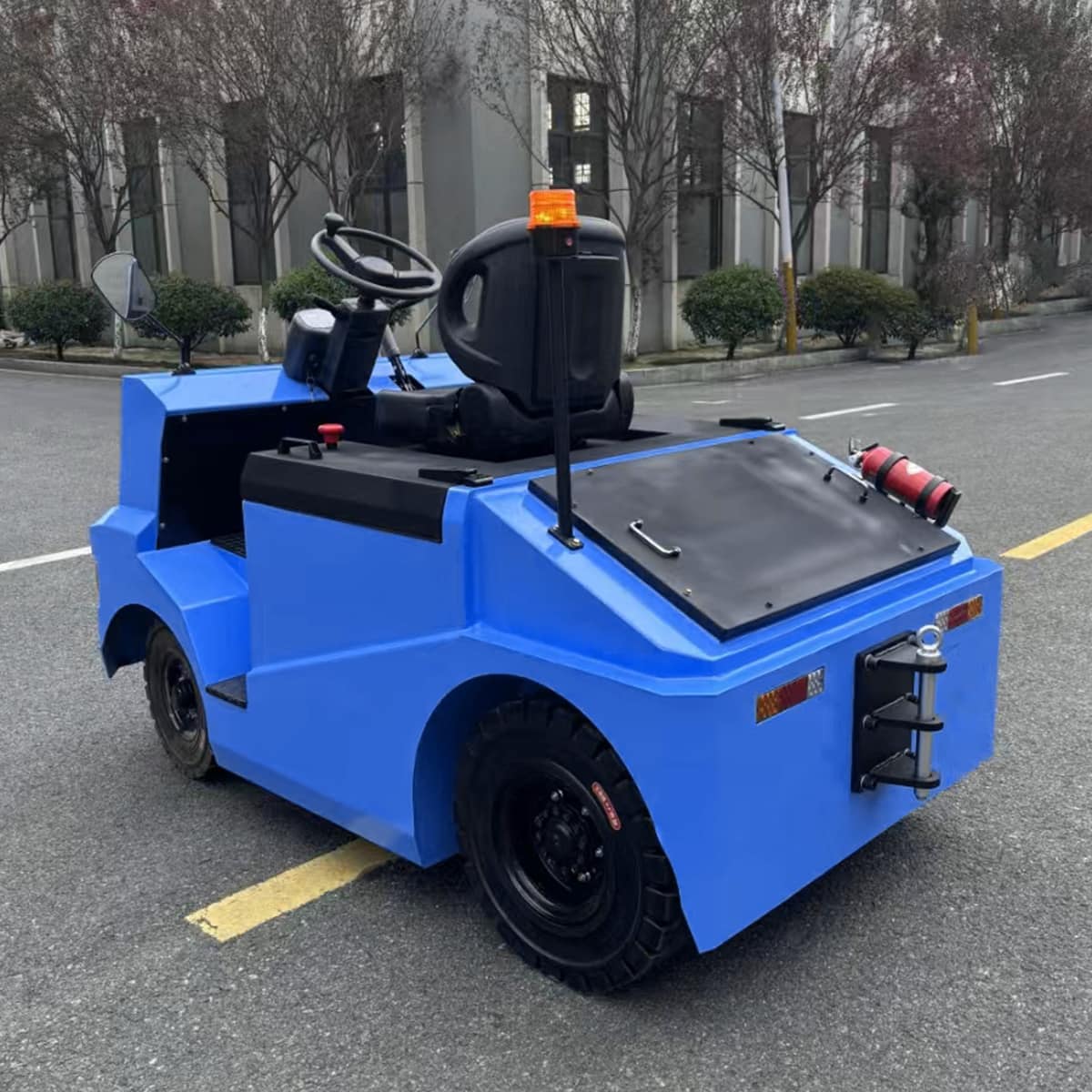

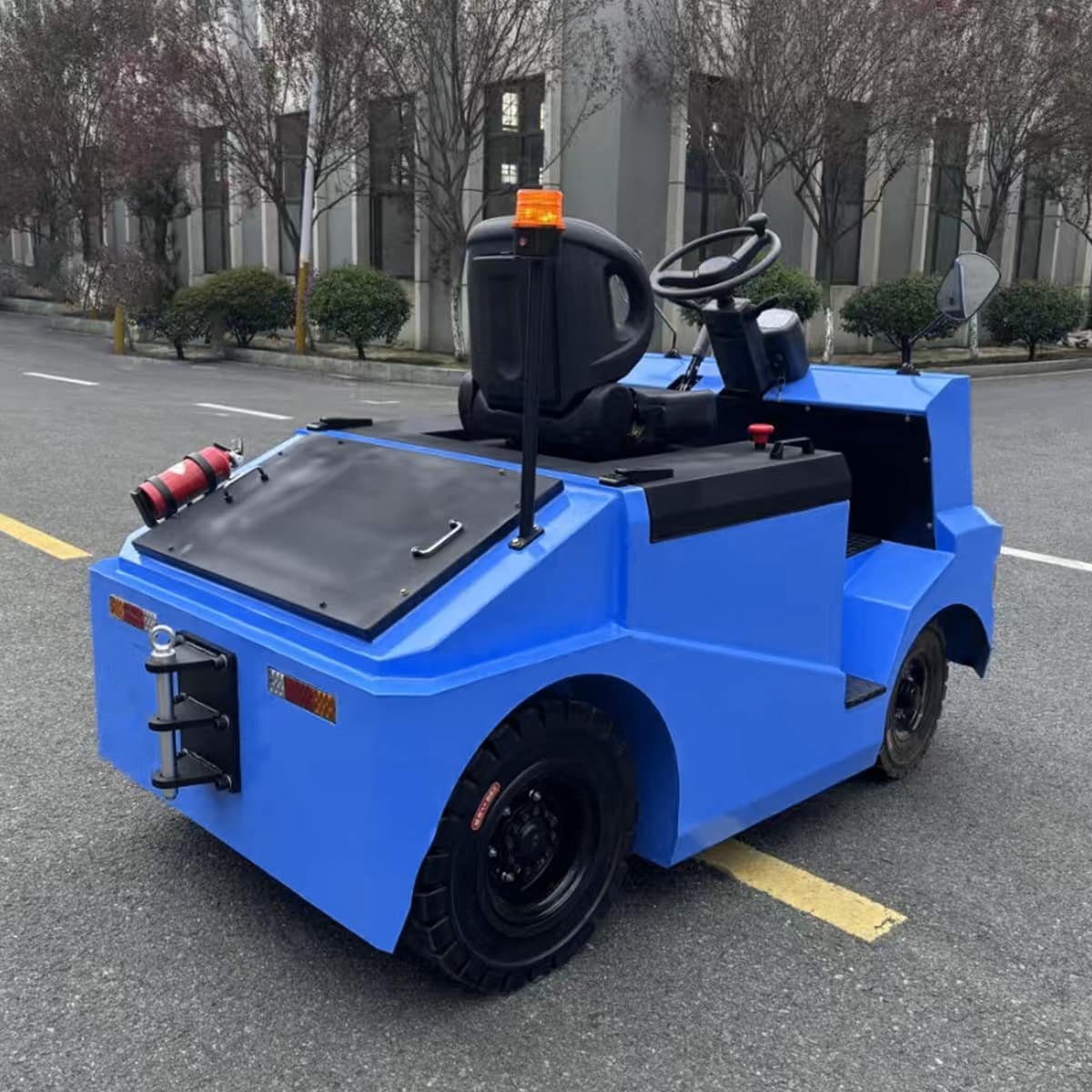

8.0-15.0 Ton Seated Electric Tow Tractor

Large Capacity Airport Tow Tractor is a material handling vehicle powered by a large-capacity and high-quality storage battery. It is equipped with a high-power drive motor that can output strong traction force, easily meeting various material transportation requirements. Industrial Tow Tractor Li-ion Battery has its body supported by four wheels, and the driver operates it in a seated manner. The optimized design of the front and rear suspension systems enhances the driving comfort and the smoothness of the whole machine. Aircraft Tow Tractor With Trailer adopts an advanced braking system. For example, the front wheel brakes use imported disc brakes, and the rear axle brakes use imported wet multi-disc brakes, which are light and reliable to operate. Electric Power Warehouse Tow Tractor has the characteristics of energy conservation and environmental protection, comfortable operation, strong power, reliable braking, and convenient maintenance. It is commonly used in warehouses and logistics centers, factory production lines, for the handling and transfer of luggage and mail in airports, railway stations, and post offices, as well as for the rapid transfer and shunting operations of goods in multimodal transportation logistics parks. It can be customized with various types of traction devices, cab customization, battery system customization, etc.

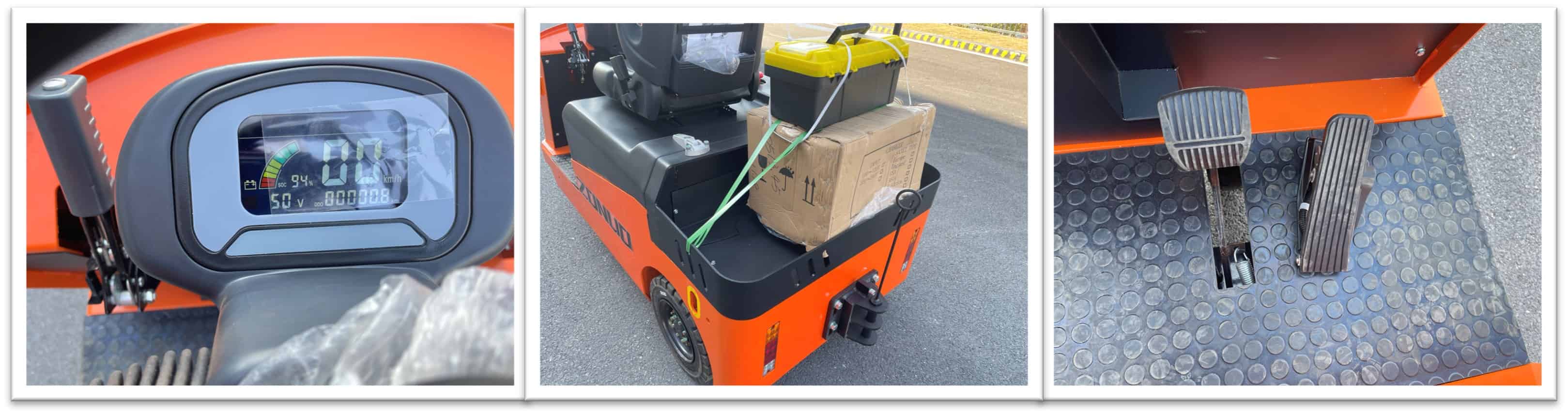

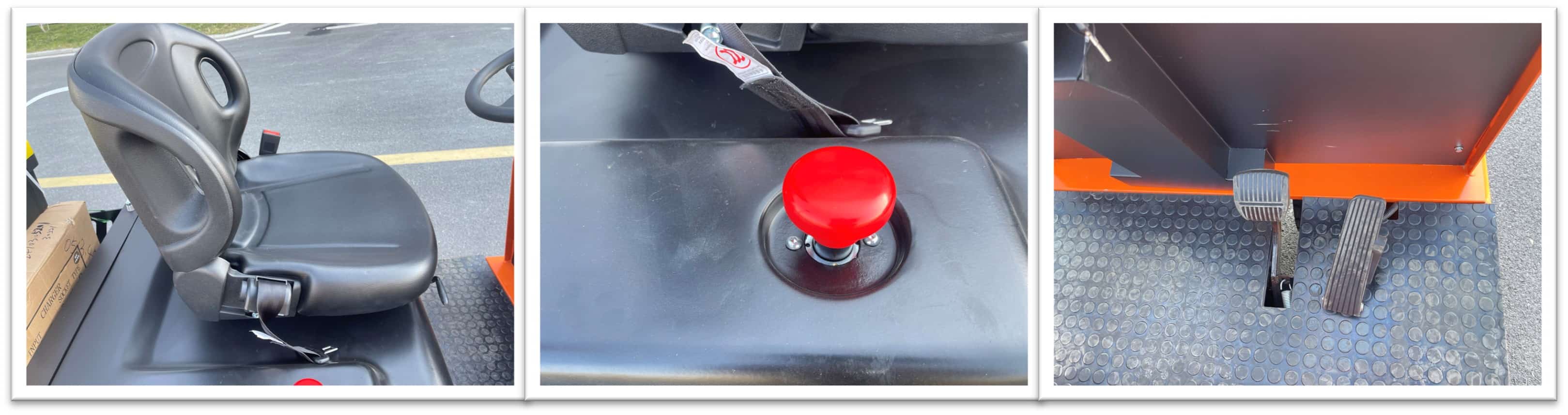

Details & Advantages

Electric Industrial Tow Tractor Indoor

Large Aircraft Towing Tractor Manufaturer

1) Four-point support structure: The vehicle body is supported by four wheels. This structure provides stable support, enabling the vehicle to have good balance during driving and traction. It can effectively prevent rollovers and adapt to various road conditions and working environments.

2) Seated driving cabin: It is usually equipped with an ergonomic seat, and the height and angle of the seat can be adjusted to suit the body shapes and operating habits of different drivers. The layout inside the driving cabin is reasonable. Operating handles, instrument panels, etc. are all arranged in positions that are easily accessible and observable for the driver, facilitating the driver to carry out various operations and monitor the vehicle's status.

3) Optimized suspension system: The front and rear suspension systems are carefully designed. They can effectively absorb the vibrations generated by road bumps, reduce the transmission of vibrations to the driving cabin, enhance the driving comfort and the smoothness of the whole machine, reduce the driver's fatigue level, and improve work efficiency.

4) Advanced braking system: It is equipped with advanced braking devices. For example, the front wheels use imported disc brakes, and the rear axles use imported wet multi-disc brakes. The disc brakes have the characteristics of fast braking response and large braking force, which can quickly stop the front wheels from rotating. The wet multi-disc brakes have good heat dissipation performance and stable braking force, and are suitable for working conditions with frequent braking. The combination of the two provides reliable braking performance for the vehicle.

5) Powerful power system: It is equipped with a high-power drive motor, which can output strong traction force and easily tow goods of various weights, meeting different material transportation requirements.

6) Convenient maintenance: The front and rear flip-up hoods are adopted, making it easy to access key components of the vehicle such as the engine, battery, and motor, facilitating maintenance personnel to carry out daily inspections, maintenance, and repair work.

7) High safety: It is equipped with safety devices, such as overload protection devices, anti-skid devices, warning lights, reversing radars, etc.


FAQ

1) What is terms of payment?

T/T, 30% deposit, 70% balance paid before shipment.

2) What is the inspection method?

Product photos, packaging, videos, and any other inspection methods required by customers.

3) How is the product packaged?

Naked, packaging film, wooden box, iron frame, and other required packaging methods.

4) How long is the warranty period?

18 months. Spare parts are provided free of charge during the warranty period.

Operation Video


Technical Parameter

Model   EPB80 EPB100 EPB120 EPB150
Power Type   Electric Electric Electric Electric
Operation Type   Seated Seated Seated Seated
Rated Capacity kg 8000 1000 12000 15000
Rated Traction N 1800 2200 2500 3800
Wheelbase mm 1545 1545 1545 1545
Wieght kg 2700 2850 2850 2850
Tire Type   Solid Tire Solid Tire Solid Tire Solid Tire
Size Of Tire Driving Tire 2(x=Driven) 6.50-10 6.50-10 6.50-10 6.50-10
Steering Tire 2 5.00-8 5.00-8 5.00-8 5.00-8
Tire Distance Steering Tire mm 965 965 965 965
Overal Length mm 2395 2395 2395 2395
Overal Width mm 1200 1200 1200 1200
Overal Height mm 1505 1505 1505 1505
Seat Height mm 1055 1055 1055 1055
Coupler Height mm 300-410 300-450 300-450 300-450
Turning Radius mm 2260 2260 2260 2260
Min.Ground Clearance mm 140 140 140 140
Speed Travel Load Km/h 7 7 7 7
Without load Km/h 12 12 12 12
Max.traction  N 5600 8500 11300 12300
Max.gradeability Load/Without Load % 6/15 5/15 4/15 4/15
Service Brake   Mechanical+Hydraulic Mechanical+Hydraulic Mechanical+Hydraulic Mechanical+Hydraulic
Motor Drive Motor, 60 Minute Rating kw 8 8 9 12
Battery Type   Lead-acid Lead-acid Lead-acid Lead-acid
Battery Capacity v/ah 48/300 48/400 80/300 80/375
Drive Control Type   AC AC AC AC
Steering Type   Electric(EPS) Electric(EPS) Electric(EPS) Electric(EPS)
