6-18m Self Propelled Scissor Lift ZWSL Series

Self Propelled Scissor Lift Work Platform, with battery or hydraulic drive as its core, integrates the functions of walking, steering, and lifting. It allows a single operator to complete complex maneuvers. It meets the mechanized requirements of modern scenarios such as warehousing and municipal engineering. Specifically designed for efficient and flexible medium and low-altitude operations, it is an industrial-grade aerial work equipment.

  • Model No :

    ZWSL06/08/10/12/14/16/18
  • Platform Capacity :

    230-500kg
  • Maximum Working Height :

    8-20m
  • Power Type :

    Battery/Engine
  • MOQ :

    1
  • Lead Time :

    7-15 Days

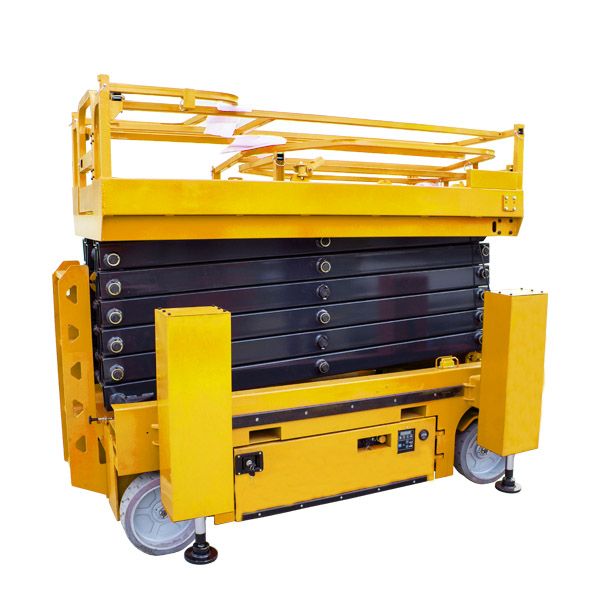

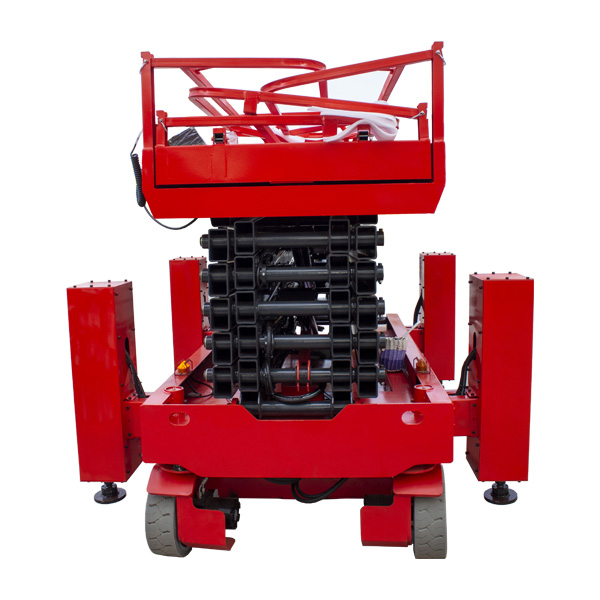

6-18m Self Propelled Scissor Lift

Self Levelling Power Scissor Lift is an aerial work equipment that integrates high efficiency, safety, and flexibility. It features strong power, high load-bearing capacity, smooth operation, and high durability. Scissor Type Aerial Work Platform has a compact structure and a small turning radius. The maximum platform height can reach 18 meters, which can meet the aerial work requirements of most medium and high-rise buildings. High Lift Scissor Lift Platform Outdoor is equipped with a high-efficiency power system and can achieve full-stroke walking. It adopts a user-friendly operation design. The lifting and walking of the platform are all in full-proportional control, allowing the operator to precisely control the speed according to actual needs. Self Propelled Lifting Operation Platform plays a crucial role in various fields such as construction projects, industrial plants, commercial venues, transportation hubs, and venue facilities. For some special operation requirements, customized services can be provided. For example, in terms of explosion-proof design, explosion-proof electrical components and hydraulic oil made of special materials are used. For adaptation to low-temperature environments, cold-resistant equipment can be customized, with special selection and treatment of batteries, hydraulic oil, rubber parts, etc. to ensure the normal startup and operation of the equipment in low temperatures. Regarding special platform sizes, the length and width of the platform can be customized according to actual needs to meet the usage requirements of specific operation scenarios. With its excellent performance and wide applicability, they provides strong support for the smooth progress of various aerial work projects.

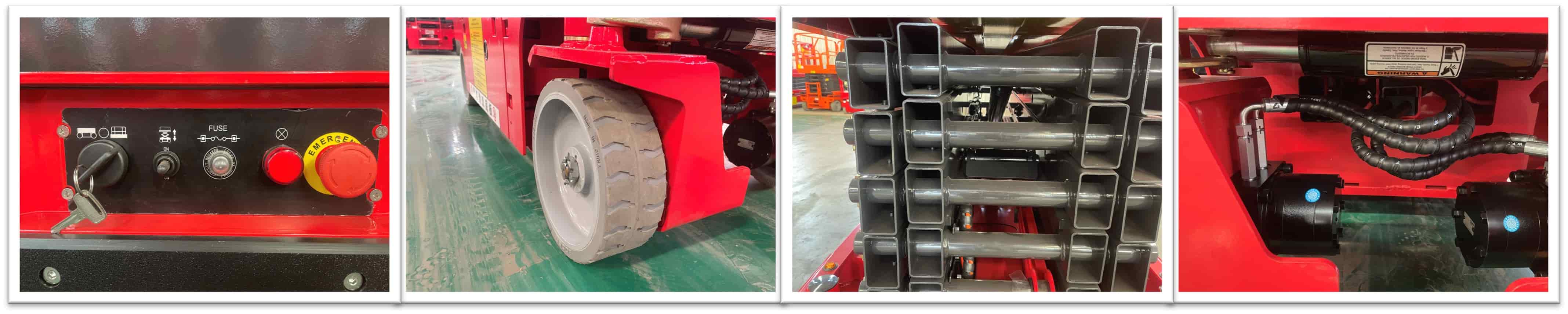

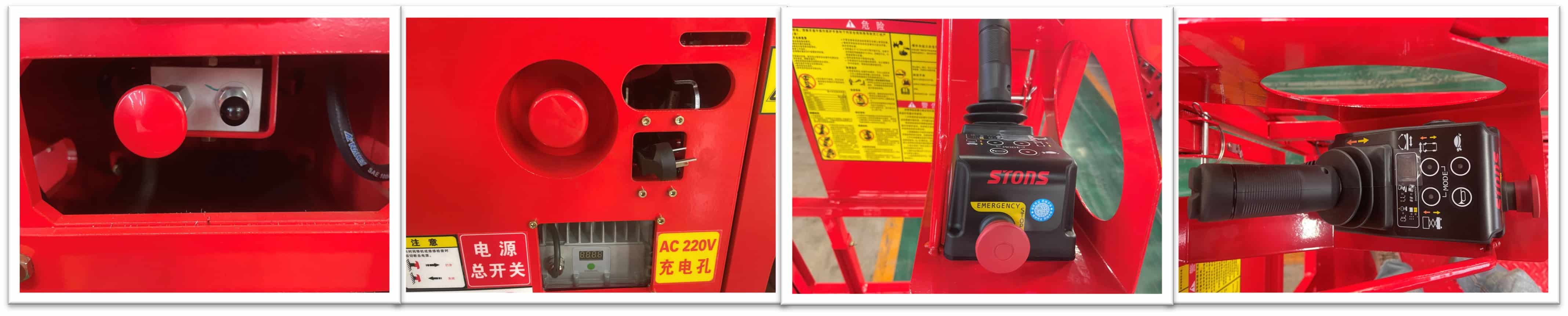

Details & Advantages

Narrow Aisle Scissor Work Platform

Self Propelled Electric Power Scissor Lift

1) Height and Load-bearing Capacity: Sufficient working height, with a maximum platform height of up to 18 meters, which can meet the requirements of many aerial work scenarios in medium and high-rise buildings. It has a relatively strong load-bearing capacity, usually capable of carrying 230-500 kilograms. This can meet the needs of multiple people working simultaneously and carrying a certain amount of tools and materials, improving the efficiency of a single operation.

2) Self-propelled and Maneuverability: It has a full self-propelled function. Equipped with a high-efficiency power system, it can achieve self-propelled movement throughout the entire stroke. It has good maneuverability, a compact structure, and a small turning radius, allowing it to turn and move flexibly in narrow spaces and adapt to various complex working environments.

3) Operation and Safety Performance: The operation is simple and precise. With a user-friendly operation design, the lifting and movement of the platform are all under full proportional control. Operators can precisely control the speed through the operation handle. The safety protection is comprehensive, with multiple safety protection devices set up. For example, the safety self-locking function prevents the platform from falling unexpectedly, the automatic pothole protection system avoids tipping over due to uneven ground, and there are also horizontal alarm devices, balance valves, etc. that monitor the platform status in real time, ensuring operation safety in all aspects.

4) Stability and Durability: It runs smoothly. The scissor mechanical structure, combined with the advanced hydraulic system, makes the platform's lifting process smooth and reduces shaking and vibration. It has high durability. High-quality structural steel is selected and processed through advanced processes such as laser welding. The entire machine has a sturdy structure, can adapt to harsh working environments, and reduces the failure rate of the equipment.


FAQ

1) What is terms of payment?

T/T, 30% deposit, 70% balance paid before shipment.

2) What is the inspection method?

Product photos, packaging, videos, and any other inspection methods required by customers.

3) How is the product packaged?

Naked, packaging film, wooden box, iron frame, and other required packaging methods.

4) How long is the warranty period?

18 months. Spare parts are provided free of charge during the warranty period.

Operation Video


Technical Parameter

Model   ZWSL06 ZWSL08 ZWSL10 ZWSL12 ZWSL14 ZWSL16 ZWSL18
Power Type   Electric Electric Electric Electric Electric Electric Electric
Rated Capacity kg 550 450 320 320 230 320 320
Rated Capacity(Extension platform) kg 113 113 113 113 113 113 113
Wheelbase mm 1890 1890 1890 1890 2260 2260 2260
Wieght kg 2050 2200 2500 2860 3390 3580 4000
Max.Working Height mm 8000 10000 12000 13800 15800 17800 19800
Max.Platform Height mm 6000 8000 10000 11800 13800 15800 17800
Platform Size(L*W*H) mm 2290X1130X1100 2290X1130X1100 2290X1130X1100 2290X1130X1100 2670X1130X1100 3080X1130X1100 3150X1500X1100
Extension Platform Length mm 900 900 900 900 900 900 900
Overall Size(L*W*H,Guardrail Folded) mm 2480X1190X1680 2480X1190X1820 2480X1190X1920 2480X1190X1050 2840x1400x2060 3240x1400x2060 3340x1400x2060
Overall Size(L*W*H,Guardrail Deployed) mm 2480X1190X2190 2480X1190X2320 2480X1190X2450 2480X1190X2585 2840x1400x2600 3240x1400x2600 3340x1400x2600
Tire Type   Non-Marking Solid Rubber Non-Marking Solid Rubber Non-Marking Solid Rubber Non-Marking Solid Rubber Non-Marking Solid Rubber Non-Marking Solid Rubber Non-Marking Solid Rubber
Size Of Tire mm φ381x127 φ381x127 φ381x127 φ381x127 φ381x127 φ381x127 φ381x127
Turning Radius(Outside) mm 2200 2200 2200 2200 2700 2700 2700
Min.Ground Clearance mm 20 20 20 20 20 20 20
Speed Drive Lifing Km/h 0.8 0.8 0.8 0.8 0.8 0.8 0.8
Falling Km/h 3.5 3.5 3.5 3.5 3.5 3.5 3.5
Lift m/min 3 3 3 3 3 3 3
Fall m/min 5 5 5 5 5 5 5
Max. Working Angel ° 1.5/3 1.5/3 1.5/3 1.5/3 1.5/3 1.5/3 1.5/3
Max.gradeability % 25 25 25 25 25 25 25
