Self-Propelled Scissor Lift Platform is positioned to provide a safe, efficient and flexible working platform for scenarios where operations at different heights are required. It is capable of moving to the work site on its own without the need for external power supply or manual towing. It is suitable for various indoor and outdoor locations and can be widely applied in industries such as construction, industrial maintenance, warehousing and logistics, and municipal engineering.
Model No :
ZMSL04/06Platform Capacity :
230-250kgMaximum Working Height :
6-8mPower Type :
Battery/EngineMOQ :
1Lead Time :

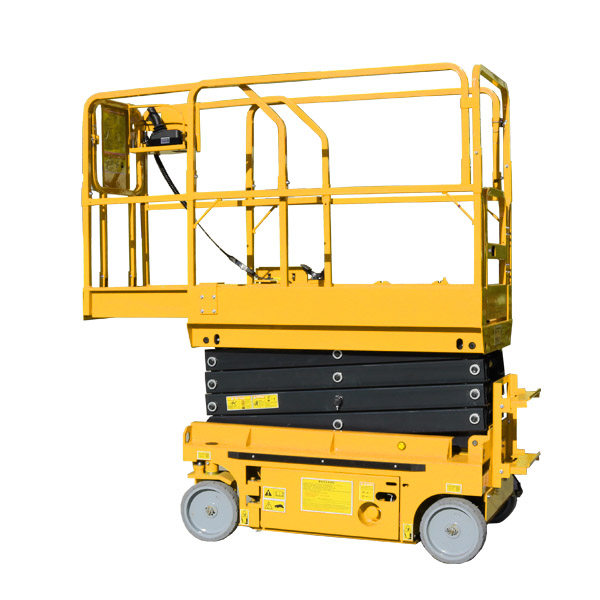

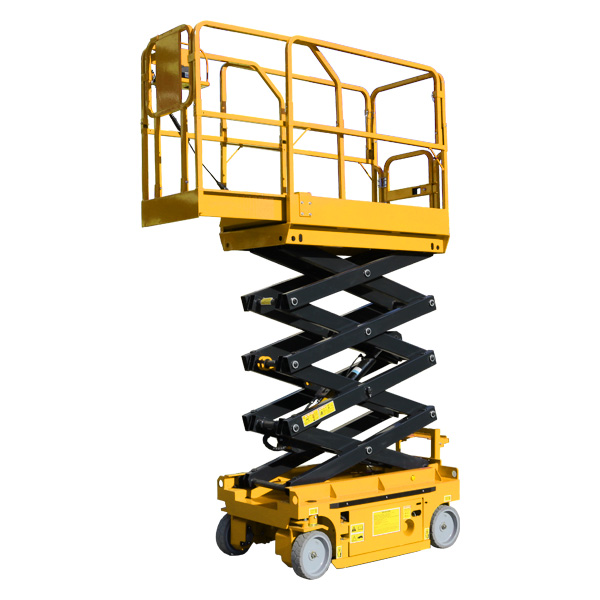

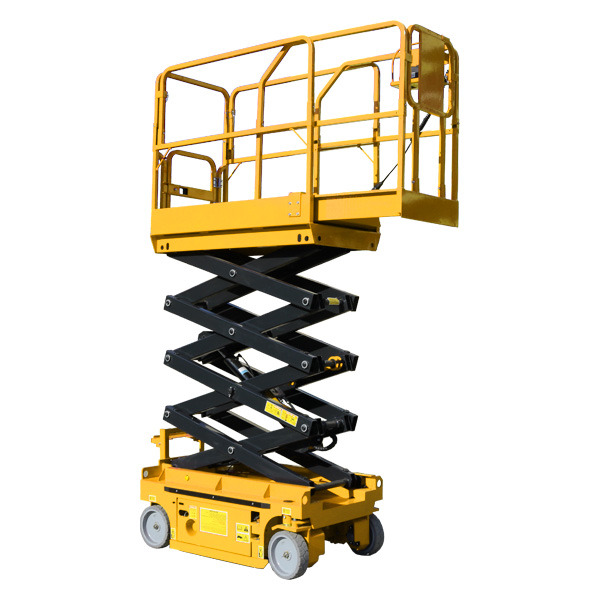

7-15 Days4-6m Mini Self Propelled Scissor Lift
Mobile Scissor Hydraulic Lift is a piece of equipment used for high-altitude operations. Equipped with a driving system, it can automatically move under different working conditions, featuring flexible mobility and convenient operation. One person can complete actions such as moving forward, backward, turning, walking at different speeds, and lifting and lowering. The control system of Scissor Lift Aerial Work Platform adopts advanced electrical components and control algorithms, which are simple to operate and respond quickly. Operators can easily control the lifting, moving, and turning of the lift through the operation handle or remote control. The working platform of Self Propelled Scissor Lift Platform can extend horizontally, greatly expanding the working range. It also has a foldable guardrail, which not only reduces the storage space but also facilitates operation in narrow spaces. It is widely used in fields such as construction, industrial maintenance, warehousing and logistics, and municipal engineering. According to the working requirements of Scissor Type Lifting Operation Platform, various customized solutions can be provided. For example, in flammable and explosive environments, an explosion-proof self-propelled scissor lift can be customized. When working at specific heights or with specific load capacities, lifts of special specifications can be customized.

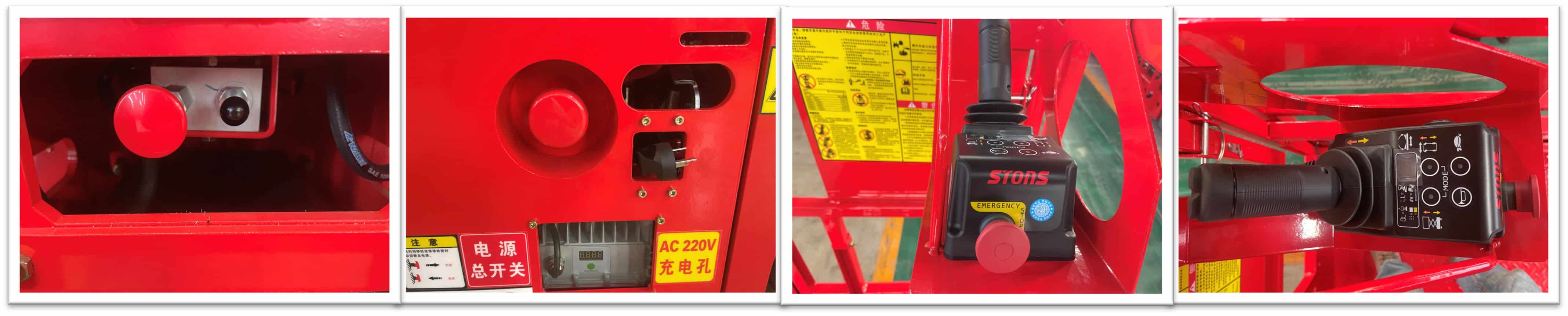

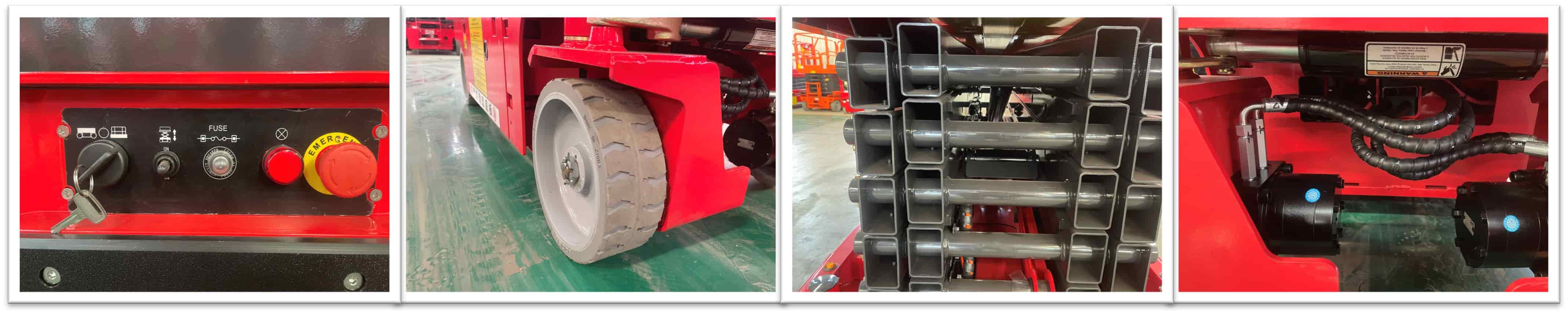

Details & Advantages
1) Self-propelled: Equipped with an independent power drive system, usually using an electric or fuel engine, it can move autonomously without the need for external towing or power connection.
2) High stability: The scissor structure design gives it excellent stability. During the lifting and lowering process, the scissor arms are evenly stressed, which can effectively disperse the load and ensure the smooth lifting and lowering of the platform.
3) Strong load-bearing capacity: It can carry weights ranging from several hundred kilograms to several tons according to different models.
4) Wide lifting range: There are corresponding models available for heights from relatively low to tens of meters. It can meet the high-altitude operation requirements of different construction, industrial, and warehousing sites.
5) Flexible working platform: The platform has a relatively large area, and it can also be extended horizontally, further expanding the working range.
6) Easy to operate: With intuitive control handles or buttons, operators can master the operation method proficiently after simple training.
7) High safety performance: It is equipped with a variety of safety protection devices, such as anti-fall safety devices, overload protection devices, safety fences, limit switches, etc.
8) Low maintenance cost: The structure is relatively simple, and the design of each component is convenient for maintenance and upkeep.
FAQ
1) What is terms of payment?
T/T, 30% deposit, 70% balance paid before shipment.
2) What is the inspection method?
Product photos, packaging, videos, and any other inspection methods required by customers.
3) How is the product packaged?
Naked, packaging film, wooden box, iron frame, and other required packaging methods.
4) How long is the warranty period?
18 months. Spare parts are provided free of charge during the warranty period.
Operation Video
Technical Parameter
Model | ZMSL04 | ZMSL06 | |||
Power Type | Electric | Electric | |||
Rated Capacity | kg | 240 | 230 | ||
Rated Capacity(Extension platform) | kg | 100 | 113 | ||
Wheelbase | mm | 1050 | 1360 | ||
Wieght | kg | 900 | 1540 | ||
Max.Working Height | mm | 6000 | 7800 | ||
Max.Platform Height | mm | 4000 | 5800 | ||
Platform Size(L*W*H) | mm | 1290x700x1050 | 1670x740x1100 | ||
Extension Platform Length | mm | 600 | 900 | ||
Overall Size(L*W*H,Guardrail Folded) | mm | 1480x760x1630 | 1850x800x1850 | ||
Overall Size(L*W*H,Guardrail Deployed) | mm | 1480x760x2000 | 1850x800x2220 | ||
Tire Type | Non-Marking Solid Rubber | Non-Marking Solid Rubber | |||
Size Of Tire | mm | φ230x80 | φ305x100 | ||
Turning Radius(Inside/Outside) | mm | 300/1350 | 1640 | ||
Min.Ground Clearance | mm | 15 | 16 | ||
Speed | Drive | Lifing | Km/h | 0.5 | 0.8 |
Falling | Km/h | 4 | 3.5 | ||
Lift | m/min | 4 | 3 | ||
Fall | m/min | 6 | 5 | ||
Max. Working Angel | ° | 2/3 | 1.5/3 | ||
Max.gradeability | % | 25 | 25 | ||
Motor | Drive Motor | kw | 0.5 | 3.3 | |
Lift Motor | kw | 0.8 | 3.3 | ||
Battery Type | Lead-acid | Lead-acid | |||
Battery Capacity | v/ah | 24/80 | 24/80 |
