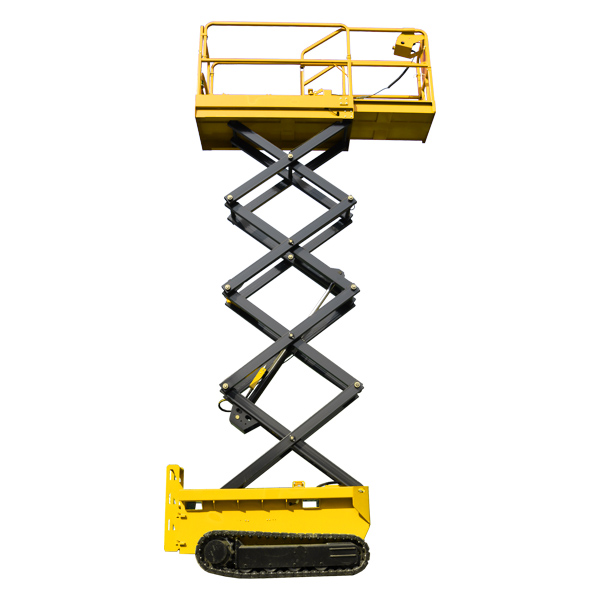

6-14m Tracked Self Propelled Scissor Lift ZCSL Series

Self-Propelled Tracked Aerial Work Platform is mainly positioned as a piece of equipment for aerial work in complex terrains and environments. It combines the strong passability of the tracked walking mechanism with the lifting function of the aerial work platform. It can provide a stable and safe aerial work platform for workers in various environments such as rugged mountain roads, muddy construction sites, narrow spaces, and different ground conditions both indoors and outdoors.

  • Model No :

    ZCSL06/08/10/12/14
  • Platform Capacity :

    230-500kg
  • Maximum Working Height :

    8-16m
  • Power Type :

    Power/Engine
  • MOQ :

    1
  • Lead Time :

    7-15 Days

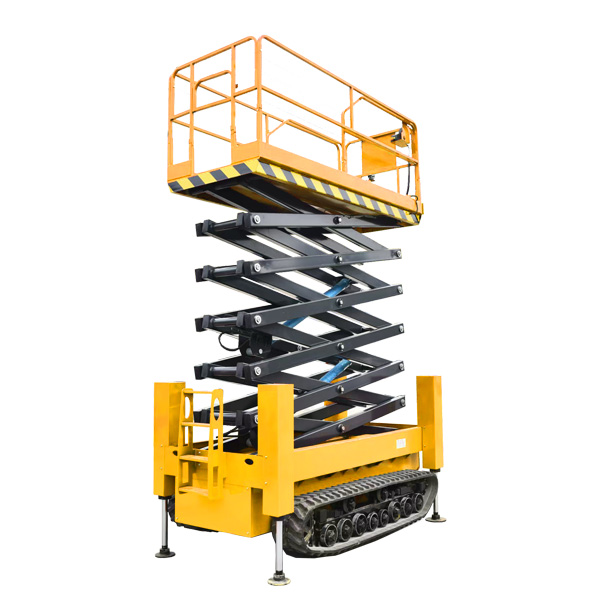

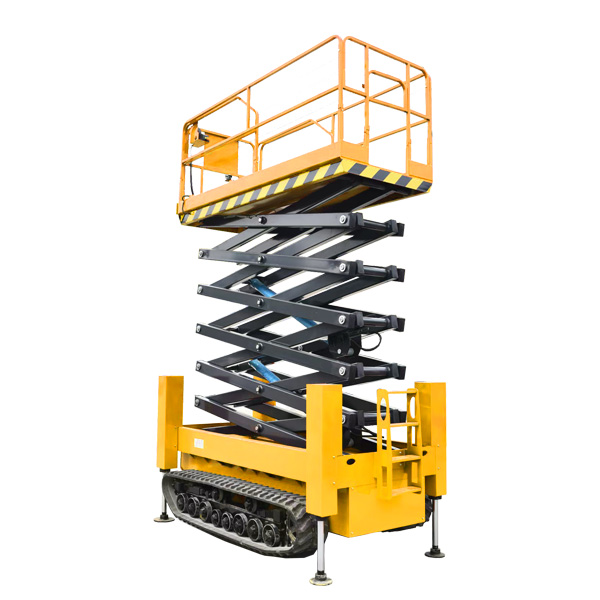

6-14m Tracked Self Propelled Scissor Lift

High Level Tracked Scissor Lift adopts a tracked walking system with a small ground contact pressure, enabling it to travel on various complex terrains such as sandy areas, muddy fields, snowy regions, and rugged mountain roads. The tracks can achieve in-situ steering with a small turning radius, allowing for flexible operation in narrow spaces. Scissor Crawler Aerial Work Platform is equipped with a retractable boom system that can lift the work platform to different heights, expanding the horizontal working range. It usually employs a user-friendly control system with an intuitive and easy-to-understand operation interface. Some functions can be operated with just one button, reducing the labor intensity and skill requirements for operators. Self Propelled Scissor Lift Platform is equipped with a variety of safety protection devices, such as overload protection, tilt protection, emergency descent devices, safety alarm devices, etc. Tracked Scissor Lifting Operation Platform is suitable for the installation and maintenance of tall equipment in factories, the construction, decoration, curtain wall installation and cleaning of building exteriors, as well as the handling of materials and aerial work for personnel during the construction stage of buildings. It is an efficient, flexible aerial work equipment that can adapt to a variety of complex working conditions. For special environments such as high temperatures, low temperatures, high altitudes, and flammable and explosive areas, corresponding protective measures and equipment configurations can be customized.

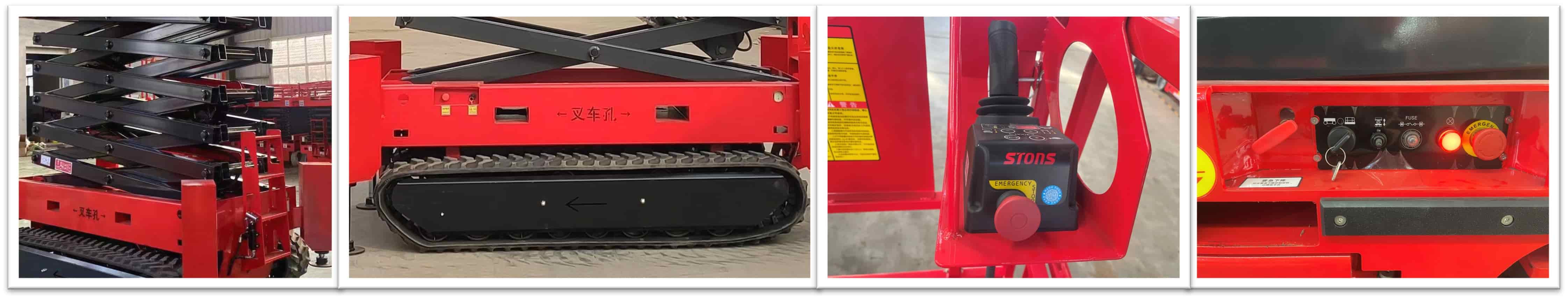

Details & Advantages

Self Propelled Mobile Work Platform Manufacturer

1) Strong terrain adaptability: It adopts a tracked walking system with a small ground contact pressure, enabling it to travel on various complex terrains such as sandy areas, muddy fields, snowy regions, and rugged mountain roads, and easily pass through all kinds of obstacles.

2) Flexible steering: The tracks can achieve in-situ steering with a small turning radius, allowing it to turn freely in narrow corridors and spaces, which is convenient for operation.

3) Wide working range: Equipped with a retractable boom system, it can lift the work platform to different heights, and the working device can be extended, expanding the horizontal working range and meeting the working requirements of different heights and angles.

4) Good stability: The tracked chassis provides good stability, which can effectively reduce shaking and tilting during aerial work, ensuring the safety of operators and the smooth progress of the work.

5) Easy to operate: It adopts a user-friendly control system. The operation interface is intuitive and easy to understand, and some functions can be operated with just one button, reducing the labor intensity and skill requirements for operators.

6) High safety performance: It is equipped with a variety of safety protection devices, such as overload protection, tilt protection, emergency descent devices, safety alarm devices, etc., providing comprehensive safety protection for operators.

7) High efficiency and flexibility: It can not only quickly move to the work site but also quickly adjust the working posture, improving work efficiency and being suitable for a variety of complex working conditions.

8) High degree of customization: For special environments such as high temperatures, low temperatures, high altitudes, and flammable and explosive areas, corresponding protective measures and equipment configurations can be customized to meet the special needs of different users.


FAQ

1) What is terms of payment?

T/T, 30% deposit, 70% balance paid before shipment.

2) What is the inspection method?

Product photos, packaging, videos, and any other inspection methods required by customers.

3) How is the product packaged?

Naked, packaging film, wooden box, iron frame, and other required packaging methods.

4) How long is the warranty period?

18 months. Spare parts are provided free of charge during the warranty period.

Technical Parameter

Model   ZCSL06 ZCSL08 ZCSL10 ZCSL12 ZCSL14
Power Type   Electric Electric Electric Electric Electric
Rated Capacity kg 230 320 320 320 320
Rated Capacity(Extension platform) kg 113 113 113 113 113
Wieght kg 1620 3150 3200 3700 4000
Max.Working Height mm 8000 10000 12000 14000 16000
Max.Platform Height mm 6000 8000 10000 12000 14000
Platform Size(L*W) mm 1670X745 2270X1110 2270X1110 2270X1110 2645X1115
Extension Platform Length mm 900 900 900 900 900
Overall Size(L*W*H,Guardrail Folded) mm 1975X1200X1740 2530X1390X1910 2530X1390X2040 2730X1660X2165 3035X1820X2290
Overall Size(L*W*H,Guardrail Deployed) mm 1975X1200X2020 2530X1390X2450 2530X1390X2570 2730X1660X2695 3035X1820X2820
Tire Type   Crawler Crawler Crawler Crawler Crawler
Speed Drive Km/h 1.8 1.8 1.8 1.8 1.8
Lift m/min 5 5 5 5 5
Fall m/min 2.3 2.3 2.3 2.3 2.3
Max. Working Angel ° 1.5/3 1.5/3 1.5/3 1.5/3 1.5/3
Max.gradeability % 30 30 30 30 30
