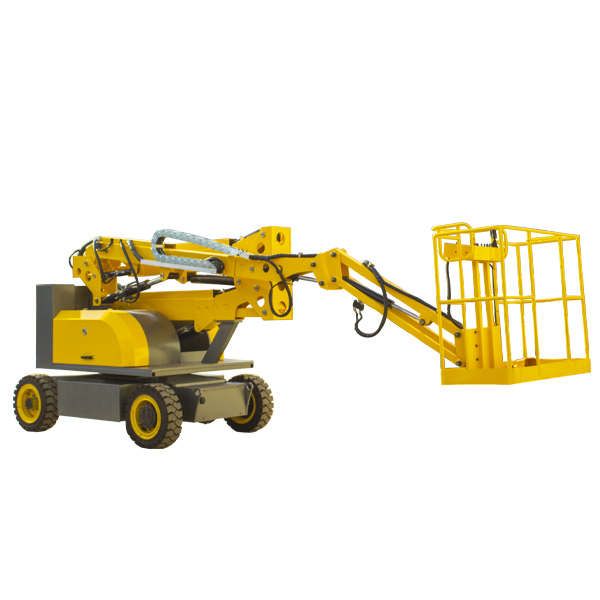

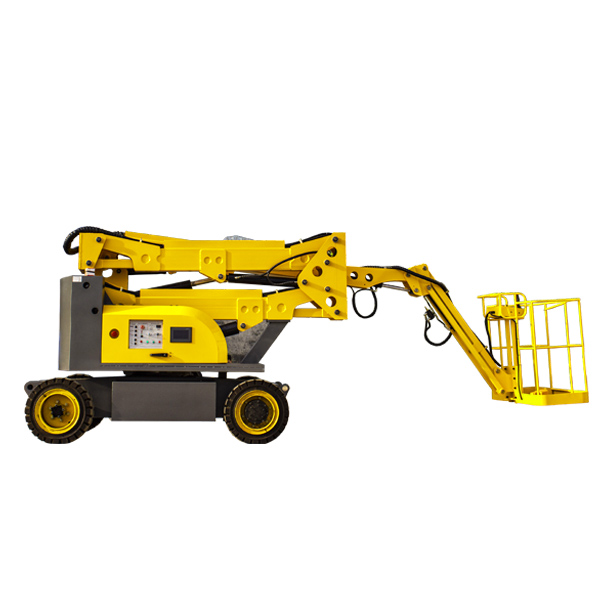

8-16m Articulated Boom Lift ZABL Series

Articulated Boom Lift Aerial Platform is positioned to provide flexible, efficient, and safe solutions for various aerial work. It is suitable for scenarios where aerial work needs to be carried out in environments with complex terrains or obstacles. It can reach greater heights and longer distances within limited spaces, providing support for aerial work in multiple industries such as construction, industry, municipal engineering, and the power sector.

  • Model No :

    ZABL08/10/12/14/16
  • Platform Capacity :

    230kg
  • Maximum Working Height :

    10-18m
  • Horizontal Reach Distance :

    4-10m
  • Power Type :

    Battery/Engine
  • MOQ :

    1
  • Lead Time :

    20-25 Days

8-16m Articulated Boom Lift

Electric Articulating Boom Lift Aerial Platform has multiple power options, which is suitable for large-scale outdoor operations and scenarios with high requirements for battery life or fuel endurance. Articulated Boom Man Lift Outdoor is equipped with multiple sections of foldable boom arms, connected through multiple pivot points, enabling flexible rotation and extension in both horizontal and vertical directions, and it can achieve a relatively large working height and horizontal extension distance. Portable Aerial Boom Lift Platform is equipped with an advanced operation control system. Operators can easily control the lifting, rotation, and extension movements of the equipment through joysticks or buttons either on the ground or on the operation platform. It also has an intelligent control system, which can realize functions such as automatic diagnosis and fault alarm. 4WD Mobile Boom Lift Equipment is equipped with a stable chassis and outrigger system, featuring flexibility, mobility, stability, and reliability. It is widely used in construction projects, industrial maintenance, municipal engineering, and the power industry. Special customization solutions are available, including explosion-proof design, operation in low-temperature environments, and special working attachments.


Details & Advantages

Narrow Boom Lift Working Platform

1) Flexible mobility: It adopts a multi-section articulated arm structure, connected through multiple pivot points, and can flexibly rotate and extend in both horizontal and vertical directions, easily bypassing obstacles.

2) Large working range: It can achieve a relatively large working height and horizontal extension distance, meeting the needs of aerial work at different heights and distances.

3) Good stability: Equipped with a stable chassis and outrigger system, it can provide reliable support during operation. Some models also have an automatic leveling function, which can keep the work platform horizontal on uneven ground.

4) Multiple power options: There are various power forms such as diesel and electricity. Diesel engines are powerful and suitable for large-scale outdoor operations with high requirements for endurance; electric drive has zero emissions and low noise, making it suitable for indoor environments or places with high environmental requirements.

5) Convenient operation and control: Equipped with an advanced operation control system, operators can easily control the lifting, rotation, and extension movements of the equipment through joysticks or buttons either on the ground or on the work platform. The intelligent control system also has functions such as automatic diagnosis and fault alarm.

6) High load-bearing capacity: Generally, it can carry 2 to 3 people and relevant tools and materials, meeting the needs of multiple people working simultaneously or carrying heavier tools and equipment.

7) Good driving performance: Adopting four-wheel drive, it can travel on different terrains, such as rough construction sites and muddy roads, and has a certain climbing ability, enabling it to operate safely on sloped ground.

8) High degree of customization: For special operation requirements, a variety of customization solutions can be provided, such as explosion-proof design, operation in low-temperature environments, and customization of special work platforms.


FAQ

1) What is terms of payment?

T/T, 30% deposit, 70% balance paid before shipment.

2) What is the inspection method?

Product photos, packaging, videos, and any other inspection methods required by customers.

3) How is the product packaged?

Naked, packaging film, wooden box, iron frame, and other required packaging methods.

4) How long is the warranty period?

18 months. Spare parts are provided free of charge during the warranty period.

Operation Video


Technical Parameter

Model   ZABL14
Power Type   Electric/Diesel
Rated Capacity kg 230
Wheelbase mm 2000
Wieght kg 6500
Max.Working Height mm 16000
Max.Platform Height mm 14000
Max.Reach Distance   7450
Platform Size(L*W) mm 1530X760
Overall Size(L*W*H, Stowed) mm 6560X1750X2000
Turning Radius(Inside/Outside) mm 800/3500
Min.Ground Clearance mm 43
Turntable Rotation ° 355
Platfprm Rotation ° 160
Max.gradeability % 30
