18-24m Articulated Boom Lift ZABL Series

Aerial Articulated Boom Man Lift is positioned in the medium-to-large aerial work field, aiming to provide efficient, precise and safe aerial work solutions for numerous industries. It can not only meet the construction and maintenance requirements within the range of conventional building heights, but also, with its unique design, be applicable to working environments with a certain degree of complexity, filling the gap between traditional climbing equipment and large professional aerial machinery.

  • Model No :

    ZABL18/20/22/24
  • Platform Capacity :

    230kg
  • Maximum Working Height :

    20-26m
  • Horizontal Reach Distance :

    12-16m
  • Power Type :

    Battery/Engine
  • MOQ :

    1
  • Lead Time :

    20-25 Days

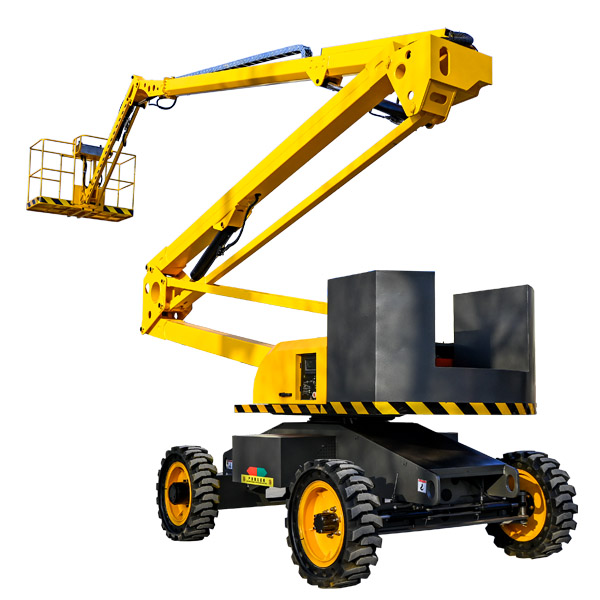

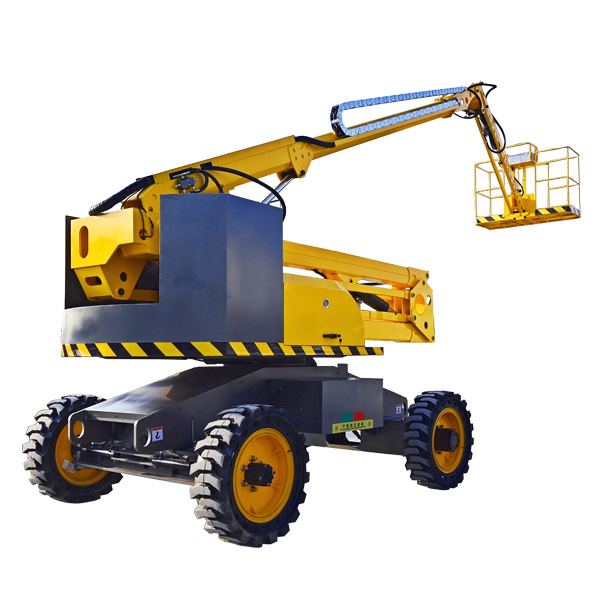

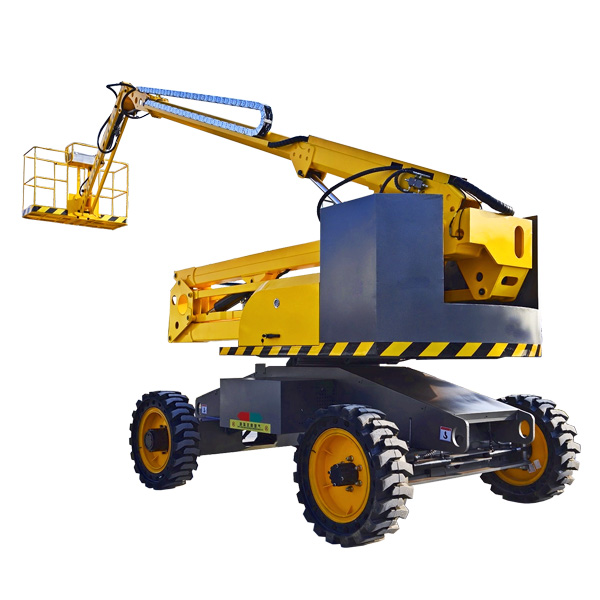

18-24m Articulated Boom Lift
Aerial Articulated Boom Lift features a unique articulated arm structure and excellent spatial adaptability. It can flexibly bend at multiple angles in both vertical and horizontal directions. The compact exterior design combined with the flexible control of the articulated arm enables it to easily enter and exit narrow passages and other restricted spaces, occupying a crucial position in the aerial work equipment market. Depending on different usage scenarios, Hydraulic Working Platform Boom Lift can be equipped with a diesel engine or an electric drive system. Narrow Industrial Articulating Boom Lift employs high-precision hydraulic cylinders to drive the lifting and extension movements of the boom, coordinated with advanced load-sensing technology. Meanwhile, it has a sturdy and optimized chassis structure, paired with a hydraulic outrigger system that can adjust height and unfold at multiple angles, ensuring smooth and stable movements even when carrying the rated load. Construction Self Propelled Boom Lift is widely favored in fields such as construction, industrial facility maintenance, and municipal engineering. For special customization solutions, in view of explosive and flammable working environments like petrochemical and natural gas extraction, the equipment can be customized to be explosion-proof. For operations in cold regions and hot and humid special areas, specially treated components are used. If there are special aerial work requirements, a working platform with insulating protection functions and auxiliary devices can be customized.

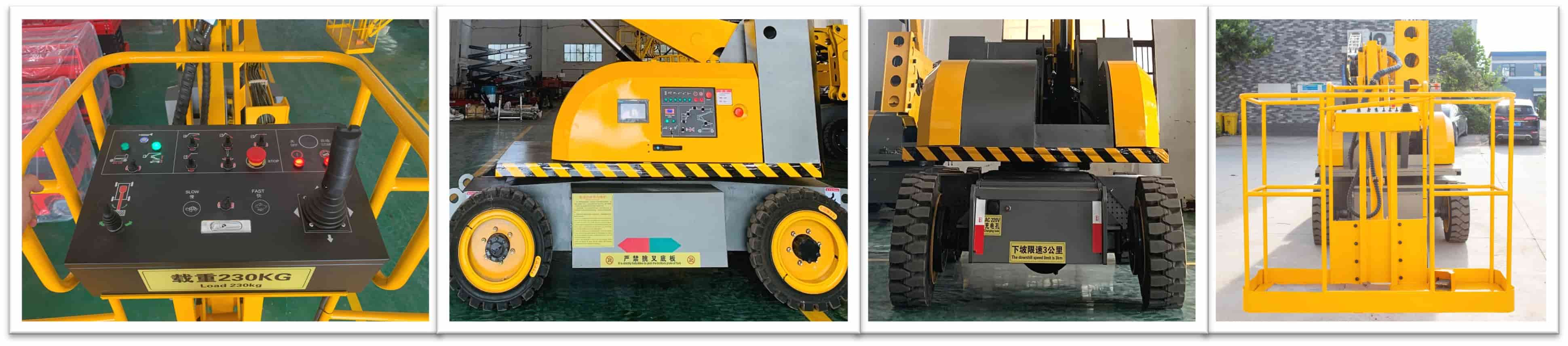

Details & Advantages

Electric Power Self Propelled Boom Lift

1) Working height and range: It has a maximum working height of 24 meters. The articulated arm structure design enables a relatively large horizontal extension distance, allowing flexible operations at different angles.

2) Flexible mobility: It adopts a multi-section articulated arm structure and is connected through multiple pivot points, enabling flexible rotation, bending and extension in both horizontal and vertical directions.

3) Stability: It is equipped with a stable chassis and outrigger system. Some models also have an automatic leveling function, which can keep the work platform level even on uneven ground.

4) Diversity of power options: Usually, there are multiple power forms such as diesel and electricity available. Diesel engines are powerful and suitable for large-scale outdoor operations. Electric drives have the advantages of zero emissions and low noise.

5) Convenient operation: It is equipped with an advanced operation control system, and the lifting, rotation and extension movements of the equipment can be easily controlled through joysticks or buttons. Meanwhile, the intelligent control system also has functions such as automatic diagnosis and fault alarm.

6) Load-bearing capacity: Generally, it can carry 2 to 3 people and relevant tools and materials, with a relatively high load-bearing capacity.

7) Driving performance: It adopts four-wheel drive and has good driving performance. It can travel on different terrains, such as rough construction sites and muddy roads, and has a certain climbing ability.

8) Customizability: For special operation requirements, a variety of customization solutions can be provided. Such as explosion-proof design, low-temperature operation, and special work platforms.


FAQ

1) What is terms of payment?

T/T, 30% deposit, 70% balance paid before shipment.

2) What is the inspection method?

Product photos, packaging, videos, and any other inspection methods required by customers.

3) How is the product packaged?

Naked, packaging film, wooden box, iron frame, and other required packaging methods.

4) How long is the warranty period?

18 months. Spare parts are provided free of charge during the warranty period.

Operation Video


Technical Parameter

Model   ZABL18
Power Type   Electric/Diesel
Rated Capacity kg 230
Wheelbase mm 2450
Wieght kg 10500
Max.Working Height mm 20200
Max.Platform Height mm 18200
Max.Reach Distance   12000
Platform Size(L*W) mm 1530X760
Overall Size(L*W*H, Stowed) mm 8500x2300x2500
Turning Radius(Inside/Outside) mm 3400/6200
Min.Ground Clearance mm 43
Turntable Rotation ° 360
Platfprm Rotation ° 160
Max.gradeability % 45
