1.5-2.0 Ton Electric Counterbalance Reach Truck ERD Series

Electric Counterbalance Reach Truck is precisely positioned as an efficient handling tool for narrow aisles and dense storage scenarios in indoor high racks. It plays a huge role in large-scale e-commerce warehouses, third-party logistics sorting centers, in the raw material and semi-finished product distribution processes in production workshops, and in the replenishment processes between the warehouses and sales areas of supermarkets and convenience stores.

  • Model No :

    ERD15/20
  • Load Capacity :

    1000-1600kg
  • Lift Height :

    1600-6000mm
  • Drive Type :

    AC
  • Battery :

    Lead-acid/Lithium
  • MOQ :

    1
  • Lead Time :

    15-20 Days

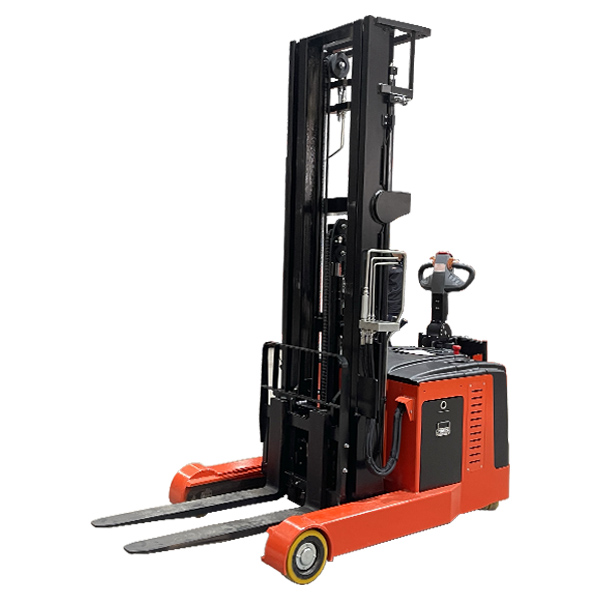

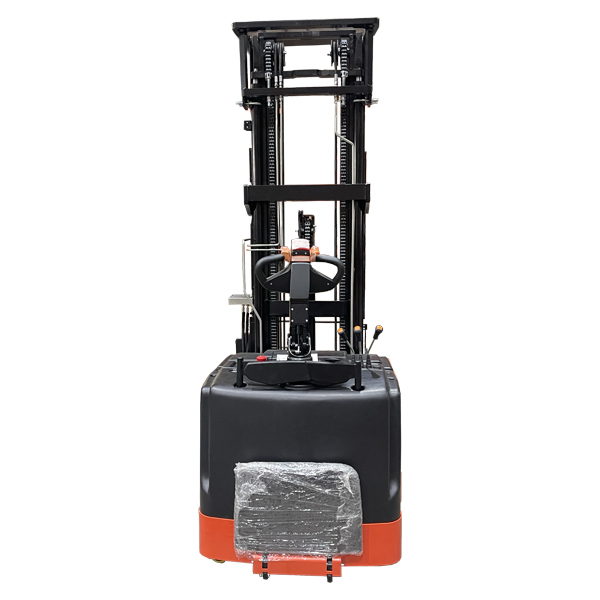

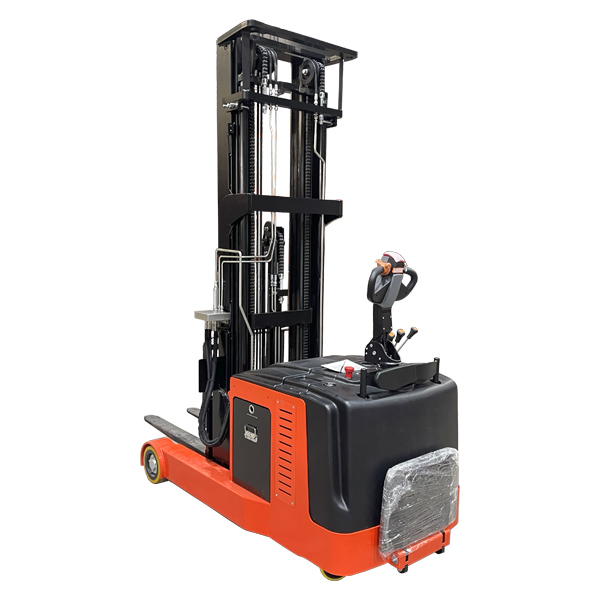

1.5-2.0 Ton Electric Counterbalance Reach Truck
Standing Electric Reach Lift Truck is specifically designed for working conditions that require frequent vertical handling, loading and unloading of goods in limited spaces. It fills the gap of traditional forklifts' insufficient flexibility in narrow aisles, and serves as a key equipment for improving space utilization and operational efficiency in modern logistics warehousing, raw material distribution in production workshops, and back-end replenishment in supermarket retailing. MHE Counterbalance Reach Truck features a unique driving standing position. The operator stands at the rear of the vehicle, enjoying a wide field of vision and being able to clearly observe the situation of the forks and racks. Meanwhile, with a compact body design, it has an extremely small turning radius, enabling flexible steering and precise parking in limited spaces, thus maximizing the utilization of the warehousing space. The maximum lifting height of Electric Warehouse Reach Truck Forklift can reach up to 6 meters, allowing for effortless access to multi-layer racks. Moreover, the lifting speed is smooth and efficient, and it can maintain stable vertical movement even when fully loaded, ensuring the safe handling of goods. According to customers' special working requirements, special customization solutions can be provided for Electric Battery Reach Truck. For example, it can be customized for cold chain logistics operations in cold storage, as well as for operations in flammable and explosive environments such as chemical plants and gas facilities. Additionally, special specifications of pallets and attachments can be customized.

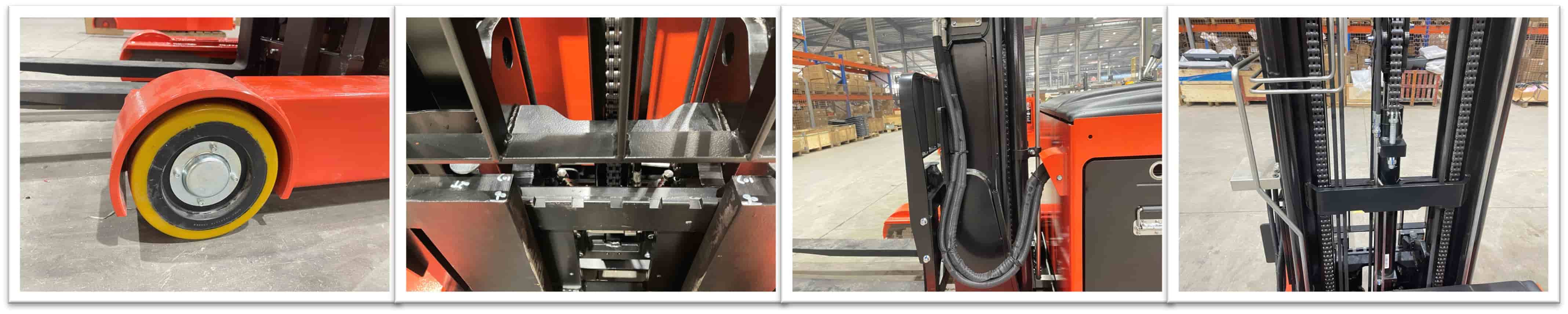

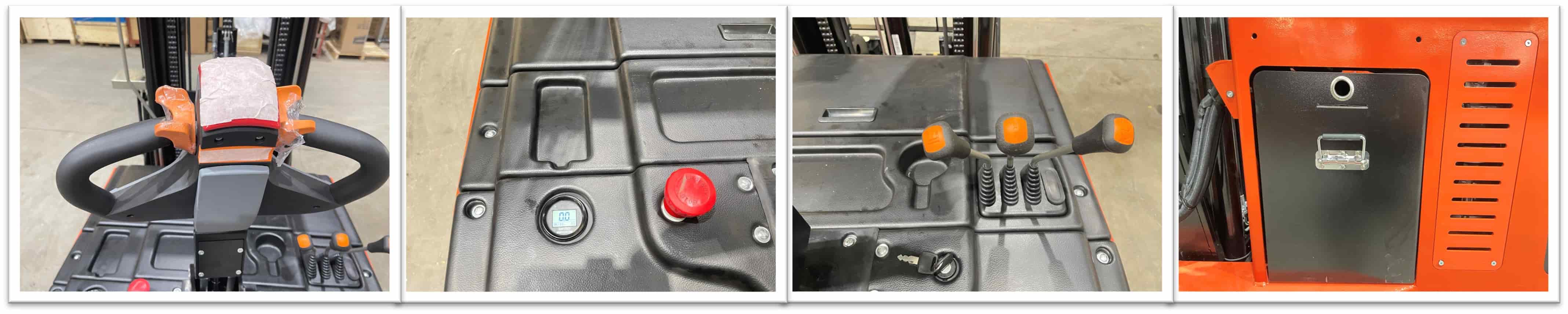

Details & Advantages

1.5 Ton Lithium Electric Reach Truck

Narrow Aisle Counterbalance Reach Stacker Truck

1) Precise and flexible control: Equipped with an advanced electric steering system, it features light and sensitive steering, and the steering wheel offers an excellent handling feel. Whether it is making minor angle adjustments or making large-scale turns, it can be accurately achieved.

2) Extremely small turning radius: Thanks to the unique wheel layout, suspension system, and steering design, it can easily complete a 180-degree turn or even a smaller angle turn in a narrow space, enabling quick U-turns and flexible steering.

3) Efficient electric drive: Driven by a high-performance electric motor, it enables the vehicle to move forward, backward, and the forks to lift and lower. The electric motor has the characteristics of large starting torque and rapid response. Even when fully loaded, it can start quickly and smoothly, and the acceleration process is smooth.

4) Advantages of energy conservation and environmental protection: It has zero emissions during operation and does not produce harmful gases, which not only avoids the pollution of indoor air quality.

5) Stable lifting system: The maximum lifting height generally can reach up to 6 meters, which can meet the operation requirements of most indoor high racks. The lifting mechanism is made of high-strength steel and is equipped with a precise hydraulic control system, ensuring that the lifting speed is stable and controllable.

6) Multiple safety protections: It is equipped with a variety of safety devices, such as an overload protection system and an emergency braking system. In addition, there are eye-catching warning signs around the front and rear of the vehicle body and the forks.


FAQ

1) What is terms of payment?

T/T, 30% deposit, 70% balance paid before shipment.

2) What is the inspection method?

Product photos, packaging, videos, and any other inspection methods required by customers.

3) How is the product packaged?

Naked, packaging film, wooden box, iron frame, and other required packaging methods.

4) How long is the warranty period?

18 months. Spare parts are provided free of charge during the warranty period.

Operation Video


Technical Parameter

Model   ERD15 ERD20
Power Type   Electric Electric
Operation Type   Stand-on Stand-on
Rated Capacity kg 1500 2000
Load Center  mm 600 500
Front Overhang mm 356 325
Wheelbase mm 1355 1550
Wieght kg 2010 2750
Size Of Fork LxWxT mm 1150x100x35 1070x120x40
Fork Outter Width mm 200-740 200-715
Tire Type   PU PU
Size Of Tire Driving Tire 1 φ230x75 φ250x127
Bearing Tire 2 φ210x70 φ250x120
Balance Tire 4 φ149x60 φ149x60
Tire Distance Bearing Tire mm 960 960
Overal Length mm 2252 2530
Overal Width mm 900 940
Max./Min.Handle Height mm 1050/1450 1075/1500
Lifting Height mm 3000 3000
Free Lifting Height mm 135 135
Mast Tilt ° 3/5 3/5
Reach Distance mm 500 500
Mast Closed Height mm 2130 1995
Mast Extended Height mm 4040 3860
Turning Radius mm 1670 1800
Aisle Width:1000x1200 Across Fork mm 2790 2900
Aisle Width:800x1200 Across Fork mm 2840 2960
Min.Ground Clearance mm 45 50
Speed Travel Load Km/h 5 5
Without load Km/h 5.5 5.5
  Lift Load mm/s 95 90
  Without load mm/s 130 120
  Fall Load mm/s 100 130
  Without load mm/s 100 120
Max.gradeability Load/Without Load % 6/8 6/8
Service Brake   Electromagnetic Electromagnetic
Motor Drive Motor, 60 Minute Rating kw 1.5 2.5
Lift Motor, Rating At S315% kw 3 4.5
Battery Type   Lead-acid Lead-acid
Battery Capacity v/ah 24/270 24/280
Drive Control Type   AC AC
Steering Type   Electric(EPS) Electric(EPS)
