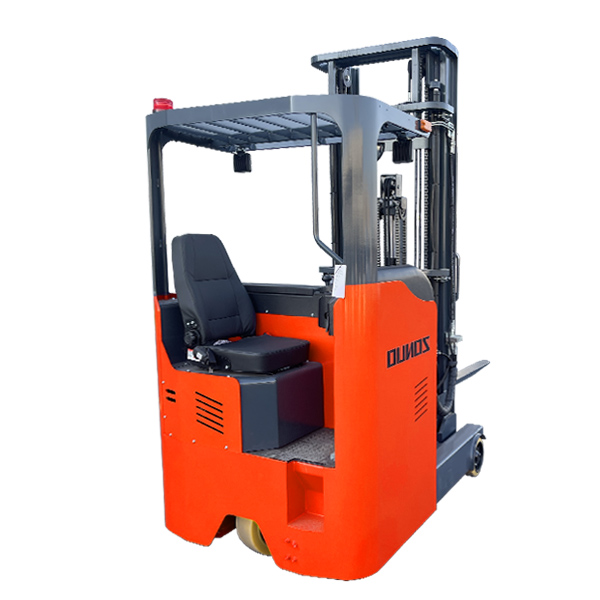

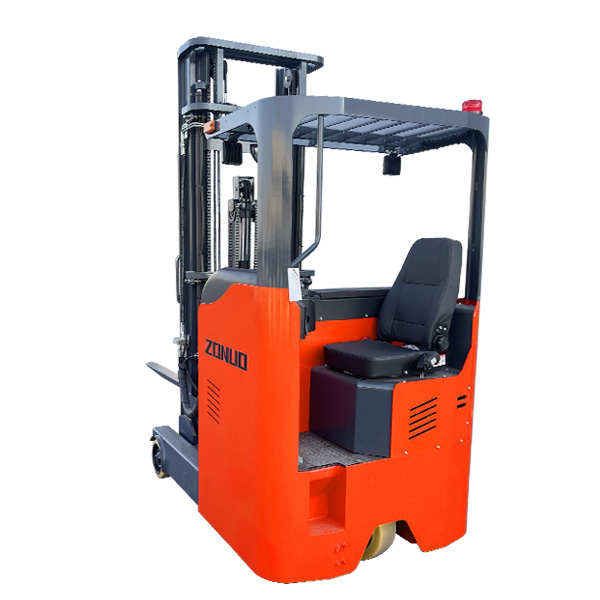

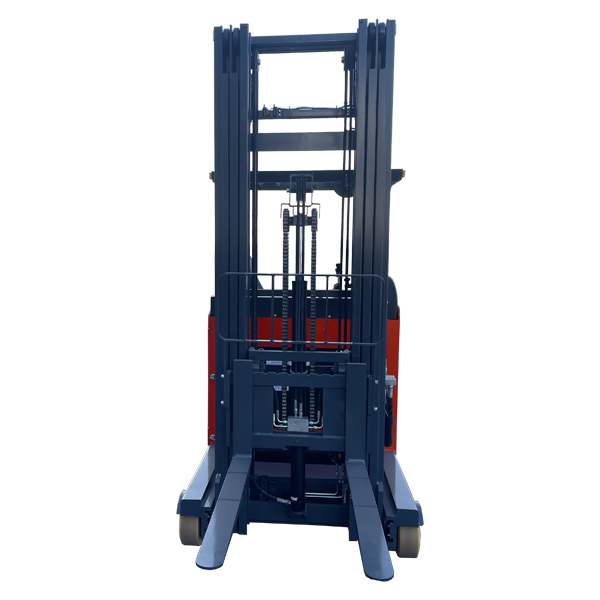

1.5-3.0 Ton Seated Electric Reach Truck ERM Series

Sit Down Electric Reach Truck combines the advantages of the counterbalance electric forklift and the stacker. Driven by a large-capacity battery, it features flexible operation, environmental protection, energy conservation, and high stability. It is widely applied in the warehousing and logistics industry, manufacturing industry, commercial and trade industry, etc.

  • Model No :

    ERM15/20/25/30
  • Load Capacity :

    1500-3000kg
  • Lift Height :

    3000-12000mm
  • Drive Type :

    AC
  • Battery :

    Lead-acid/Lithium
  • MOQ :

    1
  • Lead Time :

    20-25 Days

1.5-3.0 Ton Seated Electric Reach Truck

Electric Sit On Reach Stacker Truck belongs to one type of warehousing forklift, mainly used for loading, unloading, stacking and short-distance transportation operations of palletized goods in pieces. During operation, the gantry drives the fork to move forward and extends beyond the front wheels to pick up or put down the goods. When moving, the fork retracts with the goods. Driver Seated Reach Pallet Truck is driven by AC, adopts electronic steering, and is equipped with a wireless video display function and a side shifter. The body of Electric Power Reach Lift Truck is compactly designed, with a small turning radius. At the same time, it uses an electronic control system, with a reasonable layout of operation buttons, and is equipped with a steering wheel, control handle, etc. The driver can easily control the vehicle's forward, backward, turning, lifting, lowering and other movements, and the maximum lifting height can reach 12 meters or even higher. According to the work requirements of Lithium Battery Operated Reach Truck, various attachments can be added, such as side shifters, rotators, clamps, paper roll clamps, etc. For some flammable and explosive places, such as the chemical, petroleum, natural gas and other industries, explosion-proof design can be carried out. When working in a low-temperature environment, special low-temperature batteries, heating devices, thermal insulation materials, etc. can be used.

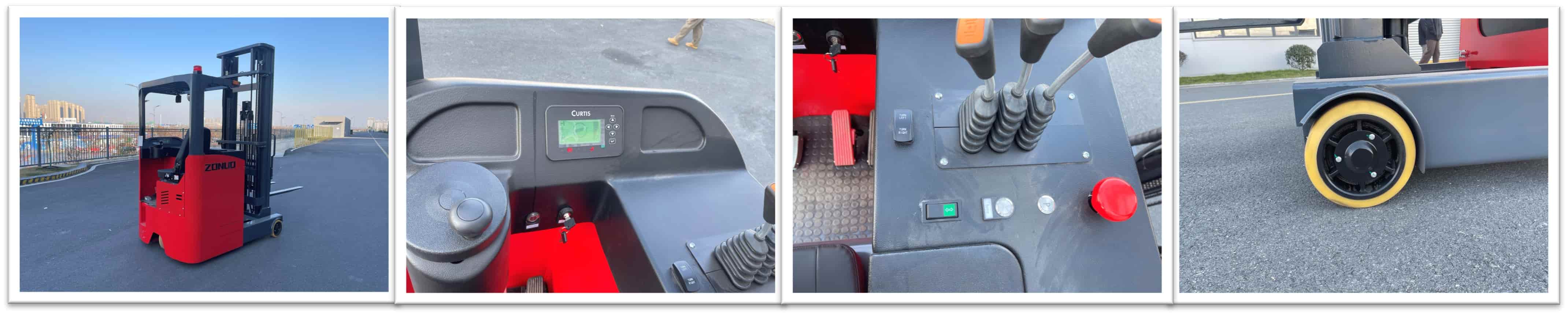

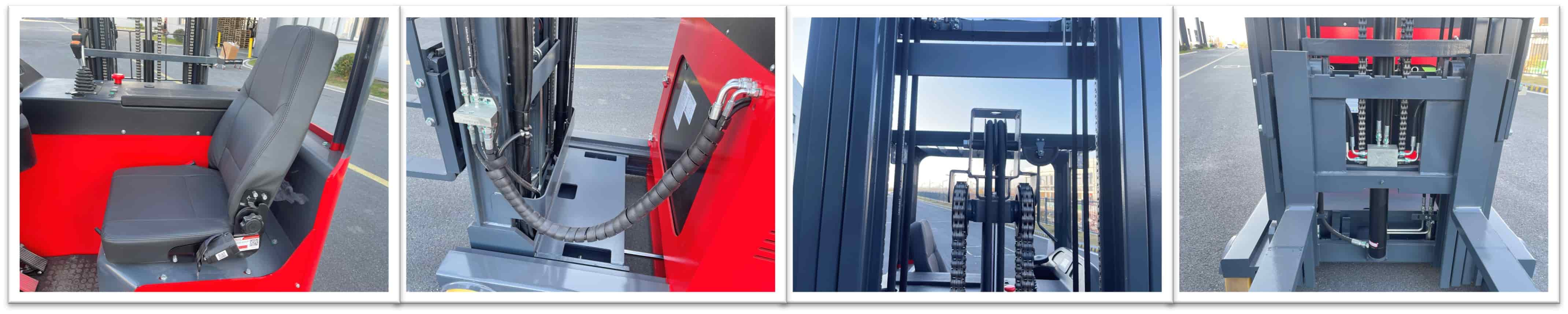

Details & Advantages

Warehouse Long Reach Lift Truck

High Electric Powered Reach Truck Manufacturer

1) Flexible operation: With a unique forward-moving design, the gantry can drive the forks to extend beyond the front wheels to pick up or put down goods, and the forks retract with the goods during movement. This design enables the vehicle not to require a large turning space like a counterbalance forklift, greatly improving the utilization rate of warehouse space.

2) Environmental protection and energy conservation: Powered by electricity, it reduces environmental pollution. Meanwhile, the electric drive system has a relatively high energy conversion efficiency, and the operation cost is relatively low.

3) High stability: The vehicle has a reasonable center of gravity design and is usually equipped with an advanced electronic stability system. Even at a relatively high lifting height, it can maintain good stability.

4) Comfortable operation: Adopting a seated design, it provides a comfortable operating environment for the driver. It is equipped with an ergonomic seat, steering wheel, and control handle, and the operation buttons are reasonably arranged. The driver can easily control the vehicle's forward, backward, turning, lifting, lowering and other movements, reducing labor intensity and improving work efficiency.

5) Efficient operation: The large-capacity battery drive system can provide continuous power support, ensuring that the vehicle will not experience insufficient power during long working hours. At the same time, the vehicle has a relatively fast lifting and running speed, which can quickly complete the loading, unloading, and handling tasks of goods, improving the operation efficiency of warehousing and logistics.

6) Versatility: According to different work requirements, various attachments can be installed, such as side shifters, rotators, clamps, paper roll clamps, etc., to adapt to the handling and stacking operations of different types of goods, greatly expanding the application range of the vehicle.

7) High degree of intelligence: Some seated electric reach trucks are equipped with advanced electronic control systems and wireless video display functions. The driver can keep abreast of the vehicle's running status and the location of goods in real time through the display screen, improving the accuracy and safety of operations.

8) Wide application range: It is widely used in various fields such as the warehousing and logistics industry, manufacturing industry, and commercial and trade industry. Whether in indoor warehouses or outdoor logistics distribution centers, it can give full play to its efficient handling and stacking functions.


FAQ

1) What is terms of payment?

T/T, 30% deposit, 70% balance paid before shipment.

2) What is the inspection method?

Product photos, packaging, videos, and any other inspection methods required by customers.

3) How is the product packaged?

Naked, packaging film, wooden box, iron frame, and other required packaging methods.

4) How long is the warranty period?

18 months. Spare parts are provided free of charge during the warranty period.

Operation Video


Technical Parameter

Model   ERM15 ERM20 ERM25 ERM30
Power Type   Electric Electric Electric Electric
Operation Type   Seated Seated Seated Seated
Rated Capacity kg 1500 2000 2500 3000
Load Center  mm 500 500 500 500
Front Overhang mm 180 180 185 185
Wheelbase mm 1350 1540 1620 1650
Wieght kg 2200 2540 3900 4300
Size Of Fork LxWxT mm 1070x100x35 1070x122x40 1070x125x45 1070x125x45
Fork Outter Width mm 210-705 240-705 240-705 240-840
Tire Type   PU PU PU PU
Size Of Tire Driving Tire mm φ230x75 φ230x75 φ382x142 φ382x142
Bearing Tire mm φ254x104 φ254x104 φ267x114 φ280x135
Balance Tire mm φ150x50 φ150x50 φ180x76 φ180x76
Tire Distance Bearing Tire mm 980 980 1180 1330
Overal Length mm 2250 2350 2475 2565
Overal Width mm 1100 1100 1270 1270
Guard Height mm 2090 2090 2180 2180
Lifting Height mm 3000 3000 3000 3000
Free Lifting Height mm 135 135 135 135
Mast Tilt ° 3/5 3/5 3/5 3/5
Reach Distance mm 500 600 515 610
Mast Closed Height mm 2120 2120 2120 2120
Mast Extended Height mm 3985 3985 3985 3985
Turning Radius mm 1600 1780 1900 1922
Aisle Width:1000x1200 Across Fork mm 2770 2870 3005 3110
Aisle Width:800x1200 Across Fork mm 2840 2950 3165 3195
Min.Ground Clearance mm 80 80 70 70
Speed Travel Load Km/h 5 5 8 10
Without load Km/h 6 6 10 12
  Lift Load mm/s 110 110 220 200
  Without load mm/s 135 135 340 300
  Fall Load mm/s 130 130 400 400
  Without load mm/s 85 85 300 300
Max.gradeability Load/Without Load % 4/8 4/8 10/10 10/10
Service Brake   Electromagnetic Electromagnetic Electromagnetic Electromagnetic
Motor Drive Motor, 60 Minute Rating kw 2.5 2.5 8 8
Lift Motor, Rating At S315% kw 3 3 15 15
Battery Type   Lead-acid Lead-acid Lead-acid Lead-acid
Battery Capacity v/ah 24/280 24/280 48/400 48/400
Drive Control Type   AC AC AC AC
Steering Type   Electric(EPS) Electric(EPS) Electric(EPS) Electric(EPS)
