5.0-7.0 Ton Diesel Forklift Truck FD Series

Diesel Counterbalance Forklift (Internal Combustion Forklift), suitable for loading, unloading, stacking and handling heavy loads outdoors, such as container loading and unloading at ports, raw material transfer in factories, and cargo inbound and outbound in logistics warehouses. OEM & ODM services and customized services for various attachments can be provided according to the special needs of customers.

  • Model No :

    FD50/60/70
  • Load Capacity :

    5000-7000kg
  • Lift Height :

    3000-8000mm
  • Transmission :

    Hydraulic(automatic)
  • Engine :

    Quanchai/Yuchai/Isuzu/Cummins
  • Optional :

    Customized Attachments
  • MOQ :

    1
  • Lead Time :

    15-25 Days

5.0-7.0 Ton Diesel Forklift Truck

5.0-7.0 Ton Diesel Powered Forklift are typically powered by an 85kw internal combustion engine, using diesel as fuel, with higher power and torque output, capable of handling heavier loads and more complex working environments. Heavy Duty Diesel Forklift has the advantages of strong power system, large engine power, good fuel adaptability, high transmission efficiency, good torque amplification performance and automatic adaptability, high working pressure, lifting, tilt and steering actions more powerful and rapid. Diesel Forklift Trucks can be customized with attachments, such as special forks, clamping devices, rotators, etc. which can also be customized in terms of the body and appearance, including color customization, warning signs, and protective devices. Heavy Lift Forklifts can also undergo optimization of the power system, equipped with engines of different brands and models, and the exhaust gas treatment system can be upgraded. Additionally, the electrical system can be upgraded, such as upgrading the lighting system and installing an intelligent monitoring system, and so on.

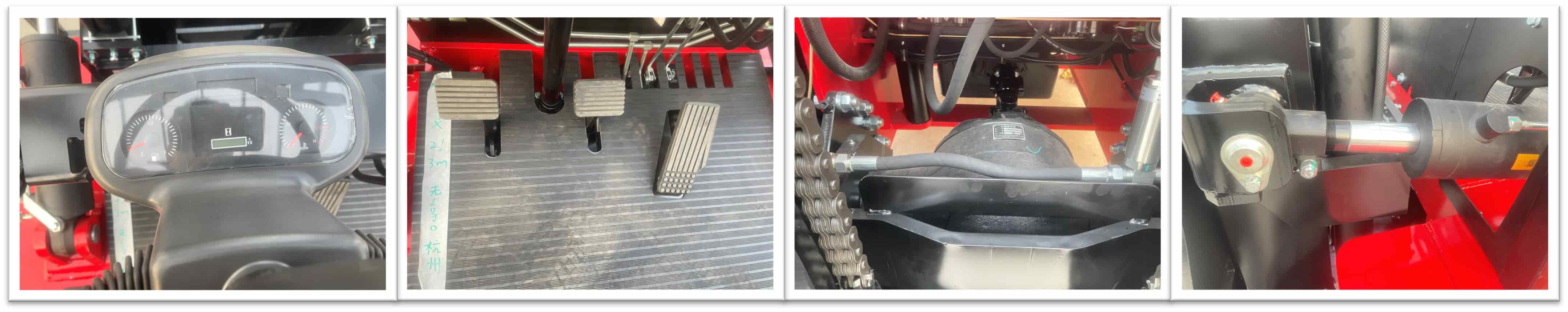

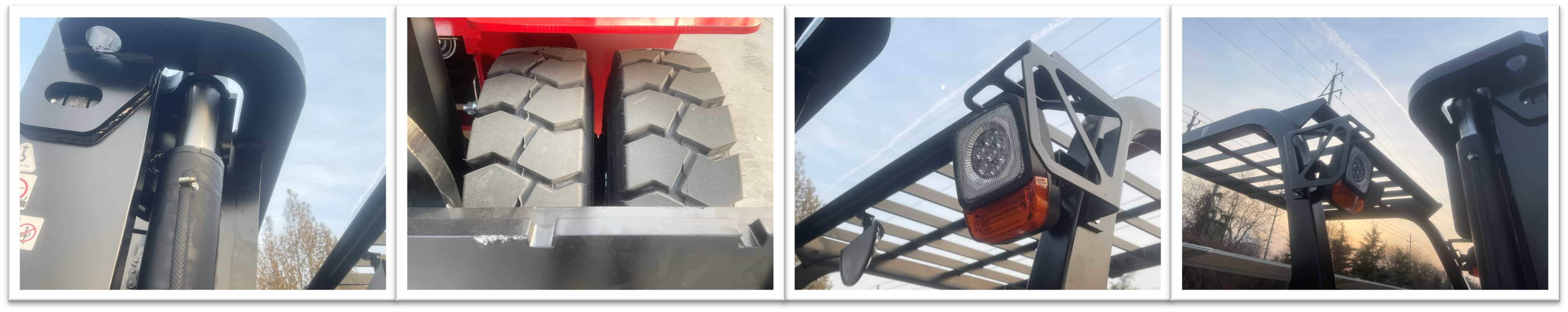

Deatails & Advantages

7 Ton Heavy Duty Diesel Forklift

Cummins Engine Diesel Forklift Trucks

1) Powerful power and transmission system: It is equipped with a high-power fuel engine, with a power generally ranging from 85 to 100kW, which can output a strong torque. The matching transmission system usually adopts hydraulic transmission. Hydraulic transmission has automatic adaptability, which can buffer impacts to a certain extent, reduce vibrations and wear, and make the operation of the forklift smoother.

2) Robust gantry structure: The gantry of this forklift is usually made of high-strength steel, featuring good rigidity and stability. The gantry generally has a multi-stage telescopic structure, which can be flexibly adjusted according to the stacking height of the goods and the operational requirements. The lifting height usually ranges from 3 to 8 meters. At the same time, the gantry is equipped with a reliable hydraulic system.

3) Durable frame and chassis: The frame of this forklift is welded with thickened steel plates, and the overall structure is sturdy and durable, capable of withstanding huge loads. The chassis is designed to be relatively wide, and the wheelbase and track width are also relatively large. This not only increases the stability of the forklift but also distributes the weight of the vehicle and the goods, reducing the pressure on the ground and enabling it to adapt to different working sites.

4) Flexible steering system: It adopts a hydraulic power-assisted steering system. The driver can achieve flexible steering of the forklift just by gently turning the steering wheel. This steering system has good handling performance and a small turning radius, allowing the forklift to operate in a narrow space.

5) Reliable braking system: It is equipped with a reliable braking system, usually including foot brakes and hand brakes. The foot brakes adopt a hydraulic braking method, which has a good braking effect and can stop the forklift within a short time; the hand brakes are used for braking when the vehicle is parked to prevent the vehicle from sliding. The braking system is also equipped with an automatic brake shoe wear compensation device to ensure that the braking performance is always in good condition and improve the safety of the operation.

6) Reasonable counterweight design: In order to balance the forward tipping moment generated when picking up goods, this forklift is designed with a large counterweight block at the rear. The weight is accurately calculated and designed according to the rated load of the forklift and the overall vehicle structure to ensure that the forklift can remain balanced during full-load operation, prevent the forklift from tipping forward and over, and ensure the safety and stability of the operation.


FAQ

1) What is terms of payment?

T/T, 30% deposit, 70% balance paid before shipment.

2) What is the inspection method?

Product photos, packaging, videos, and any other inspection methods required by customers.

3) How is the product packaged?

Naked, packaging film, wooden box, iron frame, and other required packaging methods.

4) How long is the warranty period?

18 months. Spare parts are provided free of charge during the warranty period.

Operation Video


Technical Parameter

Model   FD50 FD60 FD70
Power Type   Diesel Diesel Diesel
Operation Type   Seated Seated Seated
Rated Capacity kg 5000 6000 7000
Load Center  mm 600 600 600
Lifting Height mm 3000 3000 3000
Free Lift Height mm 200 200 200
Size Of Fork LxWxT mm 1220x150x60 1220x150x60 1220x150x65
Tire Type   Pneumatic Pneumatic Pneumatic
Size Of Tire Front   8.25-15-14PR 8.25-15-14PR 8.25-15-14PR
Rear   8.25-15-14PR 8.25-15-14PR 8.25-15-14PR
Mast Tilt Front/Rear ° 6/12 6/12 6/12
Overal Length (Without Fork) mm 3480 3480 3580
Overal Width mm 2000 2000 2000
Mast Closed Height mm 2500 2500 2500
Mast Extended Height mm 4430 4430 4430
Overhead Guard Height mm 2450 2450 2450
Turning Radius mm 3320 3320 3400
Front/Rear Overhang mm 590/640 590/640 590/740
Minimum Right Angle Channel Width mm 3030 3030 3110
Wheelbase mm 2250 2250 2250
Wheel Distance Front mm 1470 1470 1470
Rear mm 1710 1710 1710
Min.Ground Clearance mm 200 200 200
Speed Travel Load Km/h 25 25 25
Without load Km/h 30 30 30
Lift  Load mm/s 500 500 500
Without load mm/s 520 520 520
Fall Load mm/s 400 400 400
Without load mm/s 360 360 360
Max.traction KN 70 70 70
Max.gradeability Load/Without Load % 20/25 20/25 20/25
Weight kg 8330 8800 9550
Battery Voltage/Capacity V/AH 24/100 24/100 24/100
Engine Model   QuanchaiS45-115C41 QuanchaiS45-115C41 QuanchaiS45-115C41
Rated Power/Speed kW/rpm 85/2200 85/2200 85/2200
Max.torque/Speed N.m/rp 500/1600 500/1600 500/1600
Number Of Cylinders   4 4 4
Displacement   4.29 4.29 4.29
