8.0-12.0 Ton Diesel Forklift Truck FD Series

Diesel Powered Forklift (Heavy Duty Forklift) are mainly targeted at industrial fields with extremely high requirements for lifting capacity and complex and frequent working conditions. They are core equipment for tasks such as the loading, unloading, stacking, and transferring of large and heavy objects. Regarded as indispensable industrial vehicles for large factories, ports, and mines.

  • Model No :

    FD80/100/120
  • Load Capacity :

    8000-12000kg
  • Lift Height :

    3000-8000mm
  • Transmission :

    Hydraulic(automatic)
  • Engine :

    Quanchai/Yuchai/Isuzu/Cummins
  • Optional :

    Customized Attachments
  • MOQ :

    1
  • Lead Time :

    15-25 Days

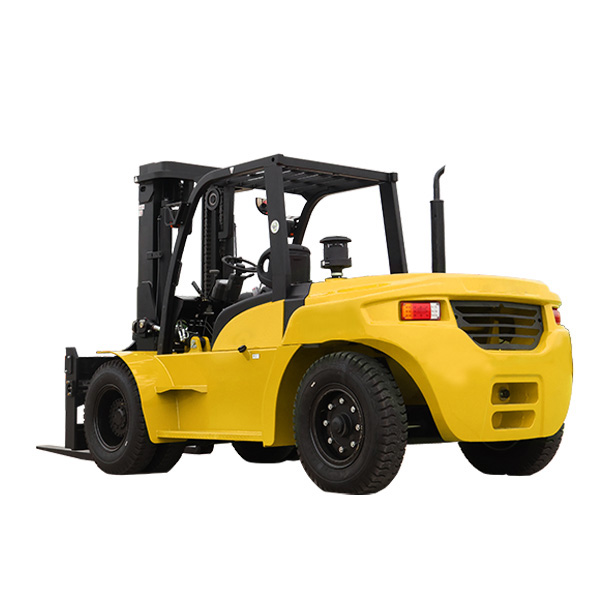

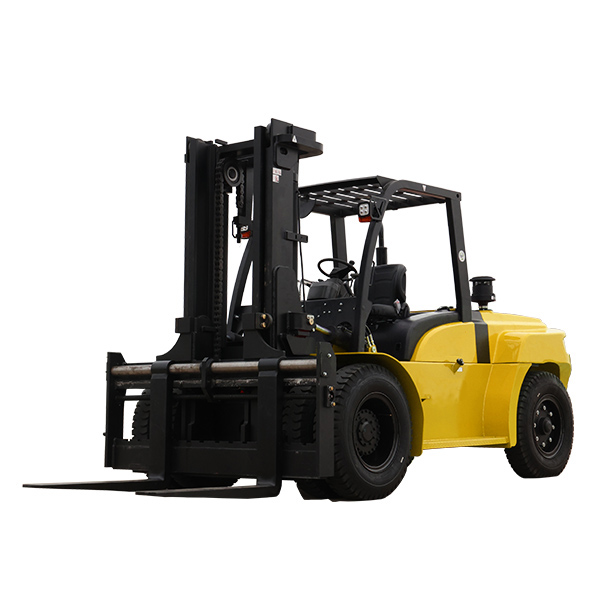

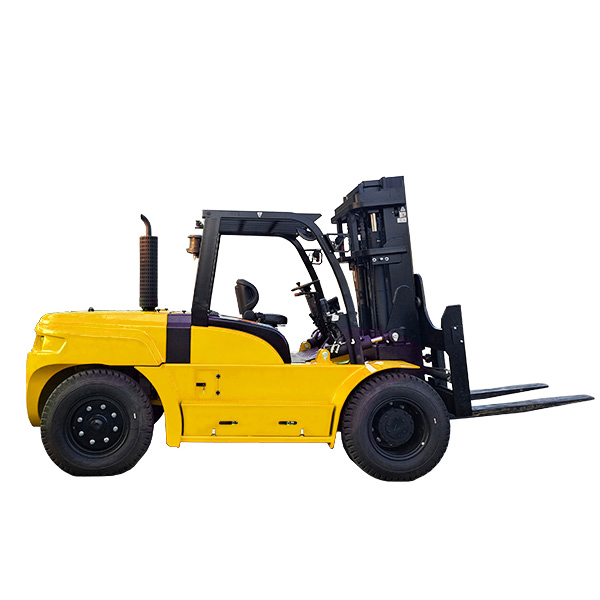

8.0-12.0 Ton Diesel Forklift Truck

8.0-12.0 Ton Diesel Powered Forklift is usually equipped with a diesel engine with a power output of 85-125kw. Through the optimization of the engine combustion technology and the energy recovery device of the hydraulic system, it can achieve a relatively reasonable fuel consumption while ensuring powerful power. Heavy Duty Forklift allows for the reasonable adjustment of the lifting speed and lowering speed. It adopts an advanced hydraulic control system to ensure efficient operation. When lowering, it is equipped with an adjustable throttle valve to stably control the lowering speed. The steering system of Diesel Forklift Trucks is flexible and precise. It is also equipped with multi-disc brakes and an Anti-lock Braking System (ABS) to ensure operational safety. Diesel Heavy Forklifts is widely used in fields such as port operations, the iron and steel metallurgy industry, large-scale construction sites, and mining operations. According to different working environments, it can be customized for explosion-proof applications, ultra-low temperature operations, harsh terrain conditions, as well as any OEM&ODM customization services.

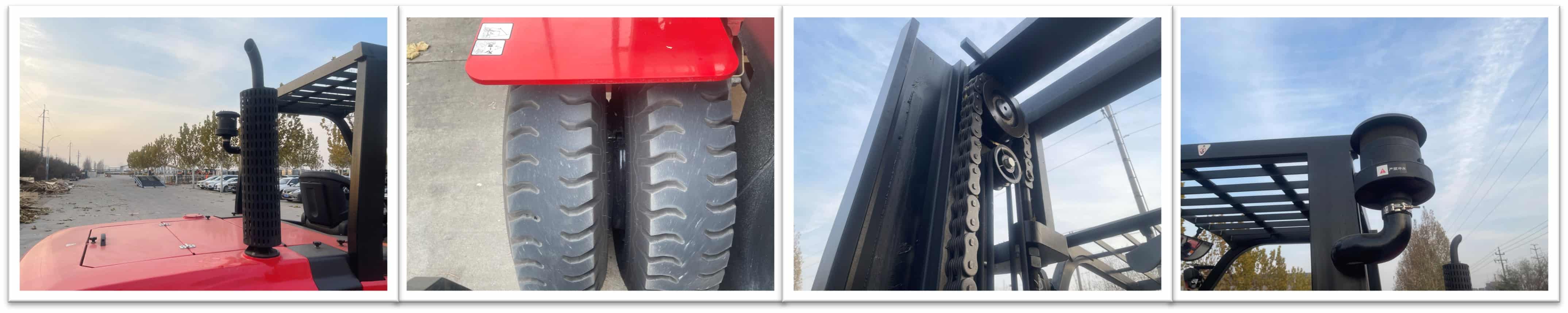

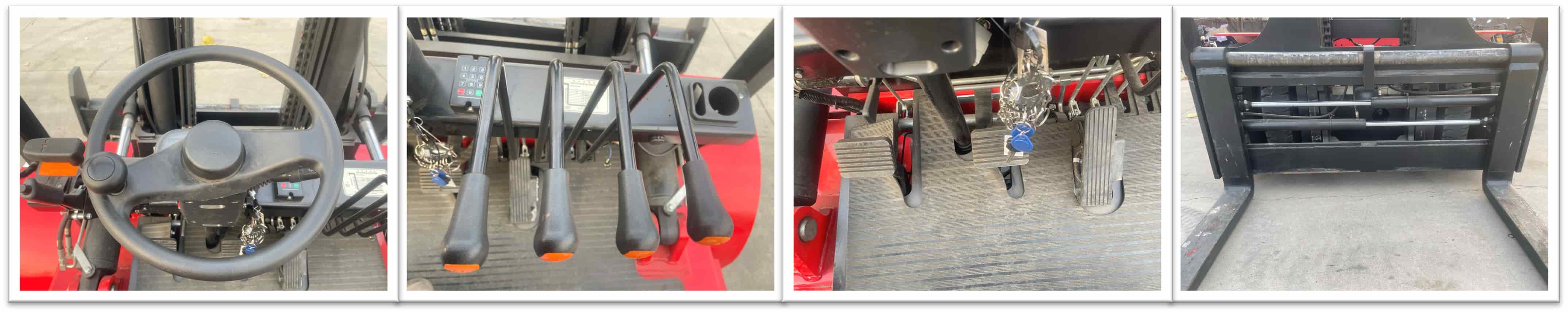

Deatails & Advantages

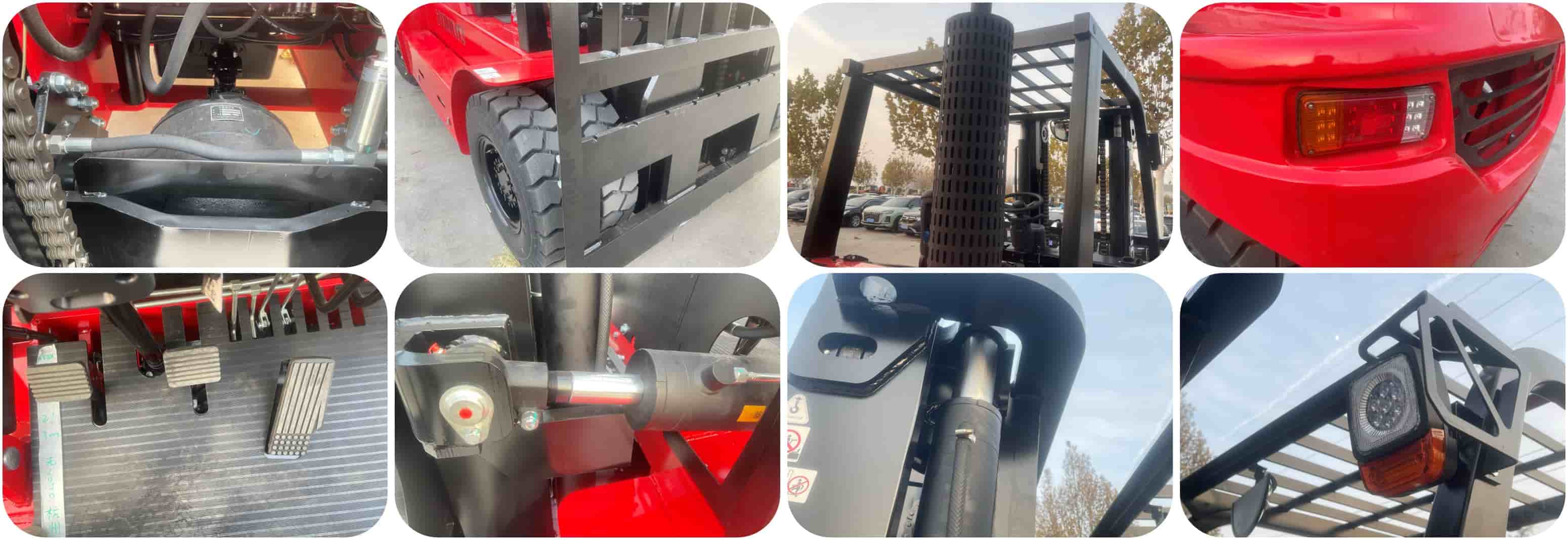

Cummins Engine Heavy Duty Forklift

10 Ton Diesel Powered Heavy Forklift

1) Strong lifting capacity: Specifically designed for carrying heavy goods, it has a maximum lifting weight of up to 12 tons and a maximum lifting height of up to 8 meters, which can meet the lifting and stacking requirements of large goods in different scenarios.

2) Powerful driving force: Equipped with a high-power diesel engine, it can provide a strong torque output, easily handling the loading, unloading, handling, and stacking operations of heavy objects.

3) High operational efficiency: Adopting an advanced hydraulic system, the lifting speed and lowering speed can be flexibly adjusted, enabling the completion of goods lifting and lowering operations in a short time and improving work efficiency.

4) Adaptability to complex working conditions: The tires usually use solid tires or pneumatic tires, which have good wear resistance and puncture resistance. In addition, its chassis is relatively high, with good passability, and it can operate on some uneven or sloped sites.

5) Good operation stability: The body structure is solid, made of high-strength steel, with good rigidity and stability. It is equipped with an advanced balance system and stability device to ensure that the forklift remains balanced when handling heavy objects.

6) High safety level: Equipped with multi-disc brakes and an Anti-lock Braking System (ABS), it has reliable braking performance and can brake quickly in case of an emergency, ensuring operational safety.

7) Good durability: The diesel engine has mature technology, a simple structure, relatively convenient maintenance, and high reliability and durability.


FAQ

1) What is terms of payment?

T/T, 30% deposit, 70% balance paid before shipment.

2) What is the inspection method?

Product photos, packaging, videos, and any other inspection methods required by customers.

3) How is the product packaged?

Naked, packaging film, wooden box, iron frame, and other required packaging methods.

4) How long is the warranty period?

18 months. Spare parts are provided free of charge during the warranty period.

Operation Video


Technical Parameter

Model   FD80 FD100 FD120
Power Type   Diesel Diesel Diesel
Operation Type   Seated Seated Seated
Rated Capacity kg 8000 10000 12000
Load Center  mm 600 600 600
Lifting Height mm 3000 3000 3000
Free Lift Height mm 200 200 200
Size Of Fork LxWxT mm 1220x150x70 1220x180x75 1520x180x100
Tire Type   Pneumatic Pneumatic Pneumatic
Size Of Tire Front   8.25-20-14PR 9.00-20-14PR 9.00-20-14PR
Rear   8.25-15-14PR 9.00-20-14PR 9.00-20-14PR
Mast Tilt Front/Rear ° 6/12 6/12 6/12
Overal Length (Without Fork) mm 3830 4340 4540
Overal Width mm 2000 2200 2200
Mast Closed Height mm 2560 2850 2850
Mast Extended Height mm 4490 4325 4325
Overhead Guard Height mm 2510 2560 2560
Turning Radius mm 3700 4100 4300
Front/Rear Overhang mm 650/740 740/800 740/800
Minimum Right Angle Channel Width mm 3450 3750 4010
Wheelbase mm 2500 2800 3000
Wheel Distance Front mm 1470 1600 1600
Rear mm 1710 1725 1725
Min.Ground Clearance mm 250 250 250
Speed Travel Load Km/h 25 25 23
Without load Km/h 30 30 28
Lift  Load mm/s 440 350 350
Without load mm/s 480 390 390
Fall Load mm/s 400 370 370
Without load mm/s 360 350 350
Max.traction KN 70 70 70
Max.gradeability Load/Without Load % 20/25 20/25 20/25
Weight kg 9900 12900 14000
Battery Voltage/Capacity V/AH 24/100 24/100 24/100
Engine Model   YuchaiYCA05115-T480 YuchaiYCA05115-T480 YuchaiYCA05115-T480
Rated Power/Speed kW/rpm 85/2200 85/2200 85/2200
Max.torque/Speed N.m/rp 500/1400-1600 500/1400-1600 500/1400-1600
Number Of Cylinders   4 4 4
Displacement   4.837 4.837 4.837
