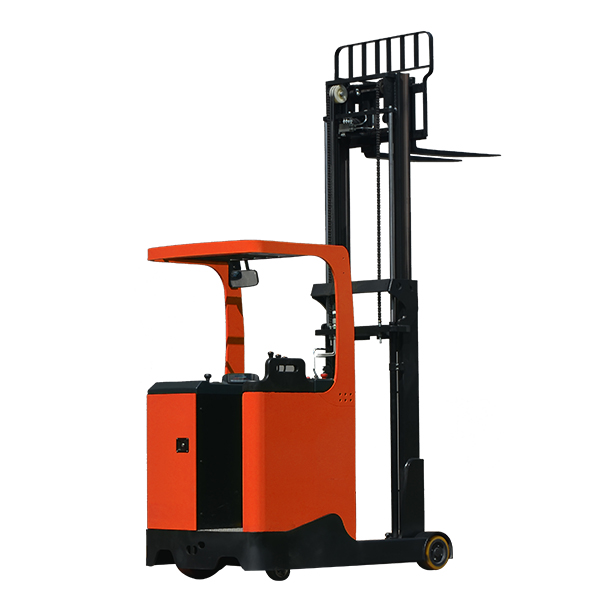

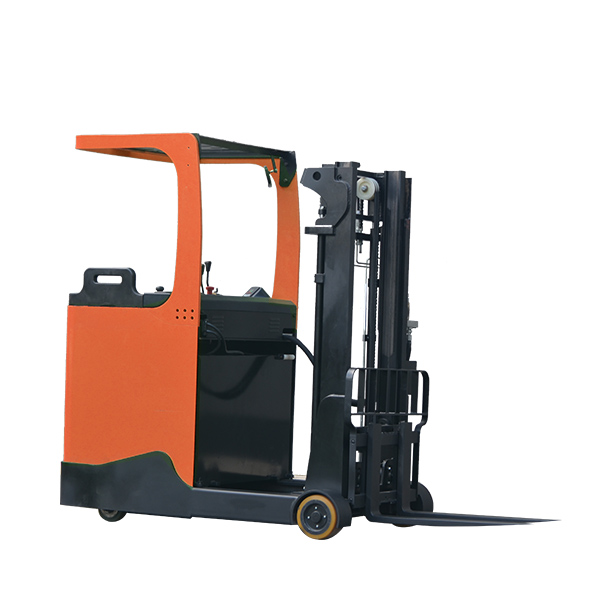

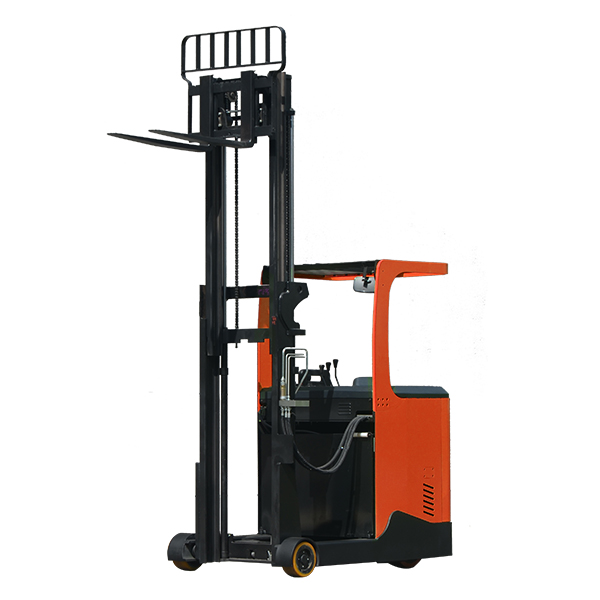

Side Standing Electric Reach Truck is mainly positioned for efficient and flexible loading, unloading, stacking and short-distance transportation operations of unitized pallet goods in indoor warehousing environments. The maximum lifting height can reach up to 12 meters, and capacity can reach up to 3 ton, which can meet the stacking requirements of goods at different shelf heights.
Model No :
ERL15/20/25/30Load Capacity :
1500-3000kgLift Height :
3000-12000mmDrive Type :
ACBattery :
Lead-acid/LithiumMOQ :
1Lead Time :
20-25 Days1.5-3.0 Ton Standing On Electric Reach Truck
Side Standing Reach Stacker Truck is suitable for places where material handling needs to be carried out in narrow aisles and limited spaces. While ensuring operational flexibility, it can achieve a relatively high stacking height for goods, and it is one of the indispensable equipment in modern warehousing logistics. Lithium Battery Powered Reach Truck has the characteristics of good stability, flexibility, environmental protection and energy conservation, excellent visibility, and simple operation. Electric Warehouse Reach Truck Forklift is widely used in various types of warehouses, such as e-commerce warehouses, logistics warehouses, manufacturing warehouses, etc., for the handling and stacking operations of goods in the links of warehousing, storage, and ex-warehousing. At the same time, in the production workshops of industries such as light industry, tobacco, textiles, and food, it can be used for the handling of raw materials, the transfer of semi-finished products, and the warehousing of finished products. High Level Reach Lift Truck can be equipped with special attachments, such as side shifters, rotating forks, clamp attachments, etc. For special working environments with flammable and explosive gases or dust, the vehicle can be designed and modified for explosion protection. In addition, some auxiliary devices can be added according to customer requirements, such as shelf height detection devices, cargo weighing systems, etc.

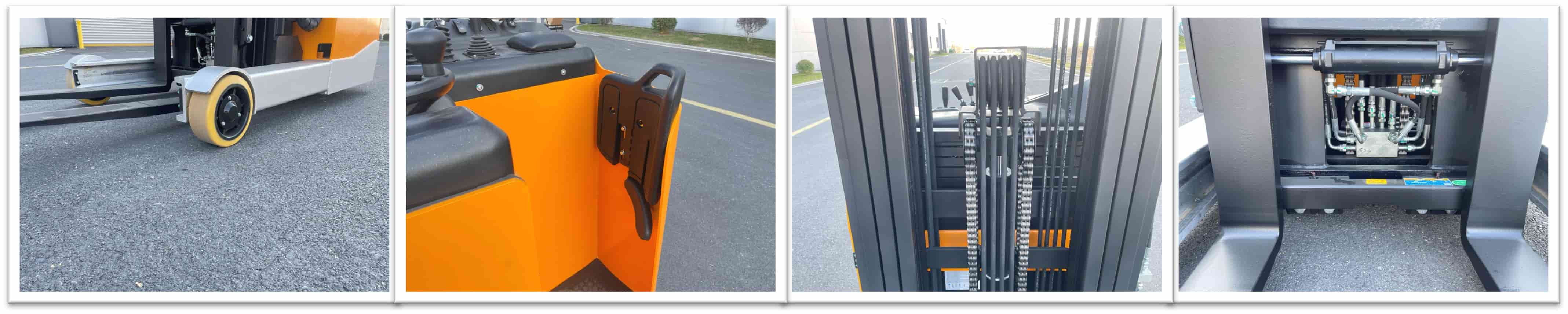

Details & Advantages
1) Excellent Visibility: The side-standing design provides drivers with a wide field of vision, enabling them to clearly observe the loading and unloading of goods, the stacking situation, and the surrounding environment. This facilitates precise operation, reduces the risk of goods damage and accidents, and improves work efficiency and safety.
2) Environmental Protection and Energy Conservation: It adopts an electric drive system, which is pollution-free and produces low noise during operation. It meets environmental protection requirements and is suitable for indoor warehousing environments with high environmental requirements. Moreover, it can also reduce operating costs.
3) Good Stability: It usually adopts a four-wheel support structure. In some models, the rear wheels are equipped with a steering drive wheel and an auxiliary wheel, which are connected through a suspension mechanism. Additionally, the gantry can move forward and retract along the inner track of the outriggers, keeping the center of gravity of the goods within the front and rear outriggers of the vehicle. This ensures excellent stability under load and guarantees safe operation under different working conditions.

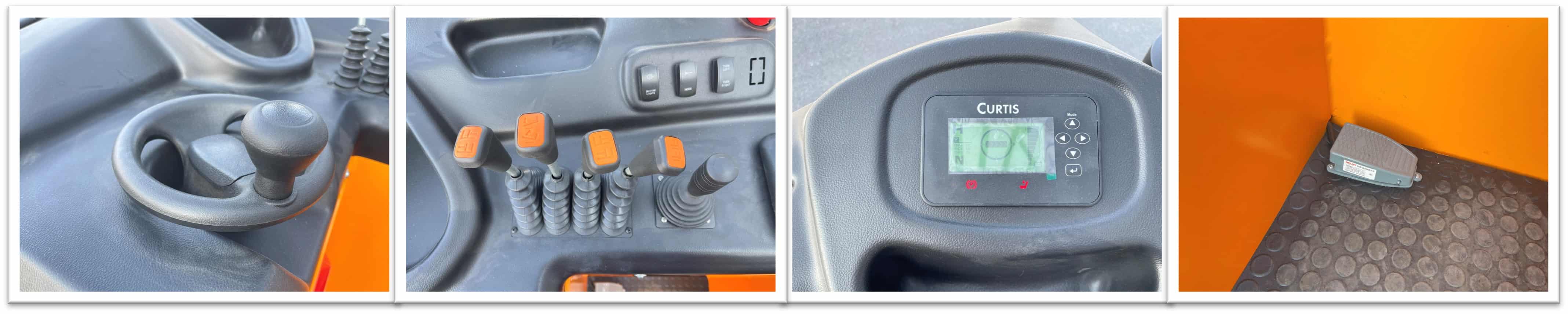

4) Simple Operation: It is equipped with an advanced electronic control system, and the operation handle conforms to ergonomics. Drivers can easily control the vehicle's functions such as driving, steering, lifting, and lowering, reducing the difficulty of operation and labor intensity, and improving work efficiency.
5) Strong Lifting Capacity: It has a relatively high lifting height, generally reaching several meters, and the maximum lifting height of some models can reach up to 12 meters. This can meet the stacking requirements of goods at different shelf heights, allowing for the storage of multiple layers of goods in a limited space and improving the utilization rate of warehousing space.
6) Diverse Configurations: According to different goods handling requirements, special attachments such as side shifters, rotating forks, and clamp attachments can be custom-installed. In addition, auxiliary devices such as shelf height detection devices, cargo weighing systems, and automatic guidance systems can be added to enhance the versatility and intelligent level of the forklift, meeting diverse operational needs.
FAQ
1) What is terms of payment?
T/T, 30% deposit, 70% balance paid before shipment.
2) What is the inspection method?
Product photos, packaging, videos, and any other inspection methods required by customers.
3) How is the product packaged?
Naked, packaging film, wooden box, iron frame, and other required packaging methods.
4) How long is the warranty period?
18 months. Spare parts are provided free of charge during the warranty period.
Operation Video
Technical Parameter
Model | ERL15 | ERL20 | ERL25 | ERL30 | |||
Power Type | Electric | Electric | Electric | Electric | |||
Operation Type | Stand-on | Stand-on | Stand-on | Stand-on | |||
Rated Capacity | kg | 1500 | 2000 | 2500 | 3000 | ||
Load Center | mm | 500 | 500 | 500 | 500 | ||
Front Overhang | mm | 145 | 145 | 160 | 160 | ||
Wheelbase | mm | 1400 | 1585 | 1695 | 1770 | ||
Wieght | kg | 2200 | 2350 | 3200 | 3850 | ||
Size Of Fork | LxWxT | mm | 1070x100x35 | 1070x100x35 | 1070x125x45 | 1070x125x45 | |
Fork Outter Width | mm | 210-705 | 210-705 | 245-705 | 245-820 | ||
Tire Type | PU | PU | PU | PU | |||
Size Of Tire | Driving Tire | mm | φ230x75 | φ230x75 | φ382x142 | φ382x142 | |
Bearing Tire | mm | φ254x74 | φ254x74 | φ267x114 | φ280x135 | ||
Balance Tire | mm | φ150x50 | φ150x50 | φ180x76 | φ180x76 | ||
Tire Distance | Bearing Tire | mm | 978 | 978 | 1155 | 1330 | |
Overal Length | mm | 2272 | 2272 | 2550 | 2640 | ||
Overal Width | mm | 1098 | 1098 | 1270 | 1460 | ||
Guard Height | mm | 2310 | 2310 | 2260 | 2260 | ||
Lifting Height | mm | 3000 | 3000 | 3000 | 3000 | ||
Free Lifting Height | mm | 135 | 135 | 135 | 135 | ||
Mast Tilt | ° | 3/5 | 3/5 | 3/5 | 3/5 | ||
Reach Distance | mm | 500 | 600 | 565 | 610 | ||
Mast Closed Height | mm | 2120 | 2120 | 2360 | 2280 | ||
Mast Extended Height | mm | 3985 | 3985 | 4025 | 3950 | ||
Turning Radius | mm | 1600 | 1780 | 1995 | 2200 | ||
Aisle Width:1000x1200 Across Fork | mm | 2770 | 2880 | 3040 | 3220 | ||
Aisle Width:800x1200 Across Fork | mm | 2840 | 2950 | 3150 | 3350 | ||
Min.Ground Clearance | mm | 80 | 80 | 80 | 80 | ||
Speed | Travel | Load | Km/h | 4 | 4 | 9 | 9 |
Without load | Km/h | 5 | 5 | 10 | 10 | ||
Lift | Load | mm/s | 110 | 110 | 230 | 230 | |
Without load | mm/s | 135 | 135 | 300 | 300 | ||
Fall | Load | mm/s | 130 | 130 | 400 | 400 | |
Without load | mm/s | 85 | 85 | 330 | 330 | ||
Max.gradeability | Load/Without Load | % | 4/8 | 4/8 | 10/10 | 8/8 | |
Service Brake | Electromagnetic | Electromagnetic | Electromagnetic | Electromagnetic | |||
Motor | Drive Motor, 60 Minute Rating | kw | 2.5 | 2.5 | 6.5 | 8 | |
Lift Motor, Rating At S315% | kw | 3 | 3 | 8.6 | 12 | ||
Battery Type | Lead-acid | Lead-acid | Lead-acid | Lead-acid | |||
Battery Capacity | v/ah | 24/280 | 24/280 | 48/400 | 48/400 | ||
Drive Control Type | AC | AC | AC | AC | |||
Steering Type | Electric(EPS) | Electric(EPS) | Electric(EPS) | Electric(EPS) |
