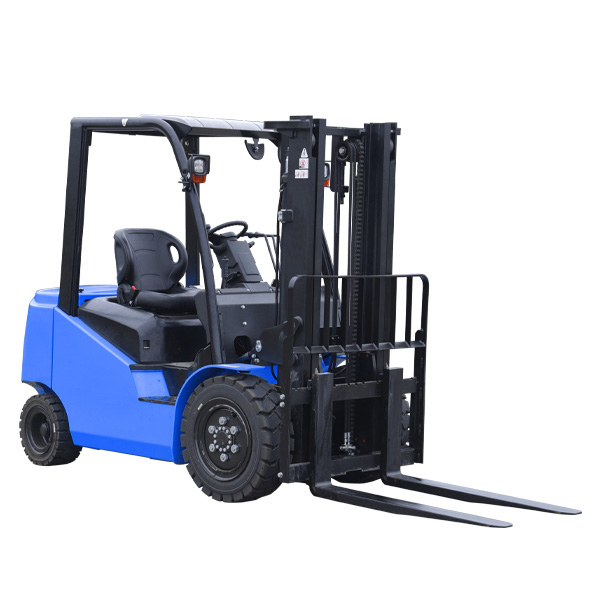

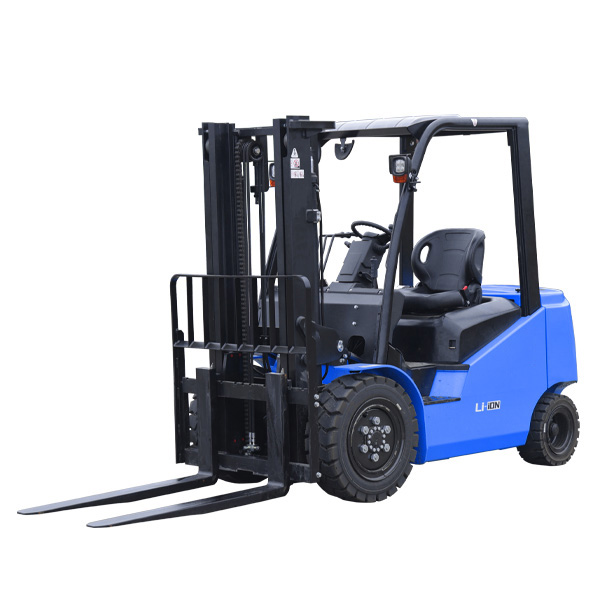

2.0-4.0 Ton High Voltage Electric Forklift FEP Series

High-Voltage Lithium Power Counterbalance Forklift, Which uses a high-voltage lithium battery as the power source, and has the advantages of strong power, long endurance, safety and reliability. It is applied in the paper products industry, renewable energy field, supermarket logistics, wharves, airports, etc. OEM & ODM customized services can be provided to meet the needs of various scenarios.

  • Model No :

    FEP20/25/30/35/40
  • Load Capacity :

    2000-4000kg
  • Lift Height :

    2000-8000mm
  • Drive Type :

    AC
  • Battery :

    Lithium
  • Optional :

    Customized Attachments
  • MOQ :

    1
  • Lead Time :

    15-20 Days

2.0-4.0 Ton High Voltage Electric Forklift Truck
High Performance Electric Counterbalance Forklift, as a high-performance version of the traditional electric forklift, has batteries with characteristics such as high energy density, superior fast charging performance, long service life, recyclability, and high safety (with Battery Management System - BMS). Hight Voltage Electric Powered Forklift has multiple safety protection functions, including overcharge protection, over-discharge protection, overheating protection, and short-circuit protection. In terms of structural design, Li-ion Electric High Voltage Forklift is usually made of high-strength steel. frame structure is carefully designed, and it has the advantages of excellent anti-corrosion performance. According to the specific work requirements of customers, the battery capacity, lifting height, body color, and logo of Lithium Electric Forklift Truck can be modified. A variety of attachments can be provided, such as fork attachments (side shift, distance adjustment, rotation, telescopic), clamping attachments (carton clamp, barrel clamp, log clamp), and pallet handling attachments (single-layer, double-layer). Due to its excellent performance and special structural design, it is widely used in various industrial fields.

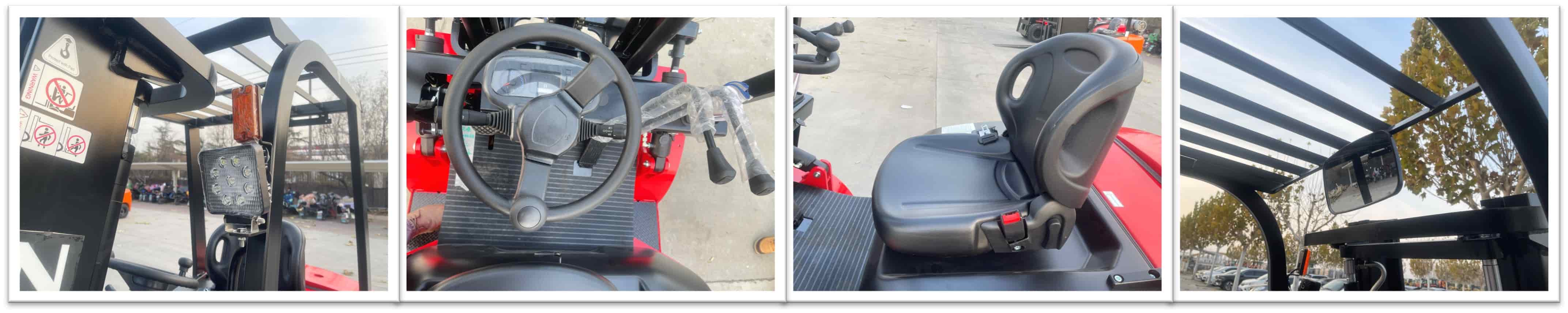

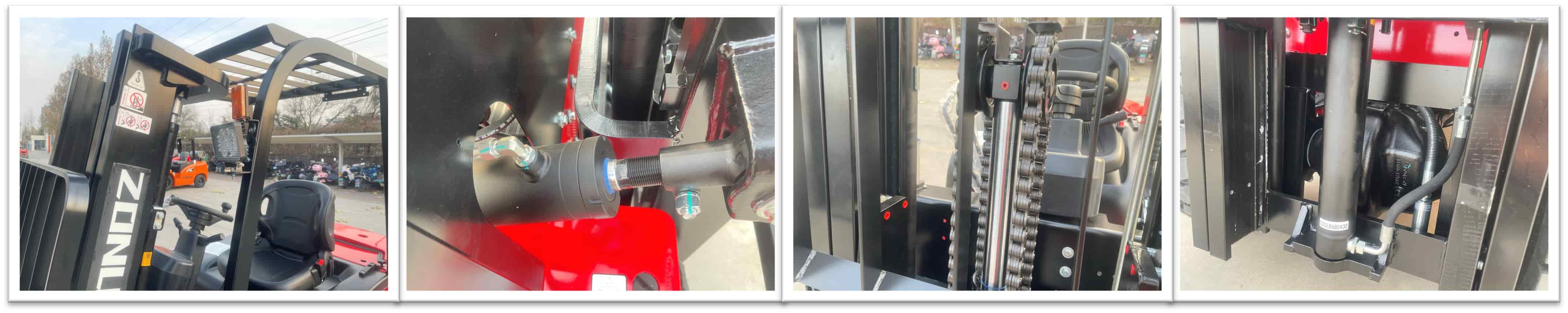

Details & Advantages

Electric High Voltage Forklift Truck

4 Wheel Electric Lithium Forklift

1) Power System Design: High-voltage lithium batteries are used as the power source, which can store more electrical energy within a relatively small volume and weight. Meanwhile, the high-voltage system can reduce the current and minimize the line losses. In combination with the advanced Battery Management System (BMS), it can accurately monitor the battery status and achieve multiple protections for the battery, such as overcharge protection, over-discharge protection, overheating protection, and short-circuit protection.

2) Frame Structure Design: It is manufactured with high-strength steel. Through optimized structural design, it has high strength and rigidity, enabling it to withstand various stresses and impact forces during the forklift's operation. This improves the stability of the forklift during driving, steering, and loading and unloading of goods, and reduces the risk of tipping over.

3) Mast and Fork Design: High-strength materials are adopted, endowing it with good rigidity and stability. At the same time, the design of the mast takes into account the optimization of the field of vision, improving the accuracy and safety of operation. The design of the forks also places more emphasis on versatility and flexibility.

4) Electrical System Design: It is equipped with an advanced electrical control system. By adopting digital control technology, it can precisely control the forklift's driving speed, steering angle, fork lifting and lowering, and other operations to achieve accurate operation. In addition, the design of the electrical system fully considers electromagnetic compatibility, reducing interference with surrounding electronic devices and enhancing the forklift's adaptability to various working environments.

5) Ergonomic Design: It focuses on the comfort and convenience of operators. The driving seat usually has good comfort and adjustability. The design of the operating handles and pedals conforms to the principles of ergonomics, with reasonable positions and moderate operating forces, making it convenient for operators to perform various operations. Moreover, the forklift is also equipped with good sound insulation and noise reduction devices.

6) Appearance and Anti-corrosion Design: It has a simple and beautiful appearance design. The body surface of the forklift is treated with anti-corrosion measures, such as spraying high-quality anti-rust paint or adopting galvanizing processes, effectively preventing the frame and body components from rusting and corroding. This improves the durability and reliability of the forklift, especially making it suitable for harsh working environments such as those with humidity, dust, acids, and alkalis.


FAQ

1) What is terms of payment?

T/T, 30% deposit, 70% balance paid before shipment.

2) What is the inspection method?

Product photos, packaging, videos, and any other inspection methods required by customers.

3) How is the product packaged?

Naked, packaging film, wooden box, iron frame, and other required packaging methods.

4) How long is the warranty period?

18 months. Spare parts are provided free of charge during the warranty period.

Operation Video


Technical Parameter

Model   FEP20 FEP25 FEP30 FEP35 FEP40
Power Type   Electric Electric Electric Electric Electric
Operation Type   Seated Seated Seated Seated Seated
Rated Capacity kg 2000 2500 3000 3500 4000
Load Center  mm 500 500 500 500 500
Lifting Height mm 3000 3000 3000 3000 3000
Free Lift Height mm 145 145 145 145 145
Size Of Fork LxWxT mm 1070x122x40 1070x122x40 1070x122x45 1070x122x45 1070x122x50
Fork Carriage Width mm 1040 1040 1085 1085 1085
Tire Type   Pneumatic Pneumatic Pneumatic Pneumatic Pneumatic
Size Of Tire Front 2(x=driven) 7.00-12-12PR 7.00-12-12PR 28x9-15-14PR 28x9-15-14PR 28x9-15-14PR
Rear 2 6.00-9-10PR 6.00-9-10PR 6.50-10-10PR 6.50-10-10PR 6.50-10-10PR
Mast Tilt Front/Rear ° 6/12 6/12 6/12 6/12 6/12
Overal Length (Without Fork) mm 2535 2535 2695 2700 2700
Overal Width mm 1170 1170 1230 1230 1230
Mast Closed Height mm 2005 2005 2070 2125 2125
Mast Extended Height mm 4035 4035 4230 4230 4230
Overhead Guard Height mm 2125 2125 2145 2145 2145
Turning Radius mm 2335 2335 2500 2500 2500
Front/Rear Overhang mm 460/415 460/415 475/470 480/470 490/470
Wheelbase mm 1650 1650 1750 1750 1750
Wheel Distance Front mm 970 970 1000 1000 1000
Rear mm 960 960 970 970 970
Min.Ground Clearance mm 110 110 115 115 115
Speed Travel Load Km/h 14 14 15 15 15
Without load Km/h 15 15 16 16 16
Lift  Load mm/s 330 330 350 350 350
Without load mm/s 400 400 400 400 400
Fall Load mm/s 470 470 450 450 450
Without load mm/s 450 450 120 120 120
Max.traction KN 15 15 16.5 16.5 23
Max.gradeability Load/Without Load % 18/20 15/20 20/20 15/20 18/25
Weight kg 3200 3500 4250 4550 4850
Service Brake   Hydraulic Hydraulic Hydraulic Hydraulic Hydraulic
Parking Brake   Mechanical Mechanical Mechanical Mechanical Mechanical
Motor Drive Motor,S2 60 Minutes kw 8AC 8AC 10AC 10AC 12AC
Lift Motor,S3 15% kw 10AC 10AC 16AC 16AC 21AC
Battery Type   Li-ion Li-ion Li-ion Li-ion Li-ion
Battery Capacity v/ah 80/150 80/150 80/202 80/202 80/280
Drive Control Type   AC AC AC AC AC
Steering Type   Hydraulic+Mechanical Hydraulic+Mechanical Hydraulic+Mechanical Hydraulic+Mechanical Hydraulic+Mechanical
