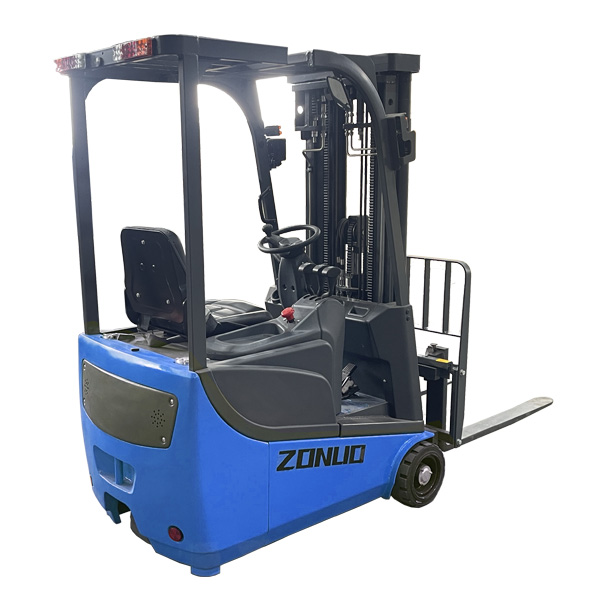

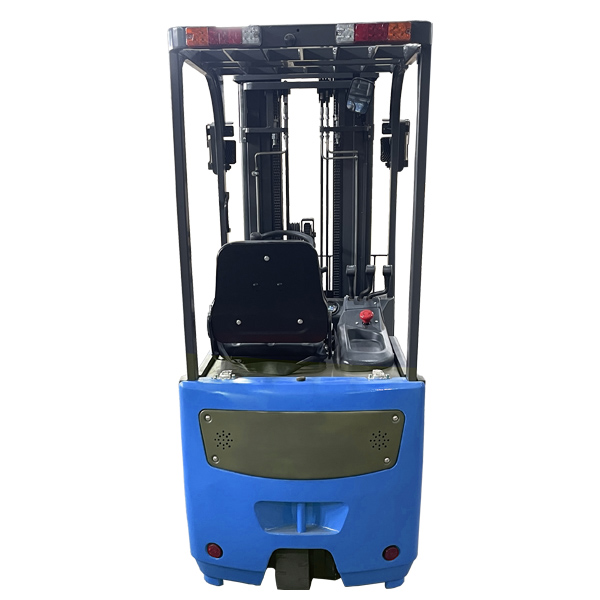

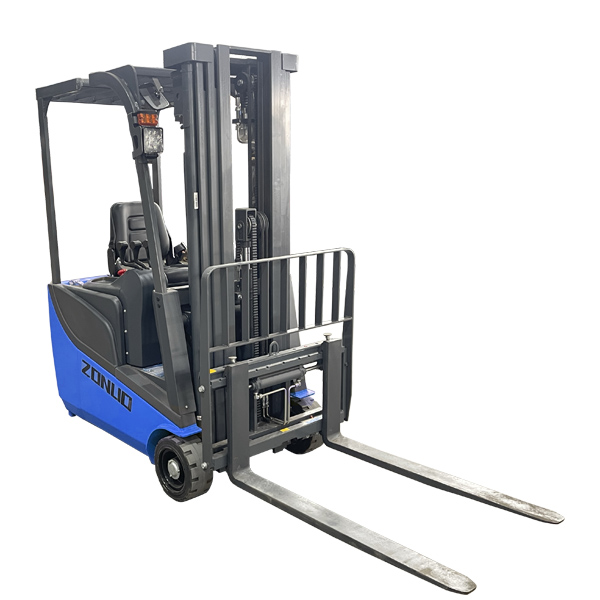

1.0-1.5 Ton Mini 3 Wheel Electric Forklift FEM Series

Mini 3 Wheel Electric Forklift Truck, Whcih are widely used in narrow warehouse aisles, small workshops. And indoor environments with high noise and pollution limits such as supermarkets, distribution centers, and light industrial plants. OEM & ODM customized services can be provided, such as cold storage and explosion-proof models, side shifters, clamps and other attachments.

  • Model No :

    FEM10/12/15/16
  • Load Capacity :

    1000-1600kg
  • Lift Height :

    2000-8000mm
  • Drive Type :

    AC
  • Battery :

    Lead-acid/Lithium
  • Optional :

    Customized Attachments
  • MOQ :

    1
  • Lead Time :

    7-15 Days

1.0-1.5 Ton Mini 3 Wheel Electric Forklift Truck
Three Wheel Electric Forklift is a small-sized forklift that uses lead-acid batteries or lithium batteries as the power source and adopts a three-point support structure design. Operation of the vehicle are achieved through the AC electric drive system and lifting system. Due to its special structural design, 3-Wheel Electric Counterbalance Forklift has the characteristics of flexibility and mobility, energy conservation and environmental protection, simple operation, wide field of vision, and convenient maintenance. Mini Electric 3 Wheel Forklift can be specially modified for cold storage environments with cold-resistant hydraulic fluids, electrical components and seals, as well as heating batteries and non-slip tires. For chemical warehouses, oil depots and other places with flammable and explosive gas or dust, explosion-proof motors, electrical components and special protective enclosures can be used. Warehouse Three Wheel Electric Forklift can be customized with special attachments, such as paper roll clamps, rotary clamps, side shifters, fork positioners and other special attachments, so as to improve the handling efficiency and adaptability of the forklift to specific goods.

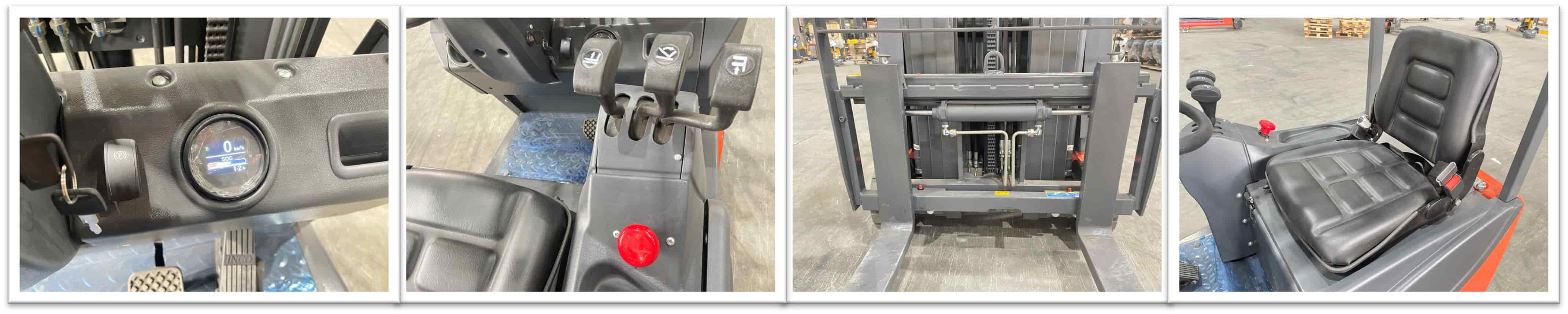

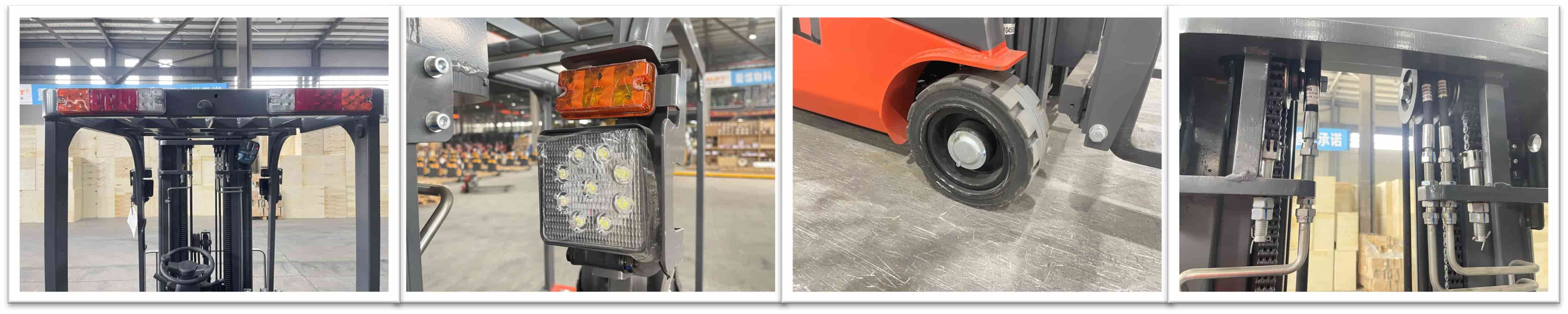

Details & Advantages

1.6 Ton Electric Three Wheel Forklift

Lithium Battery Electric Counterbalance Forklift

1) Compact and flexible: Adopting a three-point support structure, the vehicle body is compact, and the turning radius is small, usually only about 1.5 to 2 meters. It can flexibly turn and operate in narrow passages and limited spaces. It can even move freely in a small warehouse with a passage width of only 3 to 4 meters, which greatly improves the space utilization rate and operation efficiency.

2) Good stability: The three-point support structure forms a stable triangular support. While ensuring the flexibility of the forklift, it also ensures good stability during operation and when lifting goods. Even when the full-load lifting height reaches 3 to 5 meters, it can still maintain balance, effectively preventing rollover accidents.

3) Wide field of vision: The gantry is designed to be relatively compact and is positioned relatively forward, so the driver's field of vision is not overly blocked. The driver can clearly observe the forks, goods, and the surrounding environment of the operation area. During stacking operations, the driver can accurately place the goods in the designated position, reducing the risk of goods damage and misoperation.

4) Efficient drive system: It adopts an AC electric drive system, with a reasonable layout of the motor and high power transmission efficiency. This system can provide strong power output to meet the forklift's operation requirements under different working conditions. For example, the speed can reach 10 to 12 kilometers per hour when driving under full load, and it also has good acceleration and deceleration performance with a rapid response.

5) Convenient maintenance: With a modular structure design, each component is relatively independent, making it easy to disassemble and replace. During daily maintenance, technicians can quickly access each key component for inspection, repair, and maintenance, reducing maintenance costs and downtime.


FAQ

1) What is terms of payment?

T/T, 30% deposit, 70% balance paid before shipment.

2) What is the inspection method?

Product photos, packaging, videos, and any other inspection methods required by customers.

3) How is the product packaged?

Naked, packaging film, wooden box, iron frame, and other required packaging methods.

4) How long is the warranty period?

18 months. Spare parts are provided free of charge during the warranty period.

Operation Video


Technical Parameter

Model   FEM10 FEM15
Power Type   Electric Electric
Operation Type   Seated Seated
Rated Capacity kg 1000 1500
Load Center  mm 500 500
Lifting Height mm 3000 3000
Free Lift Height mm 135 135
Size Of Fork LxWxT mm 950x100x35 950x100x35
Fork Carriage Width mm 220-750 220-600
Tire Type   PU PU
Size Of Tire Front 2 φ250×127 φ250×127
Rear 1(x=driven) φ305×127 φ305×127
Mast Tilt Front/Rear ° 2/5 2/5
Overal Length (Without Fork) mm 1580 1520
Overal Width mm 920 920
Mast Closed Height mm 1995 1995
Mast Extended Height mm 3950 3950
Overhead Guard Height mm 1980 1980
Turning Radius mm 1348 1348
Front Overhang mm 235 170
Aisle Width:1000x1200 Across Fork mm 2930 2865
Aisle Width:800x1200 Across Fork mm 3030 2975
Wheelbase mm 1090 1090
Wheel Distance Front mm 785 785
Rear mm 0 0
Min.Ground Clearance mm 90 90
Speed Travel Load Km/h 6.0 6.0
Without load Km/h 7.0 7.0
Lift  Load mm/s 135 135
Without load mm/s 215 215
Fall Load mm/s 240 240
Without load mm/s 220 220
Max.gradeability Load/Without Load % 6/10 4/10
Weight kg 1920 2220
Service Brake   Electromagnetic Electromagnetic
Motor Drive Motor, 60 Minute Rating kw 2.5 3.0
Lift Motor, Rating At S315% kw 4.5 4.5
Battery Type   Lead-acid Lead-acid
Battery Capacity v/ah 24/300 24/400
Drive Control Type   AC AC
Noise Level At Operator's Ear dB(A) <=80 <=80
Steering Type   Electric(EPS) Electric(EPS)
