Walk-Behind Electric Pallet Truck, with its characteristics of high efficiency, environmental friendliness and flexibility, has become a standard tool in scenarios such as warehousing, manufacturing, supermarkets and stores. The whole vehicle is stable, easy to operate, has a compact structure, a small turning radius, produces low noise and features high performance. It is used for the short-distance transportation and sorting of goods.
Model No :
ETL20Load Capacity :
2000kgLift Height :
220mmDrive Type :
DC/ACBattery :
Lead-acid/LithiumMOQ :
1Lead Time :

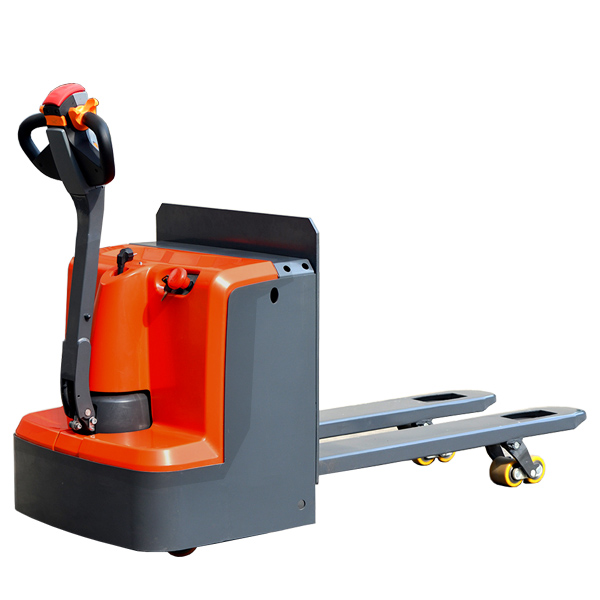

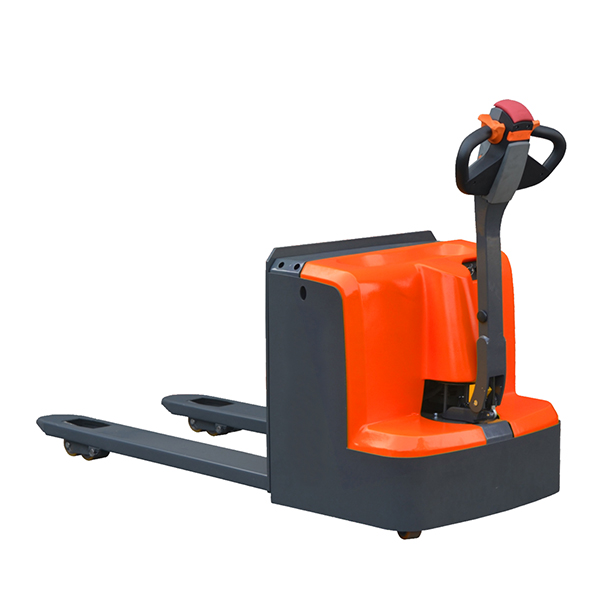

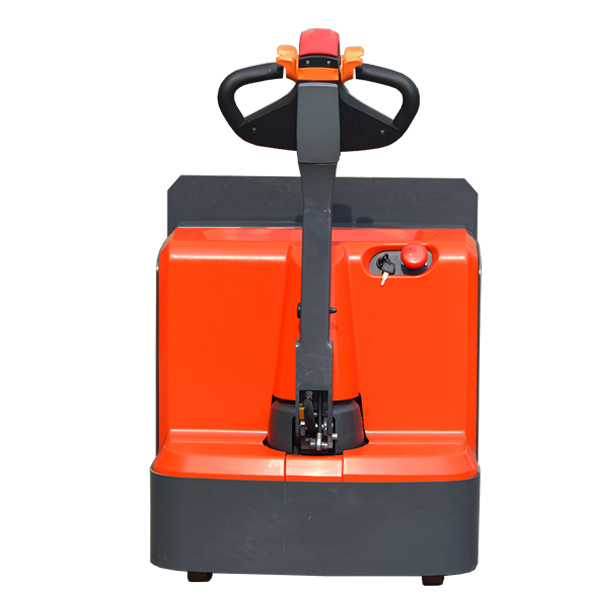

15-20 Days2.0 Ton Walkie Electric Pallet Truck ETL Series
Warehouse Electric Pallet Truck Jack takes the storage battery as the energy source, and converts electrical energy into mechanical energy through the electric motor to drive the vehicle. The operator holds the control handle and controls the operation status of the vehicle through the buttons or joysticks on the control handle. Narrow Aisle Battery Operated Pallet Truck is usually applied to internal warehouse handling, sorting in logistics distribution centers, material distribution on production lines, transfer of finished products in workshops, restocking in supermarkets and shopping malls, goods handling in convenience stores, and transportation of supplies in hospitals, etc. Walkie Electric Lithium Pallet Jack has a variety of configurations available for selection, such as upgrading from DC drive to AC drive, upgrading from mechanical steering to electronic steering, and replacing lead-acid batteries with lithium batteries. According to the special work requirements of customers, MHE Electric Pedestrian Pallet Truck can be modified and customized, such as customization of load-bearing capacity, customization of size specifications (body length and width, fork length and width), and customization of functional configurations (special attachments, intelligent control systems, safety protection devices). Due to its excellent design and simple operation, it plays an indispensable role in the material handling scenarios.

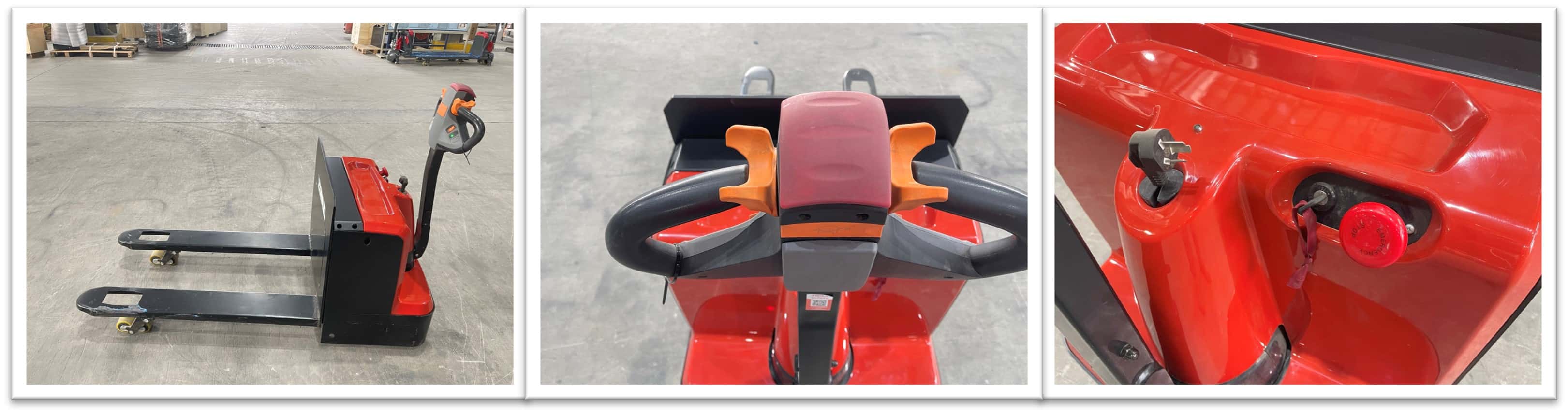

Details & Advantages
▶ Compact and Flexible Body Design
1) Small and Lightweight: The body is relatively small, with a compact overall size and a relatively light weight.
2) Small Turning Radius: Its design emphasizes turning flexibility and has a small turning radius.
▶ Humanized Operation Design
3) Easy-to-Use Control Handle: Equipped with a control handle that conforms to ergonomics, the operation is simple and intuitive. The buttons and joysticks on the handle are reasonably arranged, making it convenient for operators to operate with one hand or both hands.
4) Good Vision Design: The driving position and body structure design of the vehicle fully consider the operator's vision requirements. When the operator follows the vehicle on foot, they can clearly see the loading and unloading positions of the goods as well as the environment in front of and around the vehicle.
▶ Efficient Power and Transmission Design
5) Powerful Electric Drive System: Using a high-performance electric motor as the power source, it has good power output characteristics. The electric motor can provide a stable torque, enabling the vehicle to have sufficient traction force when handling goods. Whether it is unloaded or fully loaded, it can maintain a relatively stable driving speed to meet the handling needs under different working conditions.
6) Efficient Transmission Device: Equipped with an efficient transmission system, such as chain drive or gear drive, etc., it can effectively transmit the power of the electric motor to the drive wheels, reducing energy loss and improving transmission efficiency.
7) Multiple Braking Protections: A complete braking system is designed, usually including multiple braking methods such as electromagnetic braking and mechanical braking.
8) Safety Warning Devices: Equipped with a variety of safety warning devices. When the vehicle approaches an obstacle or is in a dangerous state, it will emit a sound alarm to promptly warn the operator and people around to avoid collision accidents.
FAQ
1) What is terms of payment?
T/T, 30% deposit, 70% balance paid before shipment.
2) What is the inspection method?
Product photos, packaging, videos, and any other inspection methods required by customers.
3) How is the product packaged?
Naked, packaging film, wooden box, iron frame, and other required packaging methods.
4) How long is the warranty period?
18 months. Spare parts are provided free of charge during the warranty period.
Operation Video
Technical Parameter
Model | ETL20 | |||
Power Type | Electric | |||
Operation Type | Walkie | |||
Rated Capacity | kg | 2000 | ||
Load Center | mm | 600 | ||
Front Overhang | mm | 931 | ||
Wheelbase | mm | 1325 | ||
Wieght | kg | 335 | ||
Size Of Fork | LxWxT | mm | 1150x160x50 | |
Fork Outter Width | mm | 540/685 | ||
Tire Type | PU | |||
Size Of Tire | Driving Tire | 1 | φ210x70 | |
Bearing Tire | 4 | φ80x60 | ||
Balance Tire | 2 | φ100x40 | ||
Tire Distance | Bearing Tire | mm | 380/525 | |
Overal Length | mm | 1708 | ||
Overal Width | mm | 700 | ||
Max./Min.Handle Height | mm | 730/1165 | ||
Lifting Height | mm | 200 | ||
Lowered Height | mm | 85 | ||
Turning Radius | mm | 1490 | ||
Aisle Width:1000x1200 Across Fork | mm | 1910 | ||
Aisle Width:800x1200 Across Fork | mm | 1960 | ||
Min.Ground Clearance | mm | 35 | ||
Speed | Travel | Load | Km/h | 4 |
Without load | Km/h | 4.5 | ||
Lift | Load | mm/s | 20 | |
Without load | mm/s | 25 | ||
Fall | Load | mm/s | 35 | |
Without load | mm/s | 20 | ||
Max.gradeability | Load/Without Load | % | 3/10 | |
Service Brake | Electromagnetic | |||
Motor | Drive Motor, 60 Minute Rating | kw | 0.75 | |
Lift Motor, Rating At S315% | kw | 0.8 | ||
Battery Type | Lead-acid | |||
Battery Capacity | v/ah | 24/100 | ||
Drive Control Type | DC | |||
Steering Type | Mechanical |
