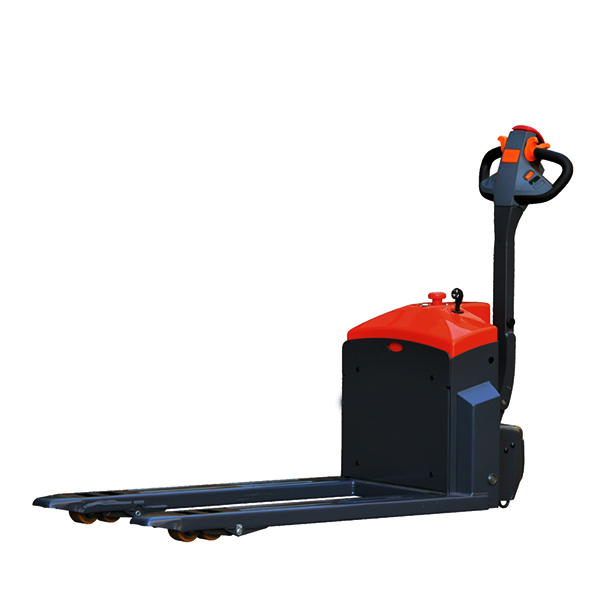

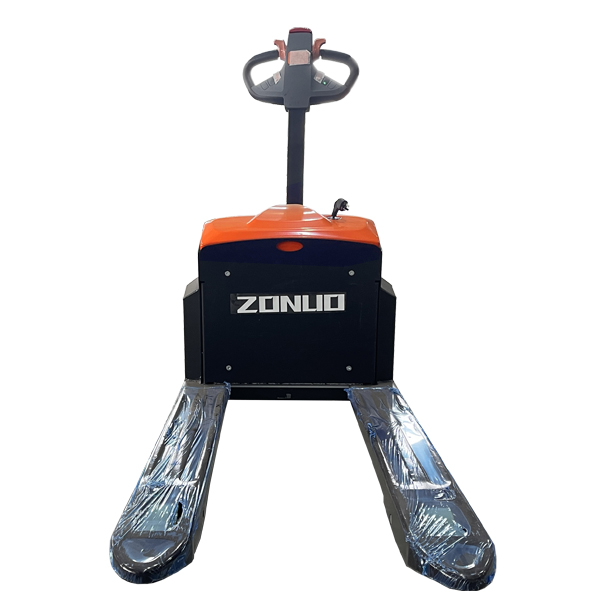

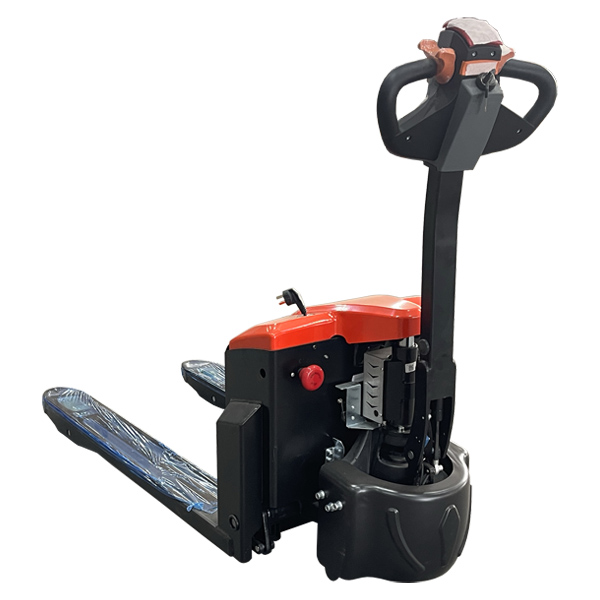

1.5-3.0 Ton Mini Lead-acid Battery Electric Pallet Truck ETB Series

Mini Electric Pallet Truck is a small-sized electric handling equipment powered by lead-acid batteries. It is equipped with a DC motor and features a small volume, high power, and high efficiency. It comes with an easy-to-understand operation handle, and basically all operation functions can be completed with one hand. It is widely used in small warehouses, supermarkets, shopping malls, factory workshops, and other places.

  • Model No :

    ETB15/20/30
  • Load Capacity :

    1500-3000kg
  • Lift Height :

    200mm
  • Drive Type :

    DC
  • Battery :

    Lead-acid
  • MOQ :

    6
  • Lead Time :

    7-15 Days

1.5-3.0 Ton Mini Lead-acid Battery Electric Pallet Truck
Electric Walkie Pallet Truck generally uses a 24V or 48V lead-acid battery pack, which has a relatively high capacity and a stable output voltage, and can provide continuous power support for the vehicle. The number of charge-discharge cycles of the lead-acid battery is generally in the hundreds. As the number of usage times increases, the battery capacity will gradually decrease, and the battery needs to be replaced regularly. Mini Battery Operated Pallet Truck is mainly composed of components such as a hydraulic pump, an oil cylinder, and oil pipes, which are used to control the lifting of the forks. The energy conversion efficiency of the electric drive system is relatively high, and it performs well in terms of energy conservation, which can reduce the usage cost. Electric Pedestrian Pallet Truck can be customized and upgraded. For example, pedals and armrests can be added, the brand of the controller can be upgraded, and the forks can be lengthened and thickened. It is truly an excellent assistant in the warehousing industry.

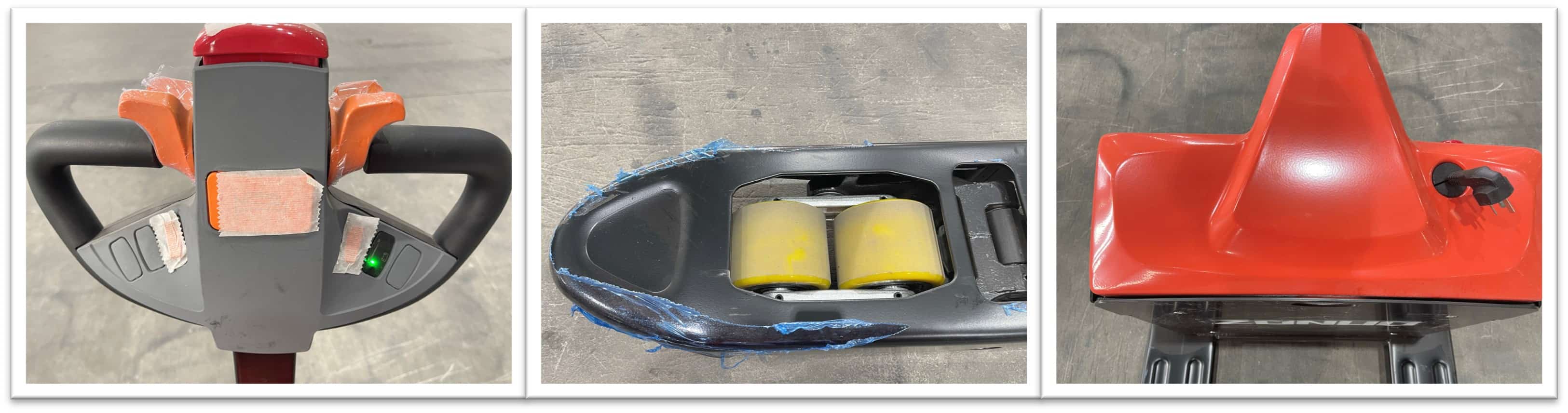

Details & Advantages

Warehouse Walkie Electric Pallet Truck

Battery Powered Terrain Pallet Truck Jack

Compact and Small Body Design

1) Strong Space Adaptability: The compact design results in an extremely small turning radius, enabling it to flexibly maneuver among narrow warehouse aisles, small workshops, and supermarket shelves.

2) Convenient for Storage and Transportation: Due to its small size, it can be easily stored in a corner or a dedicated equipment storage area when not in use, occupying very little space.

Ergonomic Operation Design

3) Simple Operation Handle: Equipped with an ergonomic operation handle, the design of the handle conforms to the natural shape of the human hand when gripping. The button layout is reasonable, and the operating force is moderate.

4) Reasonable Driving Position: The design fully takes into account the comfort and field of vision of the operator. The operator can clearly see the goods and the surrounding environment.

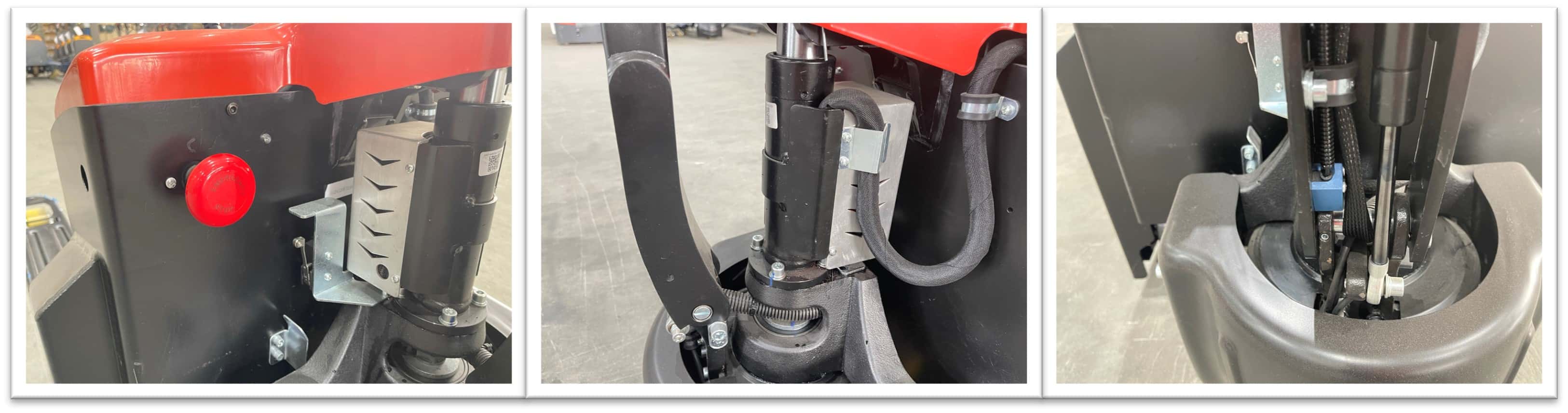

Efficient Power and Transmission Design

5) Lead-acid Battery Power System: It adopts a 24V or 48V lead-acid battery pack, which has a relatively high capacity and a stable output voltage, capable of providing continuous power support for the vehicle.

6) Optimized Transmission System: The electric drive system uses a high-efficiency DC motor and advanced transmission devices, with a relatively high energy conversion efficiency and excellent performance in energy conservation. The design of the transmission system is compact and reasonable, which can effectively transmit the power of the motor to the wheels and the hydraulic system.

Flexible Customization Design

7) Customized Auxiliary Components: It supports a variety of customization options. Pedals and armrests can be added according to actual operation needs.

8) Upgrading of Key Components: The brand of the controller can be upgraded, and the forks can be lengthened and thickened to enable it to carry larger-sized and heavier goods.


FAQ

1) What is terms of payment?

T/T, 30% deposit, 70% balance paid before shipment.

2) What is the inspection method?

Product photos, packaging, videos, and any other inspection methods required by customers.

3) How is the product packaged?

Naked, packaging film, wooden box, iron frame, and other required packaging methods.

4) How long is the warranty period?

18 months. Spare parts are provided free of charge during the warranty period.

Operation Video


Technical Parameter

Model   ETB15 ETB20 ETB30
Power Type   Electric Electric Electric
Operation Type   Walkie Walkie Walkie
Rated Capacity kg 1500 2000 3000
Load Center  mm 600 600 600
Front Overhang mm 944 944 969
Wheelbase mm 1262 1262 1305
Wieght kg 200 200 280
Size Of Fork LxWxT mm 1150x150x55 1150x150x55 1150x160x55
Fork Outter Width mm 560/685 560/685 550/685
Tire Type   PU PU PU
Size Of Tire Driving Tire 1 φ210x70 φ210x70 φ210x70
Bearing Tire 4 φ80x60 φ80x60 φ80x70
Balance Tire 0 / / /
Tire Distance Bearing Tire mm 410/535 410/535 390/525
Overal Length mm 1628 1628 1640
Overal Width mm 560/685 560/685 550/685
Max./Min.Handle Height mm 612/1195 725/1160 725/1160
Lifting Height mm 200 200 200
Lowered Height mm 85 85 85
Turning Radius mm 1425 1425 1465
Aisle Width:1000x1200 Across Fork mm 1830 1830 2125
Aisle Width:800x1200 Across Fork mm 1880 1880 2265
Min.Ground Clearance mm 35 35 30
Speed Travel Load Km/h 4 4 4
Without load Km/h 4.5 4.5 4.5
Lift Load mm/s 20 30 20
Without load mm/s 25 40 30
Fall Load mm/s 40 60 35
Without load mm/s 30 45 25
Max.gradeability Load/Without Load % 6/10 3/10 6/15
Service Brake   Electromagnetic Electromagnetic Electromagnetic
Motor Drive Motor, 60 Minute Rating kw 0.75 1 1.2
Lift Motor, Rating At S315% kw 0.8 0.8 0.8
Battery Type   Lead-acid Lead-acid Lead-acid
Battery Capacity v/ah 24/75 48/32 48/65
Drive Control Type   DC DC DC
Steering Type   Mechanical Mechanical Mechanical
