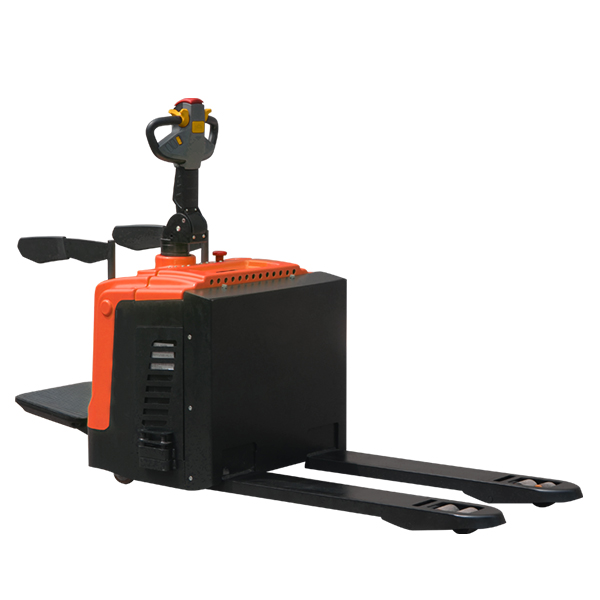

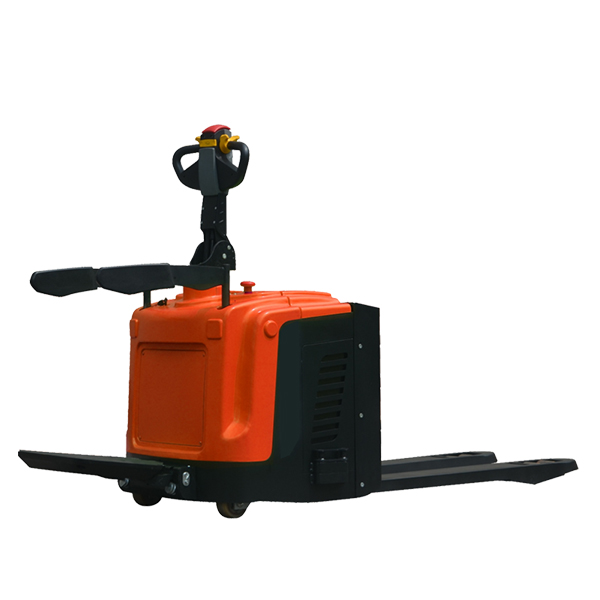

2.0-6.0 Ton Standing on Electric Pallet Truck ETM Series

Standing on Electric Pallet Truck adopts advanced electric drive technology and can meet the handling needs of various goods, ranging from lightweight electronic components to heavier mechanical parts. Due to its excellent load-bearing capacity, it is widely used in warehousing and logistics centers, manufacturing workshops, supermarket and retail distribution centers, as well as for luggage handling at airports and railway stations.

  • Model No :

    ETM20/25/30/40/50/60
  • Load Capacity :

    2000-6000kg
  • Lift Height :

    220mm
  • Drive Type :

    DC/AC
  • Battery :

    Lead-acid/Lithium
  • MOQ :

    1
  • Lead Time :

    15-20 Days

2.0-6.0 Ton Standing on Electric Pallet Truck
MHE Lithium Battery Operated Pallet Truck uses electric drive as its power source. The operator stands on the vehicle's pedal and drives, and realizes operations such as the handling and loading/unloading of goods by manipulating the control handle.It is one of the key equipment in modern warehousing and logistics processes. Standing On Electric Pallet Lifter Truck usually adopts AC drive, electronic steering, and large-capacity lead-acid batteries or lithium batteries. It features convenient operation, strong maneuverability, high efficiency and energy conservation, and high safety. According to the specific handling requirements of goods and the work requirements of the working scenarios, Reel Electric Powered Pallet Truck can be modified and customized. For example, it can be customized for low-temperature environments and used for operations in low-temperature working conditions such as cold storage facilities and cold regions. It can also be customized for explosion-proof environments and applied to operations in flammable and explosive places such as petroleum, chemical, and natural gas industries. In addition, it can be customized for handling special goods, such as reel,steel roll, paper roll, and oil drums. At the same time, for Heavy Duty Warehouse Pallet Truck, OEM & ODM customization services can be provided to help customers improve their handling efficiency.

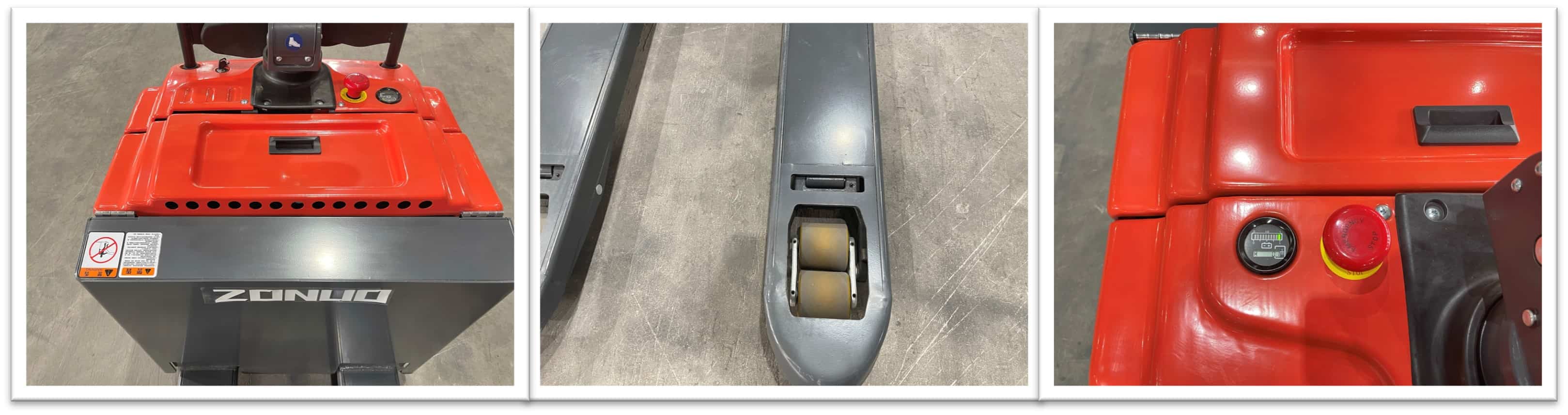

Details & Advantages

Standing Electric Lithium Powered Pallet Truck

Heavy Duty Reel Pallet Truck Manufacturer

Operational Convenience

1) Standing Operation: The operator drives while standing on the vehicle's pedal, enjoying a wide field of vision. They can clearly observe the handling path and the surrounding environment, which facilitates accurate control of the vehicle. This enables them to quickly respond to various situations and avoid collisions and misoperations.

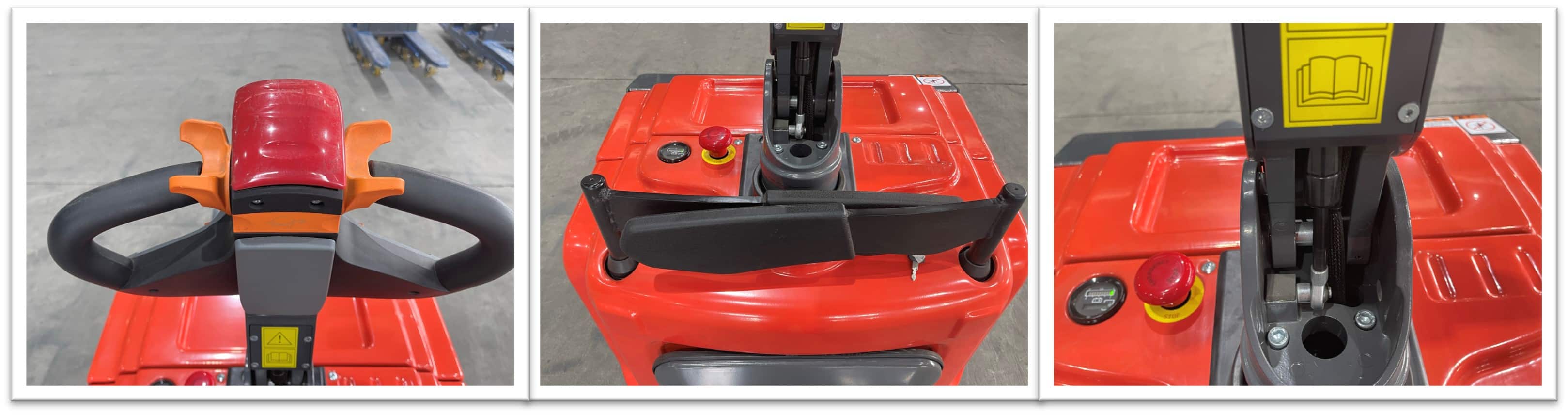

2) Humanized Control Handle: The control handle is designed according to ergonomic principles, with a reasonable layout of various function buttons. Function keys such as forward, backward, acceleration, deceleration, and cargo lifting and lowering are all within easy reach of the operator's fingers. The operation is easy and convenient, and it is not likely to cause fatigue to the operator even after long-term use.

Spatial Adaptability

3) Compact Body: The body is designed to be compact and small, with overall dimensions being relatively small. This allows the vehicle to move flexibly in narrow spaces.

4) Flexible Steering System: Equipped with a flexible steering system, it has a small turning radius. The vehicle can achieve in-place steering or turn at a small angle, quickly adjust its direction in complex environments, and accurately dock at the cargo storage position, greatly improving the handling efficiency.

Power and Performance

5) Efficient Electric Drive: Advanced electric drive technology is adopted, with stable power output and smooth acceleration and deceleration processes. The electric drive system responds quickly and can start, stop, and adjust the speed rapidly according to the operator's instructions, meeting the handling requirements in different working scenarios.

6) High-quality Battery Configuration: It is equipped with a large-capacity lead-acid battery or a lithium battery, providing a long endurance capacity and meeting the requirements of continuous operation for a long time.

7) AC Drive Technology: The AC drive system has higher efficiency and reliability, which can effectively reduce energy consumption and extend the service life of the motor and the battery.

Safety Performance

8) Multiple Safety Protections: A variety of safety protection devices are designed. For example, there is an emergency stop button. When the operator presses the button quickly, the vehicle will stop running immediately. There is also an overload protection system. When the handled cargo exceeds the vehicle's rated load capacity, the system will issue an alarm and restrict the vehicle's operation.


FAQ

1) What is terms of payment?

T/T, 30% deposit, 70% balance paid before shipment.

2) What is the inspection method?

Product photos, packaging, videos, and any other inspection methods required by customers.

3) How is the product packaged?

Naked, packaging film, wooden box, iron frame, and other required packaging methods.

4) How long is the warranty period?

18 months. Spare parts are provided free of charge during the warranty period.

Operation Video


Technical Parameter

Model   ETM20 ETM25 ETM30 ETM40 ETM50 ETM60
Power Type   Electric Electric Electric Electric Electric Electric
Operation Type   Stand-on Stand-on Stand-on Stand-on Stand-on Stand-on
Rated Capacity kg 2000 2500 3000 4000 5000 6000
Load Center  mm 600 600 600 600 600 600
Front Overhang mm 1040 1040 1040 1150 1150 1150
Wheelbase mm 1560 1560 1560 1450 1450 1450
Wieght kg 810 830 860 900 1020 1200
Size Of Fork LxWxT mm 1150x180x50 1150x180x50 1150x180x50 1200x180x60 1200x215x70 1200x215x70
Fork Outter Width mm 540/685 540/685 540/685 685 720 720
Tire Type   PU PU PU PU PU PU
Size Of Tire Driving Tire 1 φ250x75 φ250x75 φ250x75 φ230x75 φ254x102 φ254x102
Bearing Tire 4 φ80x80 φ80x80 φ80x80 φ80x80 φ80x110 φ80x110
Balance Tire 2 φ115x55 φ115x55 φ115x55 φ125x50 φ150x50 φ150x50
Tire Distance Bearing Tire mm 355/500 355/500 355/500 520 520 520
Overal Length(Pedal Retracted/Open) mm 1910/1985 1910/1985 1910/1985 1950/2365 1950/2365 1950/2365
Overal Width mm 810 810 810 850 850 850
Max./Min.Handle Height mm 1150/1455 1150/1455 1150/1455 1150/1455 1150/1455 1150/1455
Lifting Height mm 200 200 200 210 210 210
Lowered Height mm 85 85 85 90 90 90
Turning Radius mm 1745 1745 1745 1785 1785 1785
Aisle Width:1000x1200 Across Fork mm 2180 2180 2180 2520 2520 2520
Aisle Width:800x1200 Across Fork mm 2380 2380 2380 2720 2750 2750
Min.Ground Clearance mm 25 25 25 30 30 30
Speed Travel Load Km/h 5 5 5 5 5 5
Without load Km/h 5.5 5.5 5.5 5.5 5.5 5.5
Lift Load mm/s 20 20 15 45 45 45
Without load mm/s 30 20 20 45 45 45
Fall Load mm/s 30 30 35 50 50 50
Without load mm/s 20 20 20 35 35 35
Max.gradeability Load/Without Load % 6/8 6/8 6/8 6/10 5/8 5/8
Service Brake   Electromagnetic Electromagnetic Electromagnetic Electromagnetic Electromagnetic Electromagnetic
Motor Drive Motor, 60 Minute Rating kw 1.5 2.5 3.0 2.5 3 3
Lift Motor, Rating At S315% kw 0.8 2.2 2.2 2.2 3 3
Battery Type   Lead-acid Lead-acid Lead-acid Lead-acid Lead-acid Lead-acid
Battery Capacity v/ah 24/210 24/210 24/210 24/280 24/300 24/300
Drive Control Type   AC AC AC AC AC AC
Steering Type   Electric(EPS) Electric(EPS) Electric(EPS) Electric(EPS) Electric(EPS) Electric(EPS)
