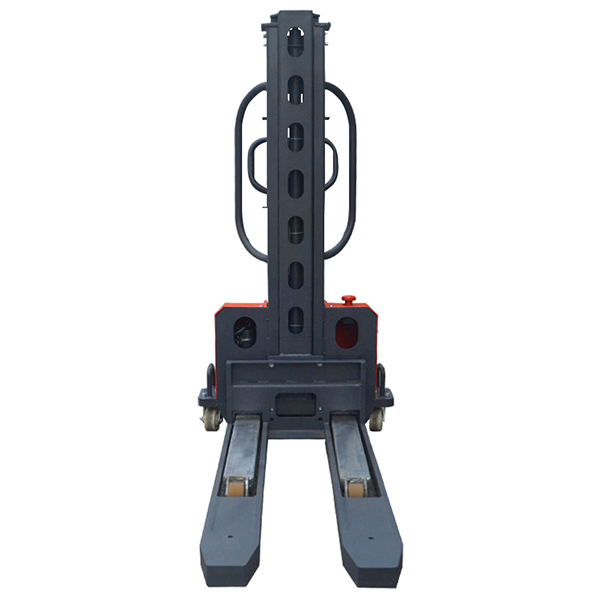

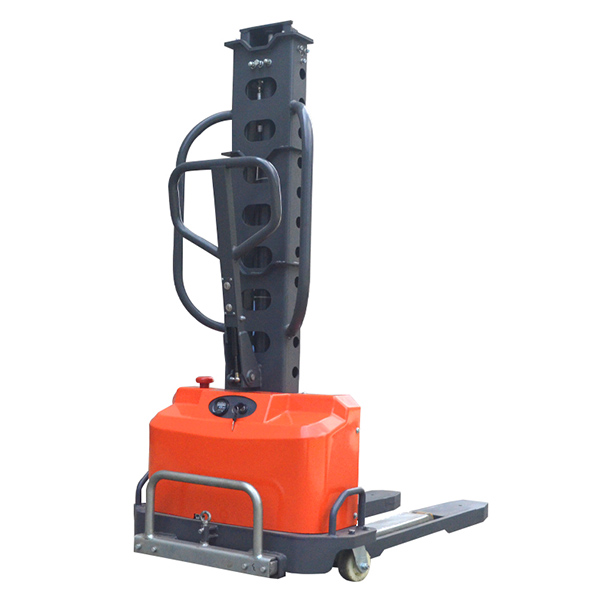

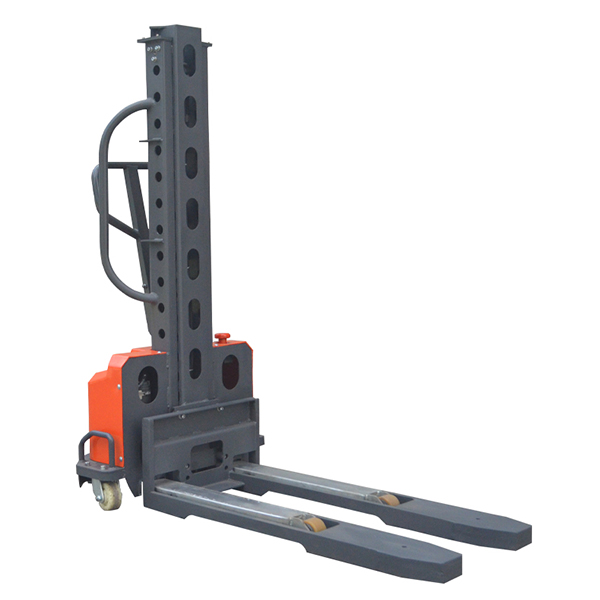

Electric Self Lifting Stacker has an automatic lifting function and can meet the handling and stacking needs of most small and medium-sized goods. It can be used for operations such as goods shelving, picking, sorting, and handling, and is widely applied in places like logistics centers, warehouses, factories, etc. For special working environments and requirements, OEM & ODM customization services can be provided.
Model No :
ESA05/07/10Load Capacity :
500-1000kgLift Height :
900-1600mmDrive Type :
DCBattery :
Lead-acid/LithiumMOQ :
2Lead Time :
7-15 Days500-1000 Kg Electric Self Lifting Stacker
Lithium Battery Powered Self Stacker is an industrial warehousing and handling equipment mainly driven by electricity and equipped with an automatic lifting function. Electric Self Loading Pallet Stacker is mainly used for lifting goods in the vertical direction and carrying out short-distance horizontal handling. It is one of the important equipment for improving the efficiency of goods handling and reducing labor costs. Electric Powered Self Loading Stacker has the characteristics of electric drive, automatic lifting, compactness and flexibility, safety and reliability, and simple operation. Walkie Self Lifting Stacker is mainly applied to operations such as goods shelving, picking, sorting, and handling in the logistics and warehousing field, the handling, transfer, and warehousing of raw materials in factory production workshops, as well as the storage and replenishment of goods in the warehouses of supermarkets and shopping malls.For different working requirements, special customization solutions can be provided, such as customization for special environments (explosion-proof environments, chemical environments, cold storage environments), customization of special dimensions (ultra-narrow body, extended forks), customization of special functions (weighing devices, navigation systems), and customization of special colors.

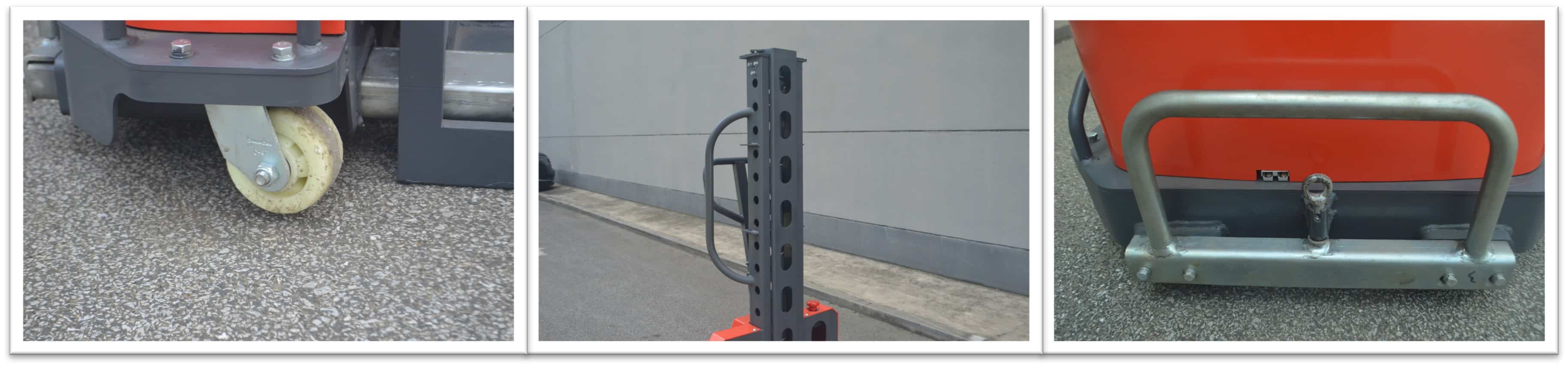

Details & Advantages
1) Compact body structure: The overall body design is relatively small and compact. The length, width, and height of the vehicle have been carefully planned, and the design concept of a narrow body and low center of gravity is usually adopted. It can flexibly move through narrow warehouse aisles and limited indoor spaces.
2) High-strength frame structure: The frame is made of high-quality steel or alloy materials. The frame structure is sturdy and durable, and methods such as welding or bolt connection are usually used to ensure the stability and reliability of the structure.
3) Flexible fork structure: The forks usually adopt an adjustable design, and their length, width, and spacing can be adjusted according to the size and shape of different goods.
4) Efficient lifting structure: An electric hydraulic lifting system is adopted, which is composed of components such as a motor, oil pump, oil cylinder, chain, or steel wire rope. The lifting process is smooth, the speed can be adjusted according to actual needs, and the lifting height can be precisely controlled.
5) Humanized operation structure: The operation handle integrates various functions such as forward movement, backward movement, lifting, and steering. The layout is reasonable and conforms to the principle of ergonomics.
6) Reliable driving structure: A high-performance electric driving system is adopted, including components such as a motor, speed reducer, and driving wheels. The driving system has good power output characteristics and can provide sufficient traction and driving force to meet the operation requirements of the stacker under different working conditions.
FAQ
1) What is terms of payment?
T/T, 30% deposit, 70% balance paid before shipment.
2) What is the inspection method?
Product photos, packaging, videos, and any other inspection methods required by customers.
3) How is the product packaged?
Naked, packaging film, wooden box, iron frame, and other required packaging methods.
4) How long is the warranty period?
18 months. Spare parts are provided free of charge during the warranty period.
Operation Video
Technical Parameter
Model | ESC05 | ESC07 | ESC10 | |||
Power Type | Electric | Electric | Electric | |||
Operation Type | Walkie | Walkie | Walkie | |||
Rated Capacity | kg | 500 | 700 | 1000 | ||
Load Center | mm | 400 | 400 | 400 | ||
Wheelbase | mm | 850 | 850 | 850 | ||
Wieght | kg | 215 | 230 | 280 | ||
Size Of Fork | LxWxT | mm | 1150x160x60 | 1150x160x60 | 1150x160x60 | |
Fork Outter Width | mm | 540 | 540 | 540 | ||
Tire Type | PU | PU | PU | |||
Size Of Tire | Steering Tire | 2 | φ100x50 | φ100x50 | φ100x50 | |
Bearing Tire | 2 | φ80x50 | φ80x50 | φ80x50 | ||
Balance Tire | 6 | φ40x30 | φ40x30 | φ40x30 | ||
Tire Distance | Front/Rear | mm | 380/670 | 380/670 | 380/670 | |
Overal Length | mm | 1555 | 1555 | 1555 | ||
Overal Width | mm | 790 | 790 | 790 | ||
Lifting Height | mm | 1300 | 1300 | 1300 | ||
Free Lifting Height | mm | 0 | 0 | 0 | ||
Mast Closed Height | mm | 1615 | 1615 | 1615 | ||
Mast Extended Height | mm | 2870 | 2870 | 2870 | ||
Turning Radius | mm | 1120 | 1120 | 1120 | ||
Speed | Travel | Load | Km/h | 1 | 1 | 1 |
Without load | Km/h | 3.5 | 3.5 | 3.5 | ||
Lift | Load | mm/s | 50 | 50 | 50 | |
Without load | mm/s | 60 | 60 | 60 | ||
Fall | Load | mm/s | 100 | 100 | 100 | |
Without load | mm/s | 100 | 100 | 100 | ||
Max.gradeability | Load/Without Load | % | 5/10 | 5/10 | 5/10 | |
Motor | Drive Motor, 60 Minute Rating | kw | 0.6 | 0.6 | 0.6 | |
Lift Motor, Rating At S315% | kw | 1.6 | 1.6 | 1.6 | ||
Battery Type | Lead-acid | Lead-acid | Lead-acid | |||
Battery Capacity | v/ah | 48/15 | 48/15 | 48/15 | ||
Drive Control Type | DC | DC | DC | |||
Steering Type | Mechanical | Mechanical | Mechanical |
