Walking Electric counterbalance Stacker Truck combines electric drive technology with the counterbalance principle. The operator follows and operates the stacker on foot. It features flexible operation, labor-saving and high efficiency, as well as safety and reliability. It is widely used in the back-end warehouses of e-commerce and retail enterprises, logistics distribution centers, and the back-end warehouses of supermarkets and stores. Various special customization solutions can be provided.
Model No :
ESC05/10/12Load Capacity :
500-1200kgLift Height :
1600-4000mmDrive Type :
DC/ACBattery :
Lead-acid/LithiumMOQ :
1Lead Time :

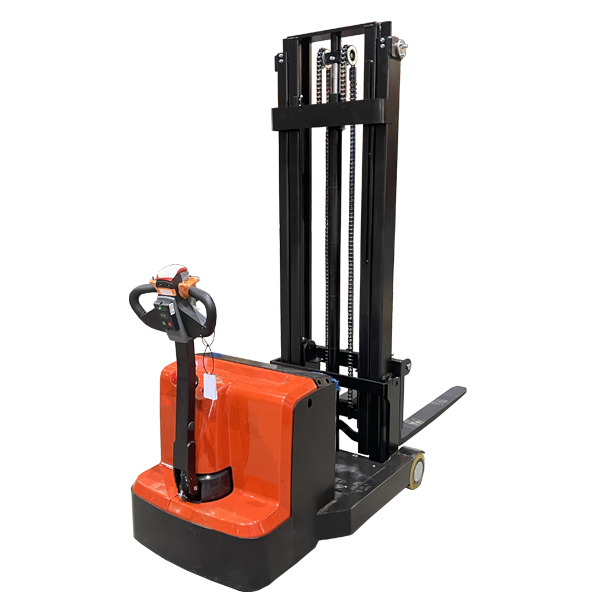

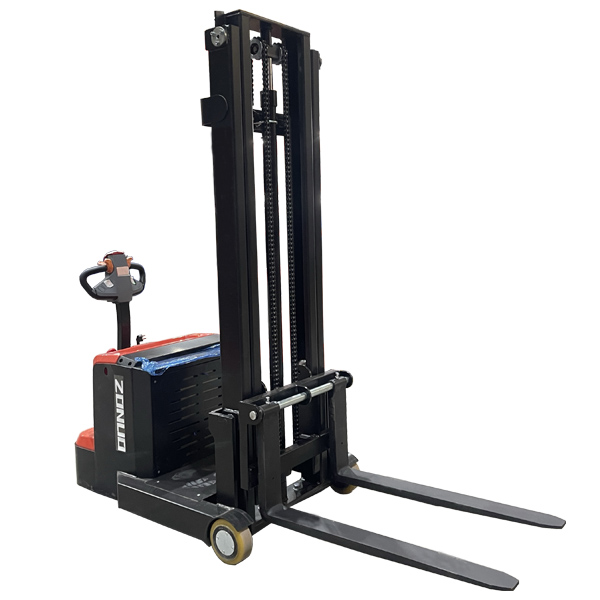

15-20 Days500-1200 Kg Walkie Electric Counterbalance Pallet Stacker
Lithium Electric Counterbalance Stacker is an efficient material handling equipment commonly used in the warehousing and logistics field. It stabilizes the vehicle body when carrying goods through the counterweight at the rear of the vehicle. The front end of the vehicle is equipped with forks that can move vertically to handle palletized goods, realizing operations such as stacking and loading/unloading of goods. Full Electric Warehouse Stacker Lifter plays an indispensable role in the raw material warehouses of manufacturing enterprises, the finished product warehouses of e-commerce and retail enterprises, the internal shelf areas of logistics warehouses, and the handling and storage of food, daily necessities and other goods. Due to its special vehicle structure design, Counterweight Electric Powered Stacker combines the advantages of stackers and counterbalance forklifts, and it operates stably and is safe and reliable. Meanwhile, according to the specific working requirements of Battery Electric Pedestrian Power Stacker, customization for cold storage environments, explosion-proof environments, narrow aisle work, and large pallets can be carried out. In the modern warehousing and logistics field, it plays an irreplaceable role.

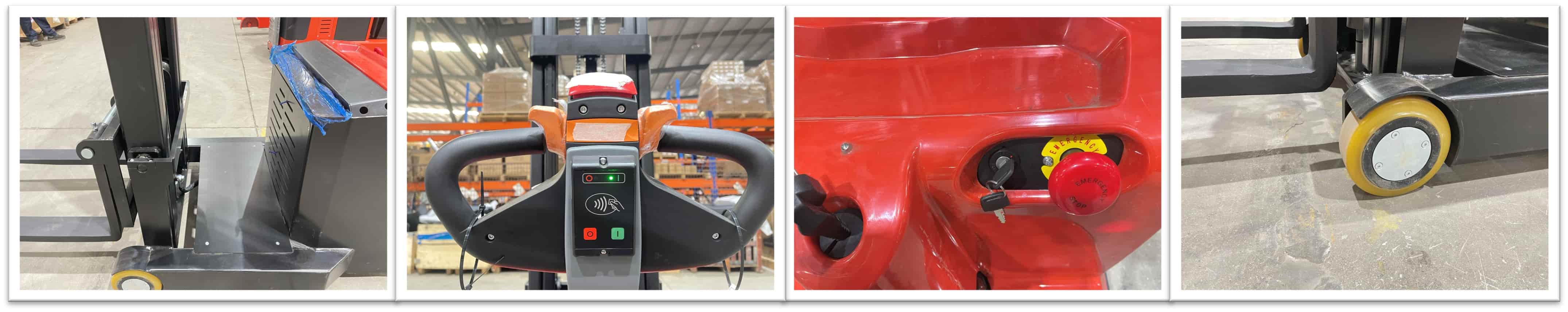

Details & Advantages
Vehicle Body Design
1) Compact Body: The vehicle body is designed to be compact, with a small turning radius, effectively improving space utilization.
2) Walk-behind Operation: Operators control the stacker by walking behind it, which facilitates precise control of the vehicle's traveling, lifting, and forking actions.
Counterweight Design
3) Stable Load-bearing: Equipped with a counterweight, based on the lever principle, it can effectively balance the moment generated by the weight of the goods when forking and transporting them, preventing the vehicle from tipping forward.
4) Adaptability to Different Working Conditions: The counterweight design enables the stacker to maintain a relatively good balance even on slightly sloping or uneven ground, adapting to a variety of different workplace conditions.
Electric Drive System
5) Energy-saving and Environment-friendly: It adopts electric drive, with no exhaust emissions during operation and low noise, being environmentally friendly. It is especially suitable for use in indoor warehouses, food and drug warehouses, and other places with high environmental requirements.
6) Easy to Operate: It has good speed regulation performance. Through the control handle, operators can easily achieve the forward, backward, acceleration, deceleration of the vehicle, as well as the lifting of the forks.
Safety Design
7) Multiple Safety Devices: It is equipped with a variety of safety protection devices, such as an overload protection device and an emergency stop button.
8) Good Vision Design: The vehicle body structure and fork design fully consider the vision requirements of operators, reducing operation blind spots and lowering accident risks.
FAQ
1) What is terms of payment?
T/T, 30% deposit, 70% balance paid before shipment.
2) What is the inspection method?
Product photos, packaging, videos, and any other inspection methods required by customers.
3) How is the product packaged?
Naked, packaging film, wooden box, iron frame, and other required packaging methods.
4) How long is the warranty period?
18 months. Spare parts are provided free of charge during the warranty period.
Operation Video
Technical Parameter
Model | ESC05 | ESC10 | ESC12 | |||
Power Type | Electric | Electric | Electric | |||
Operation Type | Walkie | Walkie | Walkie | |||
Rated Capacity | kg | 500 | 1000 | 1200 | ||
Load Center | mm | 400 | 400 | 500 | ||
Front Overhang | mm | 110 | 100 | 85 | ||
Wheelbase | mm | 775 | 1000 | 1315 | ||
Wieght | kg | 990 | 1430 | 1480 | ||
Size Of Fork | LxWxT | mm | 820x100x35 | 820x100x35 | 1070x100x35 | |
Fork Outter Width | mm | 210-640 | 210-640 | 200-580 | ||
Tire Type | PU | PU | PU | |||
Size Of Tire | Driving Tire | 1 | φ210x70 | φ210x70 | φ250x80 | |
Bearing Tire | 2 | φ178x73 | φ178x73 | φ210x85 | ||
Balance Tire | 0 | / | / | / | ||
Tire Distance | Bearing Tire | mm | 730 | 800 | 800 | |
Overal Length | mm | 1920 | 2085 | 2610 | ||
Overal Width | mm | 800 | 880 | 890 | ||
Max./Min.Handle Height | mm | 1075/1505 | 730/1165 | 730/1165 | ||
Lifting Height | mm | 3000 | 3000 | 3000 | ||
Free Lifting Height | mm | 130 | 130 | 130 | ||
Mast Closed Height | mm | 2060 | 2050 | 2050 | ||
Mast Extended Height | mm | 3550 | 3530 | 3530 | ||
Turning Radius | mm | 985 | 1175 | 1480 | ||
Aisle Width:1000x1200 Across Fork | mm | 2475 | 2745 | 3085 | ||
Aisle Width:800x1200 Across Fork | mm | 2365 | 2630 | 2840 | ||
Min.Ground Clearance | mm | 40 | 40 | 70 | ||
Speed | Travel | Load | Km/h | 4 | 4 | 3.5 |
Without load | Km/h | 4.5 | 4.5 | 4 | ||
Lift | Load | mm/s | 120 | 100 | 130 | |
Without load | mm/s | 130 | 160 | 215 | ||
Fall | Load | mm/s | 130 | 130 | 130 | |
Without load | mm/s | 100 | 100 | 100 | ||
Max.gradeability | Load/Without Load | % | 3/5 | 5/10 | 4/5 | |
Service Brake | Electromagnetic | Electromagnetic | Electromagnetic | |||
Motor | Drive Motor, 60 Minute Rating | kw | 0.75 | 0.75 | 1.5 | |
Lift Motor, Rating At S315% | kw | 2.2 | 2.2 | 2.2 | ||
Battery Type | Lead-acid | Lead-acid | Lead-acid | |||
Battery Capacity | v/ah | 24/100 | 24/100 | 24/150 | ||
Drive Control Type | DC | DC | AC | |||
Steering Type | Mechanical | Mechanical | Mechanical |
