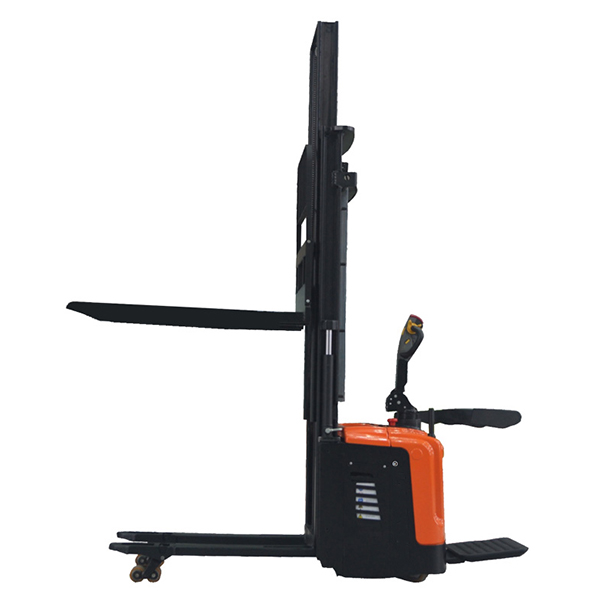

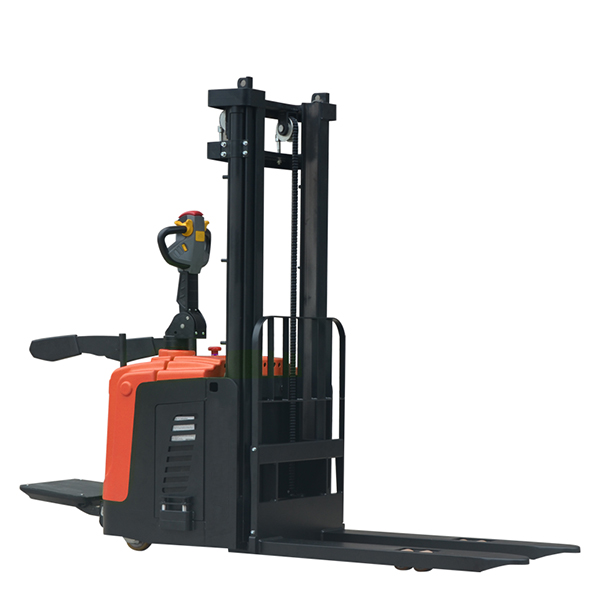

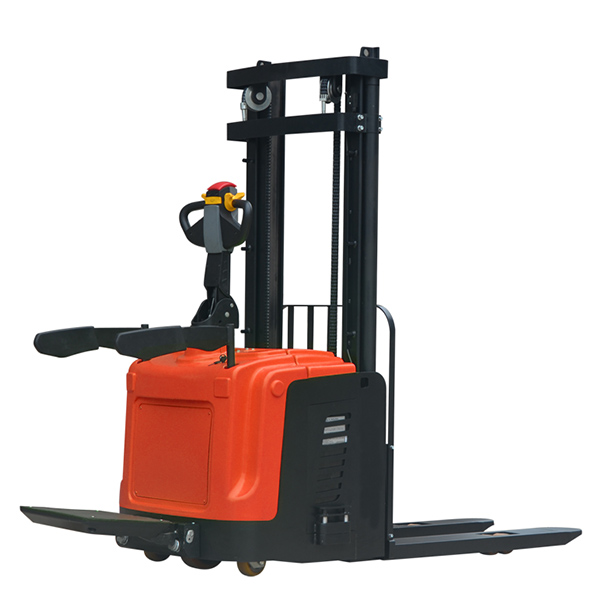

Standing On Electric Stacker Truck is a kind of material handling equipment that the operator drives and operates while standing on the rear pedal. It has the characteristics of flexibility, high-efficiency operation, and comfortable operation. Moreover, through diversified customization solutions, it can meet the complex and changeable material handling needs of various industries.
Model No :
ESM10/15/20Load Capacity :
1000-2000kgLift Height :
1600-6000mmDrive Type :
DC/ACBattery :
Lead-acid/LithiumMOQ :
1Lead Time :
15-20 Days1.0-2.0 Ton Standing On Electric Pallet Stacker
Standing Electric Pallet Jack Stacker is a kind of high-efficiency material handling equipment that uses a storage battery as the power source and is commonly used in places such as warehousing logistics centers and factory workshops. Lithium Electric Power Forklift Stacker adopts high-performance DC or AC motors to provide continuous and stable power output, and realizes the smooth lifting and lowering of the forks through advanced hydraulic technology. It is equipped with a large-capacity battery, and a single charge can meet 4 to 8 hours of continuous operation. Electric Warehouse Stacker Lifter is usually equipped with an advanced integrated controller with a fault self-diagnosis function, which can accurately control the motor speed, steering, hydraulic actions, etc., and achieve intelligent operation of the vehicle. Standing Up Pallet Stacker Truck is widely used in warehousing logistics centers, manufacturing workshops, supermarkets, retail distribution centers, and cold chain logistics warehouses. In response to the particularity of customers' working scenarios and material handling requirements, customized services can be provided, such as customization for ultra-high stacking, customization for narrow aisles, customization for handling special goods, customization for explosion-proof environments, and enhanced customization for cold storage environments. With its many advantages, it plays an indispensable role in modern logistics and industrial production.

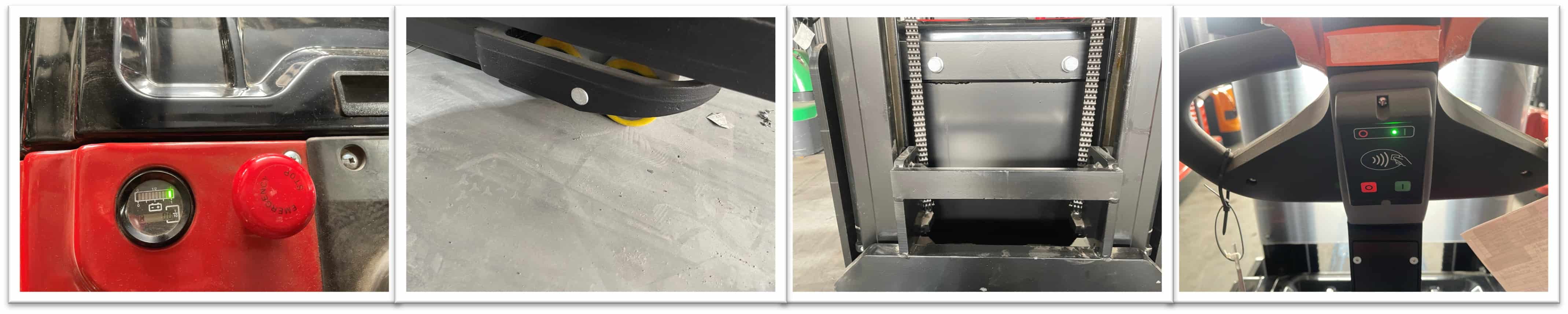

Details & Advantages
Operational Convenience
1) Compact Control Layout: The control handle is usually designed in a position that is easily accessible to the operator. The functional buttons are reasonably arranged with a high degree of integration. It enables easy control of actions such as forward movement, backward movement, steering, lifting, and lowering, reducing the operation difficulty and facilitating the operator to perform precise operations.
Maneuverability and Flexibility
2) Small Turning Radius: With an advanced steering system, it is usually equipped with drive wheels at the rear of the vehicle, and the wheel diameter is relatively small. This gives the stand-on electric stacker a small turning radius, allowing it to turn flexibly in narrow aisles and limited spaces.
High Operational Efficiency
3) Rapid Lifting and Lowering: Equipped with a high-performance hydraulic system, it can achieve rapid lifting and lowering of the forks, shortening the single operation cycle time.
4) Efficient Drive System: Using a DC or AC motor as the power source, it has good power output characteristics, which can provide sufficient traction force, enabling the vehicle to maintain a high driving speed even when fully loaded and improving the material handling efficiency.
Safety Design
5) Multiple Braking Protections: It is equipped with various braking devices, such as electromagnetic braking, hydraulic braking, and mechanical braking, etc.
6) Safety Protection Devices: A variety of safety protection devices are designed, such as an overload protection device and an emergency stop button.
Maintenance Convenience
7) Fault Diagnosis System: It is equipped with an advanced fault diagnosis system that can monitor the running status of the vehicle in real time. Once a fault occurs, the system will automatically diagnose and display the fault code, helping maintenance personnel quickly locate and troubleshoot the fault.
FAQ
1) What is terms of payment?
T/T, 30% deposit, 70% balance paid before shipment.
2) What is the inspection method?
Product photos, packaging, videos, and any other inspection methods required by customers.
3) How is the product packaged?
Naked, packaging film, wooden box, iron frame, and other required packaging methods.
4) How long is the warranty period?
18 months. Spare parts are provided free of charge during the warranty period.
Operation Video
Technical Parameter
Model | ESM10 | ESM15 | ESM20 | |||
Power Type | Electric | Electric | Electric | |||
Operation Type | Stand-on | Stand-on | Stand-on | |||
Rated Capacity | kg | 1000 | 1500 | 2000 | ||
Load Center | mm | 600 | 600 | 600 | ||
Front Overhang | mm | 675 | 675 | 675 | ||
Wheelbase | mm | 1335 | 1335 | 1335 | ||
Wieght | kg | 1030 | 1070 | 1100 | ||
Size Of Fork | LxWxT | mm | 1150x180x60 | 1150x180x60 | 1150x180x60 | |
Fork Outter Width | mm | 570/695 | 570/695 | 570/695 | ||
Tire Type | PU | PU | PU | |||
Size Of Tire | Driving Tire | 1 | φ250x75 | φ250x75 | φ250x75 | |
Bearing Tire | 4 | φ80x70 | φ80x70 | φ80x70 | ||
Balance Tire | 2 | φ115x55 | φ115x55 | φ115x55 | ||
Tire Distance | Bearing Tire | mm | 390/515 | 390/515 | 390/515 | |
Overal Length | mm | 2040 | 2040 | 2040 | ||
Overal Width | mm | 810 | 810 | 810 | ||
Max./Min.Handle Height | mm | 1065/1440 | 1065/1440 | 1065/1440 | ||
Lifting Height | mm | 3000 | 3000 | 3000 | ||
Free Lifting Height | mm | 165 | 165 | 165 | ||
Mast Closed Height | mm | 2000 | 2000 | 2000 | ||
Mast Extended Height | mm | 3410 | 3410 | 3410 | ||
Turning Radius | mm | 1570 | 1570 | 1570 | ||
Aisle Width:1000x1200 Across Fork | mm | 2450 | 2450 | 2450 | ||
Aisle Width:800x1200 Across Fork | mm | 2350 | 2350 | 2350 | ||
Min.Ground Clearance | mm | 25 | 25 | 25 | ||
Speed | Travel | Load | Km/h | 5 | 5 | 5 |
Without load | Km/h | 5.5 | 5.5 | 5.5 | ||
Lift | Load | mm/s | 95 | 80 | 80 | |
Without load | mm/s | 130 | 130 | 130 | ||
Fall | Load | mm/s | 200 | 200 | 200 | |
Without load | mm/s | 180 | 180 | 180 | ||
Max.gradeability | Load/Without Load | % | 6/8 | 6/8 | 6/8 | |
Service Brake | Electromagnetic | Electromagnetic | Electromagnetic | |||
Motor | Drive Motor, 60 Minute Rating | kw | 1.5 | 2.5 | 2.5 | |
Lift Motor, Rating At S315% | kw | 3 | 3 | 3 | ||
Battery Type | Lead-acid | Lead-acid | Lead-acid | |||
Battery Capacity | v/ah | 24/210 | 24/210 | 24/210 | ||
Drive Control Type | AC | AC | AC | |||
Steering Type | Electric(EPS) | Electric(EPS) | Electric(EPS) |
