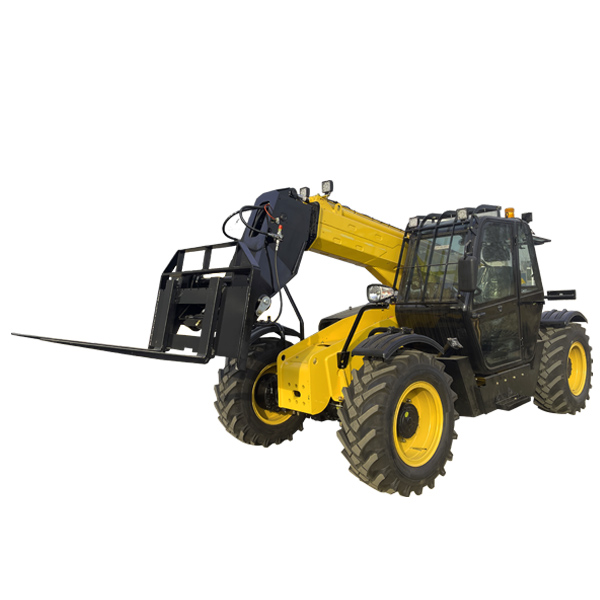

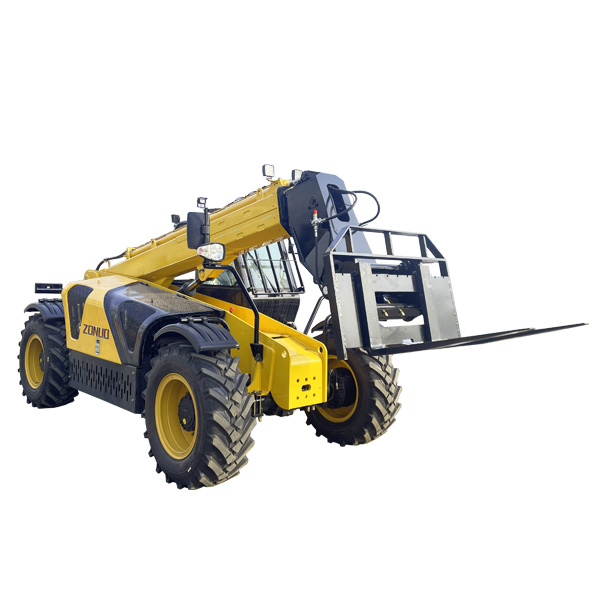

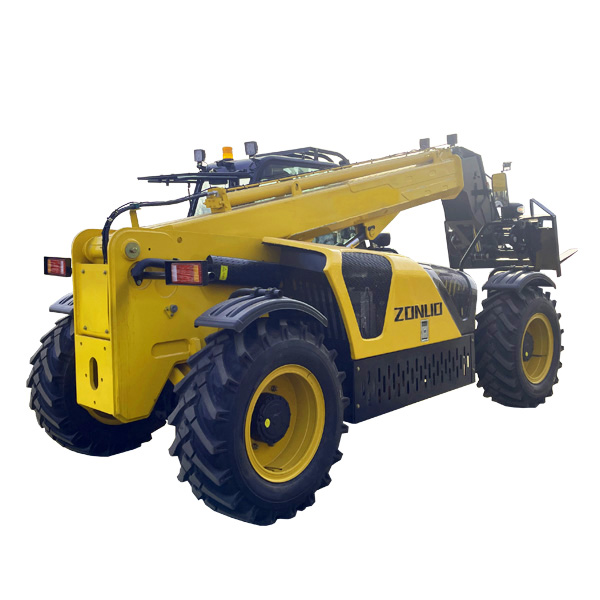

2.5-5.0 Ton Telescopic Forklift Truck FT Series

Telescopic Forklift Truck (Telehandler) has the characteristics of telescopic arm length and wide operating range, which is mainly used in the construction field, warehousing and logistics industry, port operation, industrial and mining enterprise operation, etc., and can adapt to various complex working conditions. For special work requirements, customized attachments can be provided.

  • Model No :

    FT25/30/35/40/50
  • Load Capacity :

    2500-5000kg
  • Lift Height :

    7000-18000mm
  • Transmission :

    Hydraulic(automatic)
  • Engine :

    Yuchai/Yunnei/Cummins
  • Optional :

    Customized Attachments
  • MOQ :

    1
  • Lead Time :

    20-25 Days

2.5-5.0 Ton Telescopic Forklift Truck

Telescopic Boom Forklift is a special construction machine integrating multiple functions. Telehandler Forklift organically combines the telescopic boom structure of a crane, the forking function of a traditional forklift, and the rapid movement and shoveling ability of a loader, thus possessing strong versatility and flexibility. Through the hydraulic system to control the extension and lifting of the telescopic boom, it can carry out operations such as forking, transporting, and stacking materials at different heights and distances. Telescopic Handler adopts a four-wheel drive mode and has multiple steering modes, such as front-wheel steering, rear-wheel steering, four-wheel steering, and crab steering. Different steering modes can be switched according to actual operation requirements. According to the requirements of different working scenarios. Telescopic Diesel Forklift can be equipped with fork tines of different lengths, lifting booms, various types of clamps (sideshifters, rotators, grippers), hooks, buckets, aerial work platforms, timber grapples, etc. With its unique design and excellent performance, it plays an irreplaceable and crucial role in numerous fields.


Deatails & Advantages

Cummins Engine Telescopic Handler Truck

Rough Terrain Telescopic Diesel Forklift

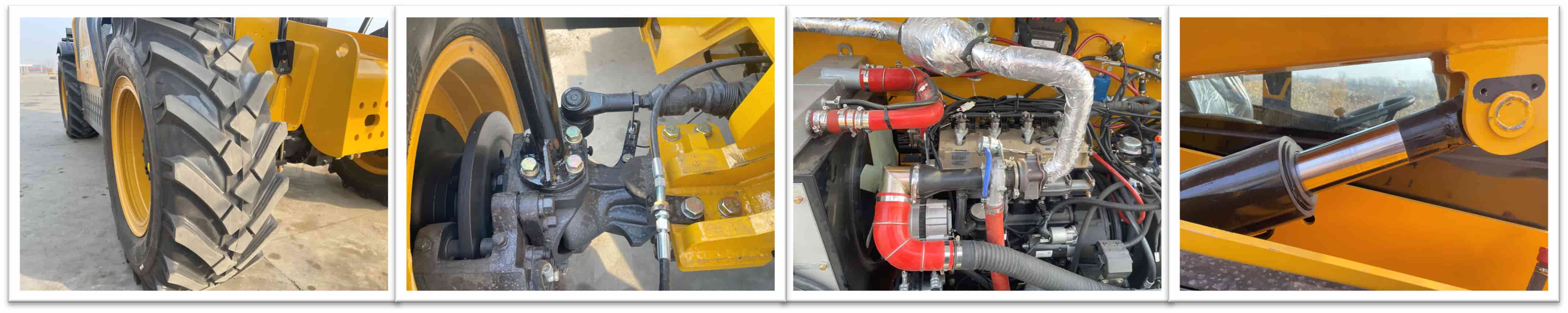

1) Multi-functional telescopic boom: As the core component, it is usually made of high-strength steel and has a multi-section retractable structure. This design can not only achieve flexible adjustment of the boom length to meet the requirements of different working heights and distances.

2) Diversified attachment ends for attachments: The front end is designed with connection devices suitable for various attachments, allowing for quick replacement of different attachments such as fork tines, lifting booms, clamps, and hooks. Operators can, according to specific operation tasks, for example, use fork tines for handling palletized goods and switch to a lifting boom for hoisting large equipment, completing the switch within a few minutes, enabling a single vehicle to have multiple operation functions and greatly expanding the application scenarios.

3) Sturdy and stable chassis: The chassis adopts a heavy-duty frame structure, paired with large-size tires with high load-bearing capacity and a high-performance suspension system. On the one hand, it ensures that the vehicle has sufficient ground clearance to smoothly pass through rugged terrains, potholed roads on construction sites, etc., providing good off-road performance; on the other hand, when carrying heavy loads, driving at high speed or performing intense operation movements, it maintains the stability of the vehicle body to ensure operation safety.

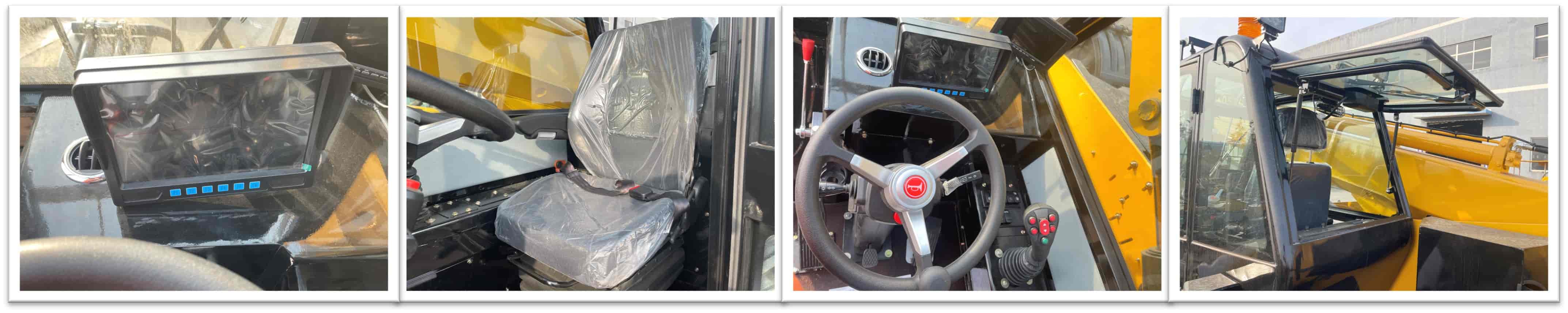

4) Comfortable and wide-vision cab: The layout of the cab is carefully designed to provide operators with a comfortable operating environment, equipped with ergonomic seats, operating handles and instrument panels. At the same time, the large-area window glass and reasonable rear-view mirror settings ensure that operators have a wide field of vision and can clearly observe the situation around the vehicle, the telescopic boom and the operation site, facilitating precise control and reducing the risk of misoperation.

5) Efficient hydraulic control system: It relies on an advanced hydraulic system to drive the extension, lifting and movement of the telescopic boom and attachments. The hydraulic pump, valve group and other components work in close coordination, possessing the characteristics of rapid response and precise control. Operators can, through slight operations of the handles in the cab, smoothly and precisely control every link of material loading, unloading and transportation, improving operation efficiency.


FAQ

1) What is terms of payment?

T/T, 30% deposit, 70% balance paid before shipment.

2) What is the inspection method?

Product photos, packaging, videos, and any other inspection methods required by customers.

3) How is the product packaged?

Naked, packaging film, wooden box, iron frame, and other required packaging methods.

4) How long is the warranty period?

18 months. Spare parts are provided free of charge during the warranty period.

Operation Video


Technical Parameter

Model   FT25 FT30 FT35 FT40 FT50
Power Type   Diesel Diesel Diesel Diesel Diesel
Operation Type   Seated Seated Seated Seated Seated
Rated Capacity kg 2500 3000 3500 4000 5000
Lifting Height mm 6000 7000 7000 7000 7000
Reach Distance mm 3300 3600 3600 4000 4000
Size Of Fork LxWxT mm 1220x125x50 1220x125x50 1220x125x50 1220x125x50 1220x125x50
Tire Type   Pneumatic Pneumatic Pneumatic Semi-Solid Tire Radial Tire
Size Of Tire Front   14-17.5 16/17-20 16/17-24 16/70-24 400/80 R24
Rear   14-17.5 16/17-20 16/17-24 16/70-24 400/80 R24
Tilt Angle Up/Down ° 12/110 12/110 12/110 12/110 12/110
Overal Length (Without Fork) mm 3900 4650 4650 4650 4650
Overal Width mm 1810 2150 2150 2150 2200
Overall Height mm 2000 2300 2300 2300 2400
Turning Radius mm 3310 4250 4250 4250 4250
Wheelbase mm 2300 2850 2850 2850 2850
Wheel Distance Front mm 1480 1750 1750 1750 1750
Rear mm 1480 1750 1750 1750 1750
Min.Ground Clearance mm 380 350 350 350 350
Max.Travel Speed km/h 30 25 25 25 25
Working Time Lift s 18 18 18 18 18
Fall s 15 15 15 15 15
Outreach s 16 16 16 16 16
Retract s 14 14 14 14 14
Tip-Up s 5 5 5 5 5
Tip-Down s 4 4 4 4 4
Drive Type   4 Wheel Drive 4 Wheel Drive 4 Wheel Drive 4 Wheel Drive 4 Wheel Drive
Steering Type   Front Wheel Steering Front Wheel Steering Front Wheel Steering Front Wheel Steering Front Wheel Steering
Four Wheel Steering Four Wheel Steering Four Wheel Steering Four Wheel Steering Four Wheel Steering
Crab Steering Crab Steering Crab Steering Crab Steering Crab Steering
Transmission Type   Closed-loop Hydrostatic Transmission System Torque Converter Torque Converter Torque Converter Torque Converter
Service Brake   Disc Brake Disc Brake Disc Brake Disc Brake Disc Brake
Parking Brake   Negative Brake Negative Brake Negative Brake Negative Brake Negative Brake
Hydraulic Control System   Multifunctional Centralized Handle(Overload Protection System) Multifunctional Centralized Handle(Overload Protection System) Multifunctional Centralized Handle(Overload Protection System) Multifunctional Centralized Handle(Overload Protection System) Multifunctional Centralized Handle(Overload Protection System)
Frame Leveling ° +/- 9 +/- 9 +/- 9 +/- 9 +/- 9
Total Weight kg 4990 7000 7200 7800 10000
Engine Model   YUNNEI/YN27GBZ YUNNEI/YN38GBZ YUNNEI/YN38GBZ YUCHAI YCD4J22T-115 YUCHAI YCD4J22T-125
Rated Power/Speed kW/rpm 58 76 76 85 91
