Products

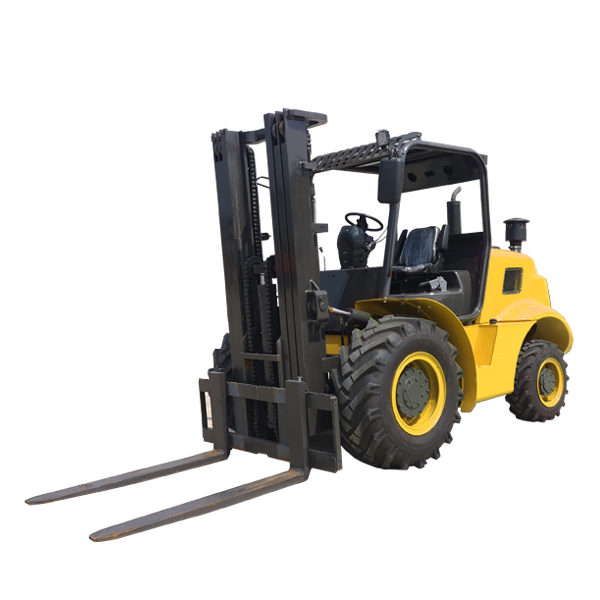

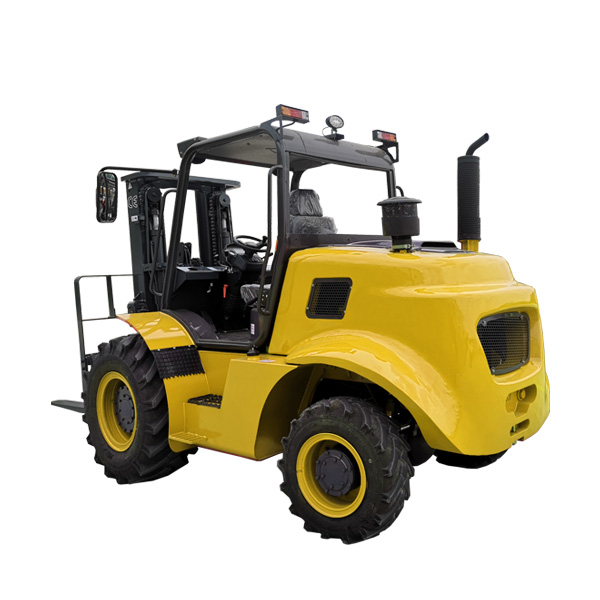

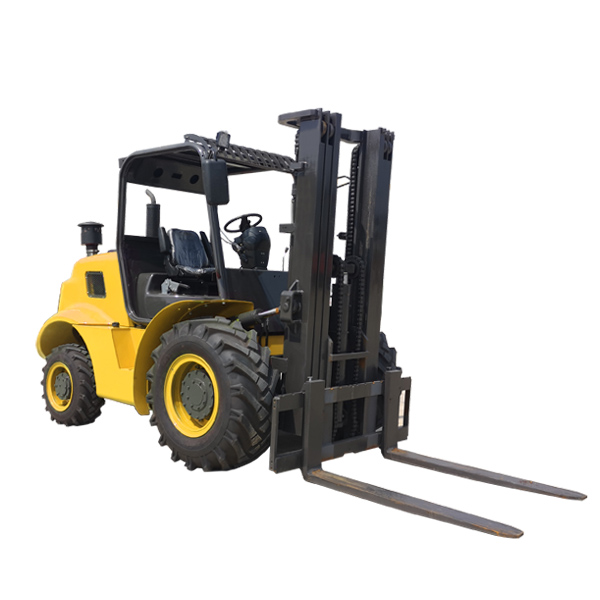

3.0-5.0 Ton Rough Terrain Forklift FR Series

Off Road Forklifts, which are capable of working on construction sites with complex ground conditions, in mines and ports with harsh environments. Rough Terrain Forklift can assist in the transfer of goods in logistics warehouses with uneven road surfaces, as well as in the handling of goods in farmlands and forest farms. In addition, customized services can be provided to work in some special scenarios.

  • Model No :

    FR30/40/50
  • Load Capacity :

    3000-5000kg
  • Lift Height :

    3000-8000mm
  • Transmission :

    Hydraulic(automatic)
  • Engine :

    Xinchai/Yanmar/Cummins/Kohler
  • Optional :

    Customized Attachments
  • MOQ :

    1
  • Lead Time :

    15-20 Days

3.0-5.0 Ton Rough Terrain Forklift

Off Road Forklift Truck are material handling equipment specifically designed for operations in complex terrains and harsh environments. All Terrain Forklift is equipped with a high-power engine to provide strong power output, meeting the traction and lifting requirements under off-road conditions. It adopts a high-strength chassis structure that can withstand large loads and impacts. It is equipped with large-sized, wide-section off-road tires. The tires have deep tread patterns and good grip, providing reliable traction and stability on different road surfaces such as muddy, sandy, and snowy areas. Off Terrain Forklift has a four-wheel drive or all-wheel drive system, which can provide powerful traction and adapt to various complex terrains, such as steep slopes, muddy roads, and sandy areas. Rough Terrain Forklift Trucks can be customized with a variety of attachments according to different operational needs, such as extended forks, lifting arms, buckets, clamps, rotators, side shifters, etc. With its unique structural design, powerful performance advantages, and wide range of application scenarios, They plays an important role in the material handling field, providing efficient and safe solutions for cargo handling in various complex environments.

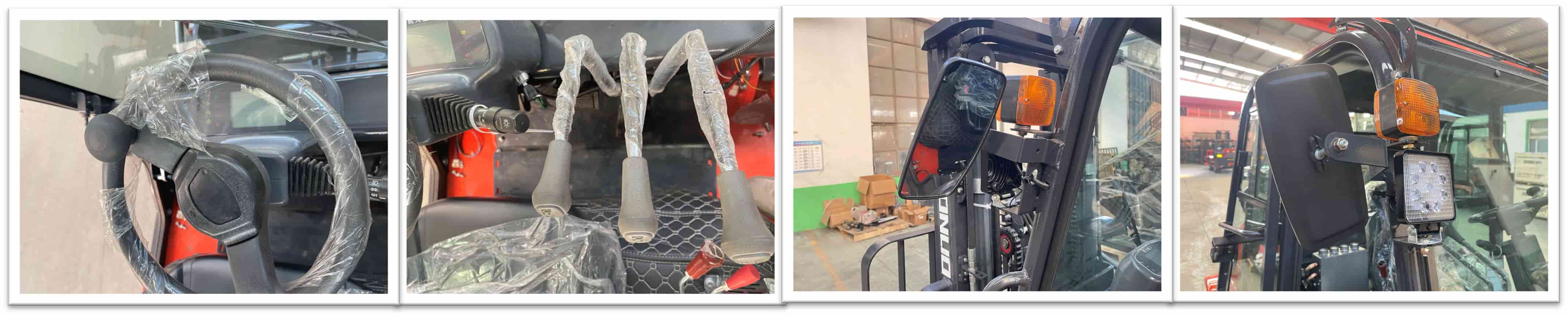

Deatails & Advantages

Euro 5 Rough Terrain Forklift

Cummins Engine Off Road Forklift

1) Powerful power system: Usually equipped with a high-power engine, it can output strong power. It has excellent torque characteristics and can output a large torque at low speeds.

2) High-strength chassis: The chassis structure is made of high-strength steel, which can withstand large loads and impacts. It can adapt to rough and uneven road surfaces.

3) Excellent suspension system: The suspension system is robust with a large stroke and has good shock absorption performance, reducing the shaking and damage of goods and improving the safety and efficiency of operations.

4) Large-sized off-road tires: Equipped with large-sized and wide-section off-road tires, the tires have deep tread patterns and strong grip. Under different harsh road conditions, they can provide reliable traction and stability.

5) Compact and low-center-of-gravity body: The body is designed compactly with a relatively low center of gravity, which is beneficial for enhancing the stability of the vehicle during off-road driving.

6) High ground clearance: It has a relatively high ground clearance, which can prevent the chassis from colliding with ground obstacles during driving. It can easily pass over bumps, stones and other obstacles and adapt to a variety of complex terrains.

7) Flexible steering system: The steering system is flexibly designed with a small turning radius. It is convenient for turning around and driving in narrow spaces, making the operation more convenient and improving the maneuverability in complex environments.

8) Reliable braking system: The braking device is reliable, including service braking and parking braking. Some models are also equipped with an Anti-lock Braking System (ABS).


FAQ

1) What is terms of payment?

T/T, 30% deposit, 70% balance paid before shipment.

2) What is the inspection method?

Product photos, packaging, videos, and any other inspection methods required by customers.

3) How is the product packaged?

Naked, packaging film, wooden box, iron frame, and other required packaging methods.

4) How long is the warranty period?

18 months. Spare parts are provided free of charge during the warranty period.

Operation Video


Technical Parameter

Model   FR30 FR35 FR40 FR50
Power Type   Diesel Diesel Diesel Diesel
Drive Type   4WD 4WD 4WD 4WD
Operation Type   Seated Seated Seated Seated
Rated Capacity kg 3000 3500 4000 5000
Load Center  mm 500 500 500 500
Lifting Height mm 3000 3000 3000 3000
Free Lift Height mm 150 150 150 150
Size Of Fork LxWxT mm 1220x125x45 1220x125x45 1220x125x50 1370x150x55
Tire Type   Pneumatic Pneumatic Pneumatic Pneumatic
Size Of Tire Front   14-17.5 14-17.5 16/70-20 16/70-20
Rear   10-16.5 10-16.5 10-16.5 10-16.5
Mast Tilt Front/Rear ° 6/12 6/12 6/12 6/12
Overal Length (Without Fork) mm 3300 3300 3370 3450
Overal Width mm 1760 1760 1860 1860
Mast Closed Height mm 2305 2305 2305 2420
Mast Extended Height mm 4350 4350 4350 4350
Overhead Guard Height mm 2380 2380 2450 2450
Turning Radius mm 3500 3500 3980 3900
Wheelbase mm 1850 1850 1850 1950
Wheel Distance Front mm 1330 1330 1570 1570
Rear mm 1400 1400 1400 1400
Min.Ground Clearance mm 280 280 300 300
Speed Travel Load Km/h 25 25 25 25
Without load Km/h 30 30 30 30
Lift  Load mm/s 400 400 400 400
Without load mm/s 450 450 450 450
Fall Load mm/s 420 420 420 420
Without load mm/s 380 380 380 380
Max.gradeability Load/Without Load % 35/40 35/40 35/40 35/40
Weight kg 5350 5550 3200 7050
Battery Voltage/Capacity V/AH 24/60 24/60 24/60 24/60
Engine Model   Xinchai4D35G Xinchai4D35G Xinchai4D35G Xinchai4D35G
Rated Power/Speed kW/rpm 45/2400 45/2400 45/2400 45/2400
Max.torque/Speed N.m/rp 200/1500-1800 200/1500-1800 200/1500-1800 200/1500-1800
Number Of Cylinders   4 4 4 4
Displacement   3.17 3.17 3.17 3.17
