4-20m Push Around Vertical Mast Lift ZPML Series

Push around Vertical Mast lift Equipment is a manually propelled aerial work platform, which includes various types such as single-mast, double-mast, triple-mast and quadruple-mast. It is mainly positioned for vertical aerial work in narrow spaces. Its design purpose is to meet the needs of users for aerial maintenance, installation and repair in some space-limited places, such as warehouses and retail stores.

  • Model No :

    ZPML04-ZPML20
  • Platform Capacity :

    100-300kg
  • Maximum Working Height :

    6-22m
  • Power Type :

    Semi-Electric
  • MOQ :

    2
  • Lead Time :

    7-15 Days

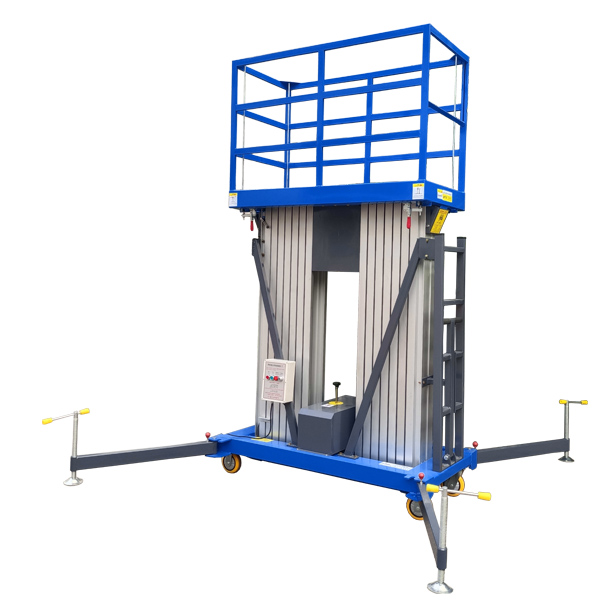

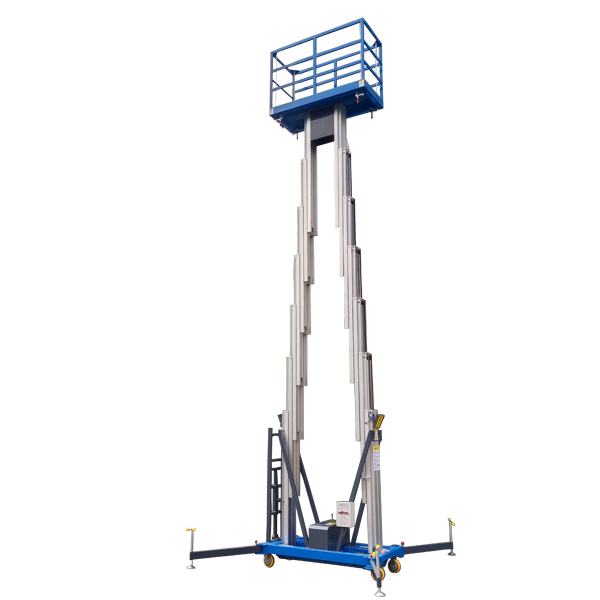

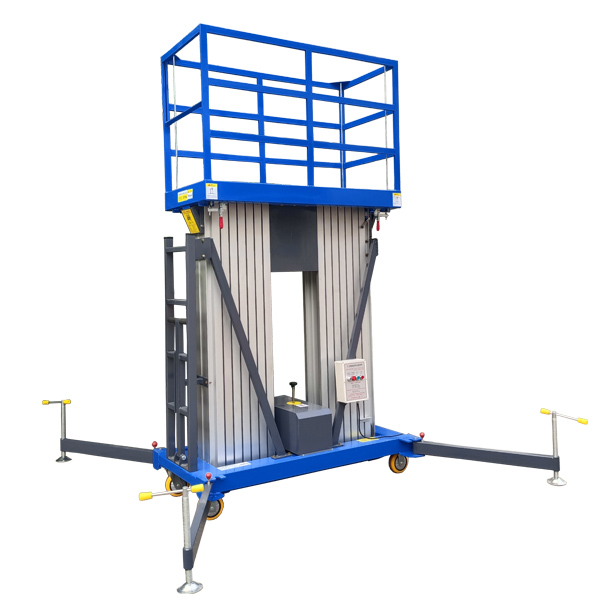

4-20m Push Around Vertical Mast Lift
Aluminum Alloy Lifting Platform adopts an aluminum alloy mast structure, featuring a small overall volume and light weight, which makes it convenient to move and operate in confined spaces. Push Around Vertical Mast Lift is usually equipped with a proportional joystick control system, allowing operators to easily control the lifting and lowering of the platform. Moreover, the equipment can be manually pushed on the ground to the desired position. AWP Manual Mast Lift Platform mostly uses electric power (AC/DC) or battery power supply, having the advantages of being environmentally friendly and noiseless. It is generally equipped with safety devices such as guardrails, emergency stop buttons, and overload protection to ensure the safety of operators. Due to its characteristics of being compact, lightweight, easy to operate, and highly safe, Trailer-Mounted Vertical Mast Lift is widely applied in indoor commercial venues, warehouses, industrial plants, public buildings, etc. According to the special needs of customers, special customization can be carried out for dimensions, load capacity, power supply, functions, and other aspects.


Details & Advantages

Vertical Mast Lift Push Around Type

1) Compact and lightweight: It adopts an aluminum alloy mast structure, with a small overall volume and light weight, making it convenient to move and operate in narrow spaces.

2) Easy to operate: Equipped with a proportional joystick control system, operators can accurately and easily control the lifting and lowering of the platform. At the same time, the equipment can be manually pushed on the ground to the desired position.

3) Environmentally friendly and energy-efficient: It mostly uses electric power (AC/DC) or battery power supply, and has the advantages of being environmentally friendly and noiseless, making it suitable for use in indoor places with high environmental requirements.

4) High safety: It is equipped with a variety of safety devices such as guardrails, emergency stop buttons, and overload protection.

5) Precise positioning: It can accurately control the height in the vertical direction to meet the operation requirements at different heights, and can accurately position the location where maintenance, installation or repair is required, improving work efficiency and accuracy.

6) Strong adaptability: It is suitable for a variety of different working scenarios, including indoor commercial venues, warehouses, industrial plants, public buildings, etc.

7) High degree of customization: Special customization can be carried out for dimensions, load capacity, power supply, functions, etc.


FAQ

1) What is terms of payment?

T/T, 30% deposit, 70% balance paid before shipment.

2) What is the inspection method?

Product photos, packaging, videos, and any other inspection methods required by customers.

3) How is the product packaged?

Naked, packaging film, wooden box, iron frame, and other required packaging methods.

4) How long is the warranty period?

18 months. Spare parts are provided free of charge during the warranty period.

Technical Parameter

Model ZPML08 ZPML10 ZPML12 ZPML14 ZPML16
Max Working Height 10m 12.4m 14m 16m 18m
Max Platform Height 8m 10.4m 12m 14m 16m
Platform Capacity 250kg 250kg 200kg 200kg 150kg
Occupants 2 2 2 2 1
Platform Size (L*W) 1.45m*0.7m 1.45m*0.7m 1.45m*0.7m 1.8m*0.7m 1.8m*0.7m
Overall Size(L*W*H) 1.48m*0.76m*1.99m 1.48m*0.76m*1.99m 1.48m*0.76m*1.99m 1.88m*0.88m*2.68m 1.88m*0.88m*2.68m
Outrigger Coverage 2.2m*1.7m 2.5m*2.1m 2.8m*2.5m 3.2m*2.5m 3.2m*2.5m
